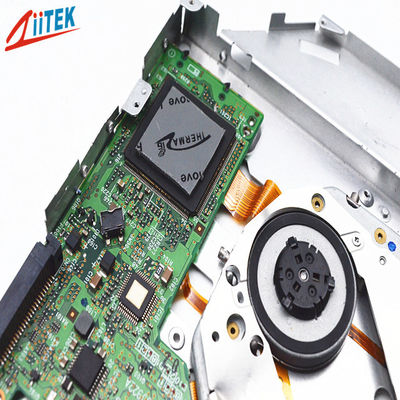

ULTRA SOFT 25 SHORE00 Gray 7W/MK Silicone Thermal Pad TIF700HZ For Automotive Electronics

ULTRA SOFT 25 SHORE00 Gray 7W/MK Silicone Thermal Pad TIF700HZ For Automotive Electronics

  • ULTRA SOFT 25 SHORE00 Gray 7W/MK Silicone Thermal Pad TIF700HZ For Automotive Electronics
  • ULTRA SOFT 25 SHORE00 Gray 7W/MK Silicone Thermal Pad TIF700HZ For Automotive Electronics
  • ULTRA SOFT 25 SHORE00 Gray 7W/MK Silicone Thermal Pad TIF700HZ For Automotive Electronics
ULTRA SOFT 25 SHORE00 Gray 7W/MK Silicone Thermal Pad TIF700HZ For Automotive Electronics
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF700HZ Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*23*12cm cantons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Flame Rating: 94 V0 Operating Temp: -40~200℃
Free Samples: Yes Model: TIF700HZ Series
Origin: Dongguan, China Applications: PCB,LED,Set Top Boxes,CPU
Brand: Ziitek
High Light:

7W/MK Silicone Thermal Pad

,

Automotive Electronics Silicone Thermal Pad

,

Silicone Thermal Pad Gray

Popular ULTRA SOFT 25 SHORE00 Gray 7W/MK Silicone Thermal Pad TIF700HZ For Automotive Electronics

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.



TIF700HZ Series is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.


Features
> Soft and compressible for low stress applications : 7W/mK
> Broad range of hardnesses available
> Outstanding thermal performance
> Naturally tacky needing no further adhesive coating
> UL recognized

> RoHS compliant

>High durability



Applications
Rainproof LED Power
Waterproof LED Power
SMD LED module
mainboard/mother board
LED PanelLight
Heat pipe thermal solutions
routers








                                            Typical Properties of TIF700HZ Series

Color
Gray
Visual
Composite Thickness
Thermal Impedance @10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20
Specific Gravity
3.3 g/cc
ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness range 0.020"-0.200"
ASTM C351
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness
25 Shore 00
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Dielectric Breakdown Voltage



>5500 VAC
ASTM D412
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Operating Temp



-40 ~160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Outgassing(TML)
0.30%
ASTM E595
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant
4.5 MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20



Volume Resistivity
5.2X1013
Ohm-cm
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity
7.0W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470



Standard Sheets Sizes:

8" x 16"(203mm x 406mm)



TIF™ series Individual die cut shapes can be supplied.



Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated







Advantage



Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.



Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.





Q&A



Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online





Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.



ULTRA SOFT 25 SHORE00 Gray 7W/MK Silicone Thermal Pad TIF700HZ For Automotive Electronics  0



TIF700HZ Series Datasheet-(E)-REV01.pdf
