Place of Origin: | China |
Brand Name: | Ziitek |
Certification: | UL |
Model Number: | TIF180-30-11ES thermal pad |
Minimum Order Quantity: | 1000 pcs |
---|---|
Price: | 0.1-10 USD/PCS |
Packaging Details: | 25*24*13cm canton |
Delivery Time: | 3-8 work days |
Payment Terms: | T/T |
Supply Ability: | 100000pcs/month |
Hardness: | 12 Shore00 | KEYWORD: | Gray Silicone Rubber Pads |
---|---|---|---|
Color: | Gray | Part Number: | TIF180-30-11ES |
Material: | Silicone | Thickness: | 2.0mmT |
High Light: | new developed thermal conductive gap filler,gray thermal conductive gap filler,3.0W/mK thermal conductive gap filler |

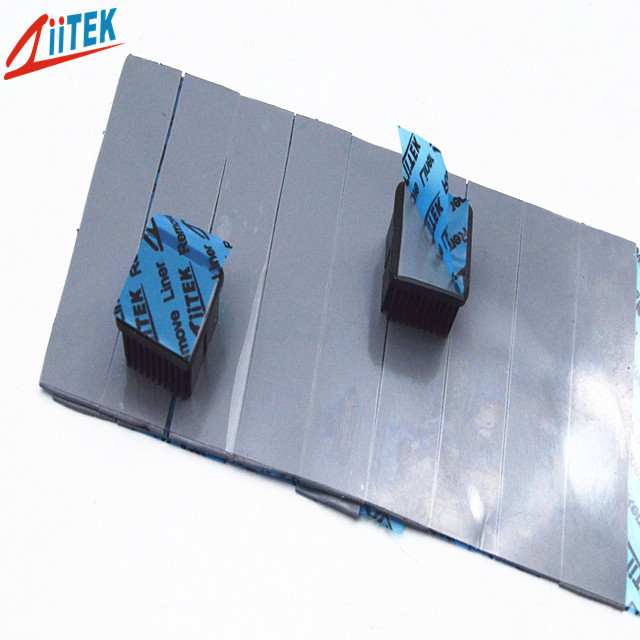

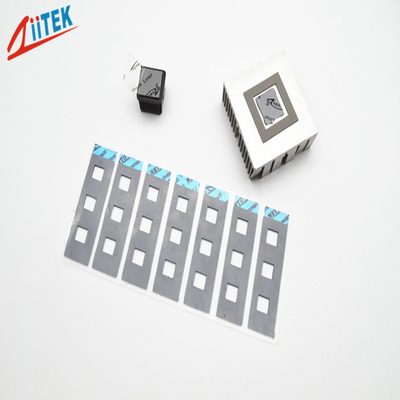

new developed thermal conductive gap filler for silicone sheets ,Outstanding thermal performance:3.0W/mK
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
TIF100-30-11ES-Datasheet-REV02.pdf
<Moldability for complex parts
<High tack surface reduces contact resistance
<Audio and video components
<IT infrastructure
<GPS navigation and other portable devices
<CPU
<display card
<mainboard/mother board
<notebook
Typical Properties of TIF180-30-11ES
|
|||
Product Name
|
TIF180-30-11ES Series
|
||
Colour
|
gray | ||
Construction & Compostion
|
Ceramic filled silicone elastomer
|
||
Specific gravity |
2.9 g/cc
|
||
Thickness |
2.0mmT
|
||
Hardness
|
12 Shore 00
|
||
Dielectric constant@1MHz
|
4.0 MHz
|
||
Continuos Use Temp
|
-40to 160℃
|
||
Dielectric Breakdown Voltage
|
>5500 VAC
|
||
Thermal conductivity
|
3.0 W/mK
|
||
Volume Resistiviyt |
1.0*1012 Ohm-cm |
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
