| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF140N-40-10F thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Continuos Use Temp: | -40 To 160℃ | Material: | Silicone |
|---|---|---|---|
| Dielectric Breakdown Voltage: | >5500 VAC | Part Number: | TIF140N-40-10F |
| Keyword: | Thermal Gap Pad | Name: | 4.7 MHz Gray RoHS Compliant Heat Sink Pad For Handheld Portable Electronics |
| High Light: | heat sink thermal pad 4.7 MHz,RoHS heat sink thermal pad,Handheld Portable Electronics heat sink pad |
||

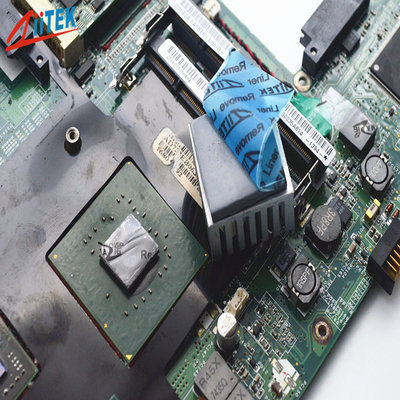

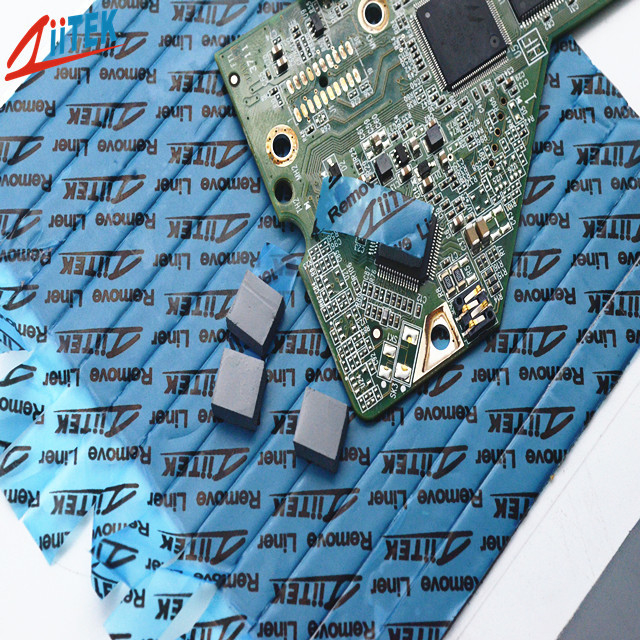

4.7 MHz Gray RoHS Compliant Heat Sink Pad for Handheld Portable Electronics
Company Profile
With professional R&D capabilities and over 17 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
Ziitek TIF140N-40-10F is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.
<Moldability for complex parts
<Outstanding thermal performance
<High tack surface reduces contact resistance
<Automotive engine control units
<Telecommunication hardware
<Handheld portable electronics
<Semiconductor automated test equipment (ATE)
<CPU
<display card
|
Typical Properties of TIF140N-40-10F
|
|||
| Product Name | TIF140N-40-10F Series | ||
| Colour | Gray | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
2.1 g/cm^3 |
||
| Thickness | 1.0mmT | ||
| Hardness | 55±5 Shore 00 | ||
| Dielectric constant@1MHz | 4.7 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 4.0W/mK | ||
| Volume Resistivity | 1.0*1012 Ohm-cm | ||
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
