| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF120N-50-10F thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Construction & Compostion: | Ceramic Filled Silicone Elastomer | Thermal Conductive: | 5.0W/mk |
|---|---|---|---|
| Keyword: | Thermal Gap Pad | Thickness: | 0.5mmT |
| Application: | GPS Navigation And Other Portable Devices | Name: | 5.0W/mk Outstanding Thermal Performance Silicone Pads For Set Top Boxes |
| High Light: | 5.0W/Mk heat sink thermal pad,0.5mm heat sink thermal pad,Set Top Boxes heat sink pad |
||
5.0W/mk Outstanding thermal performance silicone pads for Set top boxes
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
TIF100N-50-10F-Specification-sheet.pdf
Ziitek TIF120N-50-10F is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF120N-50-10F is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
<Moldability for complex parts
<Outstanding thermal performance
<High tack surface reduces contact resistance
<Automotive electronics

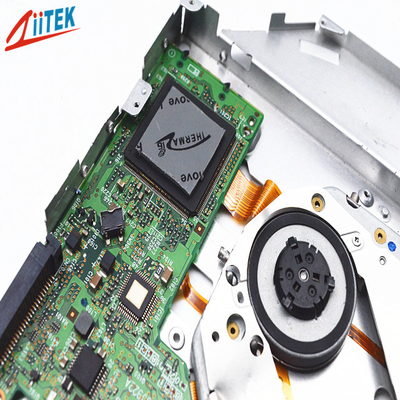

<Set top boxes
<Audio and video components
<IT infrastructure
<GPS navigation and other portable devices
<CD-Rom, DVD-Rom cooling
|
Typical Properties of TIF120N-50-10F
|
|||
| Product Name | TIF120N-50-10F Series | ||
| Colour | Gray | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
2.1 g/cm^3 |
||
| Thickness | 0.5mmT | ||
| Hardness | 55±5 Shore 00 | ||
| Dielectric constant@1MHz | 4.7 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 5.0W/mK | ||
| Flame Rating | 94-V0 | ||
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
