| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF7100M thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Continuos Use Temp: | -40 To 160℃ | Name: | -40 To 160℃ Thermal Pad Soft And Compressible For Mass Storage Devices |
|---|---|---|---|
| Dielectric Breakdown Voltage: | >5500 VAC | Keyword: | Thermal Gap Pad |
| Hardness: | 50 Shore 00 | Flame Rating: | 94-V0 |
| High Light: | 50 Shore 00 Thermal Pad,94-V0 Soft Thermal Pad,Heatsink Thermal Gap Pad |
||

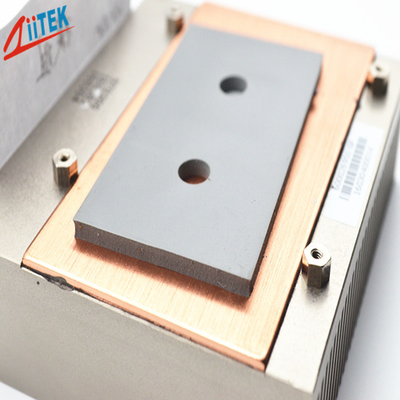

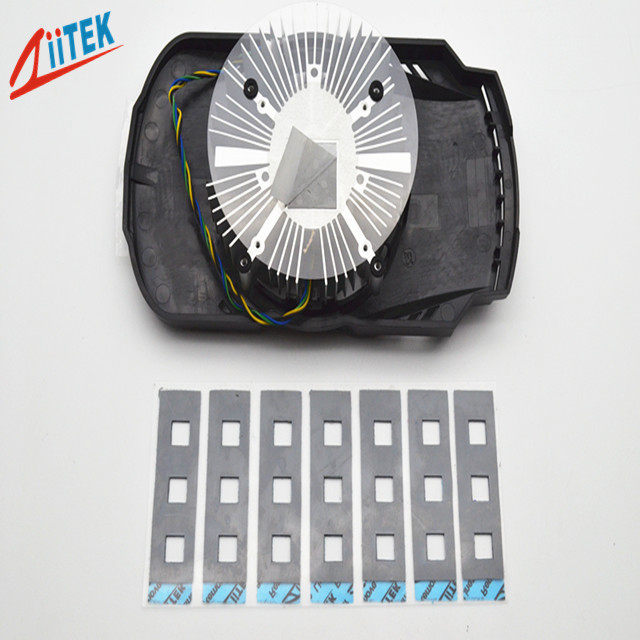

-40 to 160℃ Thermal Pad Soft and Compressible for Mass Storage Devices
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
TIF700M-Series-Datasheet.pdf
Ziitek TIF7100M thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.
<Moldability for complex parts
<Soft and compressible for low stress applications
<Naturally tacky needing no further adhesive coating
<mainboard/mother board
<notebook
<power supply
<Heat pipe thermal solutions
<Memory Modules
<Mass storage devices
|
Typical Properties of TIF7100M
|
|||
| Product Name | TIF7100MSeries | ||
| Colour | Grey | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
3.25 g/cc |
||
| Thickness | 2.5mmT | ||
| Hardness | 50 Shore 00 | ||
| Dielectric constant@1MHz | 4.2 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 6.0W/mK | ||
| Flame Rating | 94-V0 | ||
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
