| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF7120M thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Hardness: | 50 Shore 00 | Flame Rating: | 94-V0 |
|---|---|---|---|
| Keyword: | Thermal Gap Pad | Name: | Outstanding Thermal Performance Conductive Pads For DVD-Rom Cooling |
| Dielectric Breakdown Voltage: | >5500 VAC | Continuos Use Temp: | -40 To 160℃ |
| High Light: | 3.0mm Thermal Conductive Pads,DVD Rom Cooling Thermal Pads,Conductive Heat Sink Thermal Pad |
||

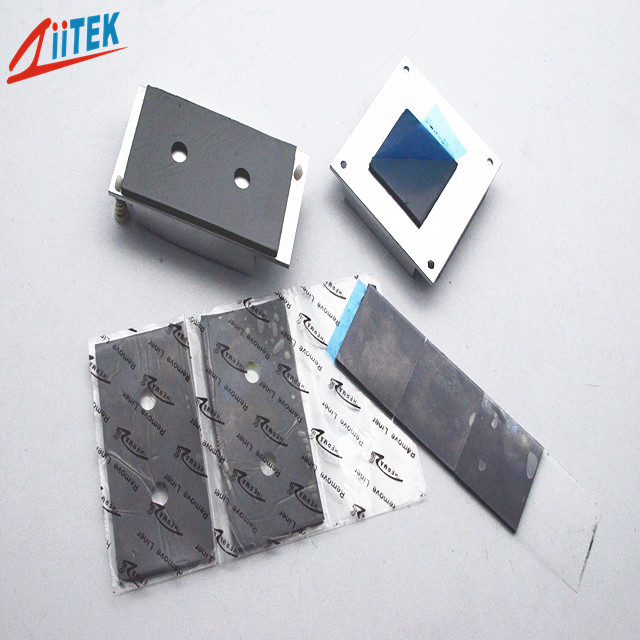

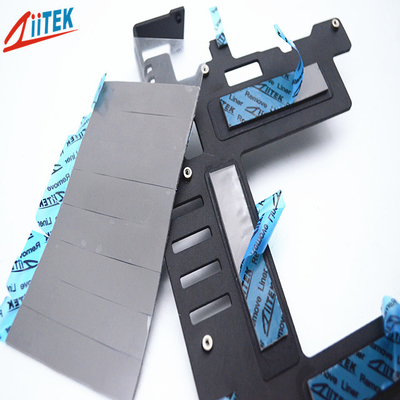

Outstanding Thermal Performance Conductive Pads for DVD-Rom Cooling
Company Profile
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
TIF700M-Series-Datasheet.pdf
Ziitek TIF7120M thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.
< Moldability for complex parts
< Outstanding thermal performance
< High tack surface reduces contact resistance
< Automotive electronics
< Set top boxes
< Audio and video components
< IT infrastructure
< GPS navigation and other portable devices
< CD-Rom, DVD-Rom cooling
|
Typical Properties of TIF7120M
|
|||
| Product Name | TIF7120MSeries | ||
| Colour | Grey | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
3.25 g/cc |
||
| Thickness | 3.0mmT | ||
| Hardness | 50 Shore 00 | ||
| Dielectric constant@1MHz | 4.2 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 6.0W/mK | ||
| Flame Rating | 94-V0 | ||
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
Contact Person: Miss. Dana
Tel: +86 18153789196
