| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF7120L-HM thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Name: | Electrically Isolating Silicone Thermal Interface Materials For LED Street Lamp | Keyword: | Heat Sink Pad |
|---|---|---|---|
| Specific Gravity: | 3.3 G/cm^3 | Hardness: | 30 Shore 00 |
| Part Number: | TIF7120L-HM | Thickness: | 3.0mmT |
| High Light: | Silicone Thermal Interface Materials,LED Lamp Silicone Thermal Pad,3.0mm Silicone Thermal Interface Materials |
||
Electrically Isolating Silicone Thermal Interface Materials For LED Street Lamp
Company Profile
With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.
TIF700L-HM-Series-Datasheet-REV02.pdf

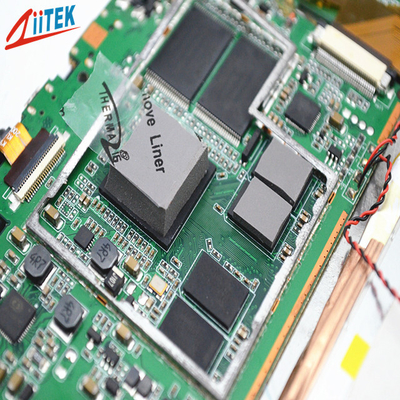

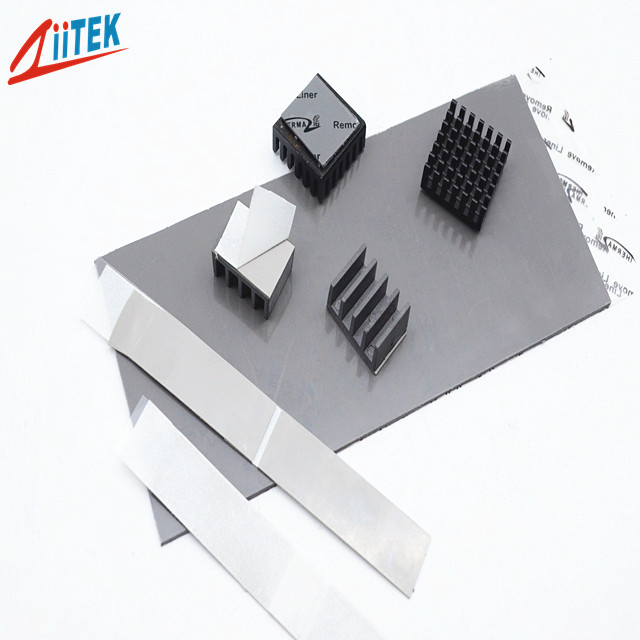

Ziitek TIF7120L-HM is a highly compliant Gap Pad material that is ideal for fragile component leads. The material is fiberglass reinforced for improved puncture resistance and handling Ziitek TIF7120L-HM maintains a conformable, yet elastic nature that provides excellent interfacing and wet-out characteristics, even to surfaces with high roughness or uneven topography. Ziitek TIF7120L-HM features an inherent tack on both sides of the material, eliminating the need for thermally impeding adhesive layers.Options and ConfigurationsStandard sheet size - 8" x 16" or custom configuration Standard thickness available - 0.020", 0.040", 0.060", 0.080", 0.100", 0.125", 0.160", 0.200", 0.250"Custom made configurations available upon request
< Moldability for complex parts
< Outstanding thermal performance
< High tack surface reduces contact resistance
< Cooling components to the chassis of frame
< High speed mass storage drives
< Heat Sinking Housing at LED-lit BLU in LCD
< LED TV and LED-lit lamps
< RDRAM memory modules
< Micro heat pipe thermal solutions
|
Typical Properties of TIF7120L-HM
|
|||
| Product Name | TIF7120L-HM Series | ||
| Colour | Grey | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity |
3.3 g/cc |
||
| Thickness | 3.0mmT | ||
| Hardness | 30 Shore 00 | ||
| Dielectric constant@1MHz | 4.5 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 6.0W/mK | ||
| Flame Rating | 94-V0 | ||
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
FAQ
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge
