Name: Thermally Conductive Plastics Granules Raw Material For LED Light Housing
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TCP100-07-06A
Price: 4.10 USD
Availability: InStock

Home Products Heat Conductive Plastic

Thermally Conductive Plastics Granules Raw Material For LED Light Housing

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TCP100-07-06A

Payment & Shipping Terms:

Minimum Order Quantity:	10kg
Price:	USD 0.1-10/kg
Packaging Details:	25kg/bag
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000pcs/month

Contact Now

Detailed Product Description

Products Name:	Thermally Conductive Plastics Granules Raw Material For LED Light Housing	Keyword:	Thermally Conductive Plastic
Specific Gravity:	1.5 G/cm3	Application:	LED Light Housing
Heat Deflection Temperature:	180℃	Thermal Conductivity:	0.7W/m-K
Feature:	Lighter Than Normal Aluminum Housing
Highlight:	LED Light Housing plastics granules , Thermally conductive plastics granules raw material , Thermally Conductive Plastics Granules

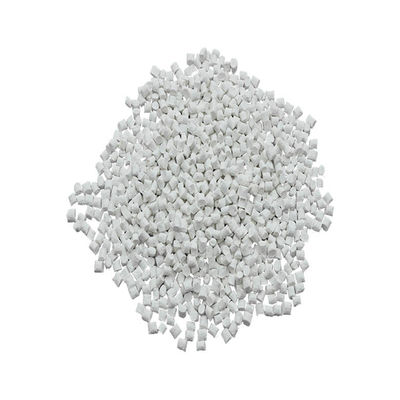

Thermally conductive plastics granules raw material For LED Light Housing

TCP^TM100-07-06A is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.

TCP100-07-06A (2).pdf

Thermally Conductive Plastics Granules Raw Material For LED Light Housing 0

Application

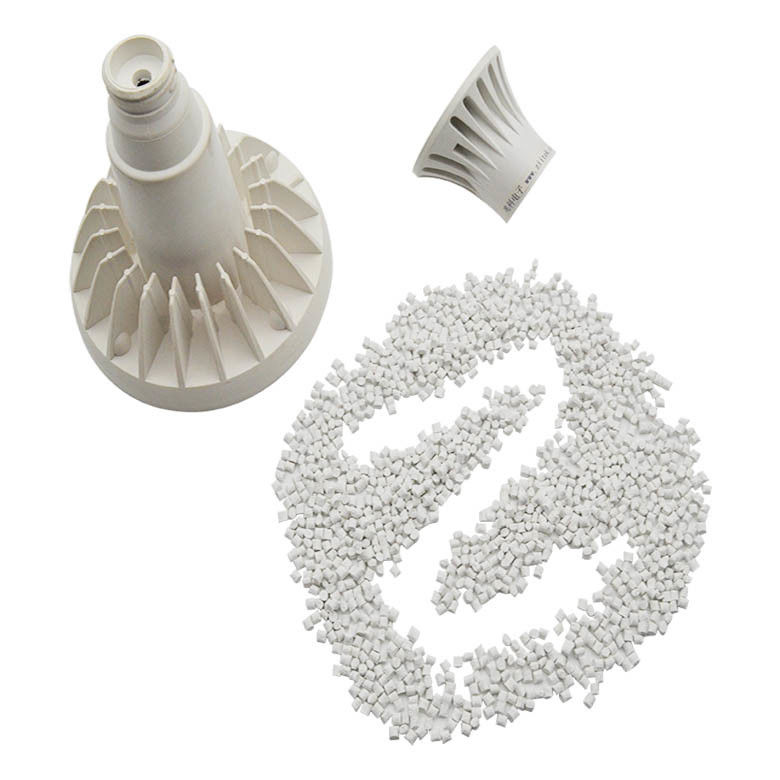

TCP™100-07-06A can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink.

Features

> Good thermal conductivity:0.7W/mK
> Excellent thermal conductivity compared to normal engineering plastics
> Lighter than normal Aluminum housing 30% in weight
> Excellent mould ability in injection moulding
> Much higher production yield than normal Aluminum Die Casting.
> Excellent flexibility in designing final products such as housings.

Typical Properties of TCP^TM100-07-06A
Items	Test method	Unit	Typical data
Physical Properties
Material	*****		Nylon
Color	Visual	*****	White
Melt index	ASTM 1238	g/10min	80
Specific Gravity	ASTM D792	g/cm3	1.5
Shrinkage	ASTM D955	%	0.2~0.5
Mechanical Properties
Tensile Strength	ASTM D638	MPa	39.55
Flexural Strength	ASTM D790	MPa	45.5
Flexural Modulus	IASTM D638	MPa	9500
Impact Strength, notched	ASTM D256	kJ/m²	5.3
Electrical Properties
Dielectric Breakdown Voltage	ASTM D149	KV/mm	>5.5
Dielectric Constant, 1MHz	ASTM D150	*****	4.5
Volume Resistivity	ASTM D257	Ohm-meter	8.0 X 10¹²
Thermal Properties
Heat Deflection Temperature	ASTM D648	℃	180
Thermal Conductivity Throngh Plane	ASTM E5470	W/m-K	0.7
Flame retardancy	Min. thick. 1.0mm	Class	V-0

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract
