| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF1200-05UF thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Feature: | Easy Release Construction | Name: | High Durability Blue Heat Sink Pad For Telecommunication Hardware |
|---|---|---|---|
| Thickness: | 5.0mmT | Color: | Blue |
| Hardness: | 75 Shore 00 | Keyword: | Thermal Gap Pad |
| High Light: | High Durability Heat Sink Thermal Pad,Telecommunication Hardware Heat Sink Thermal Pad,Blue Thermal Pad For Heat Sink |
||

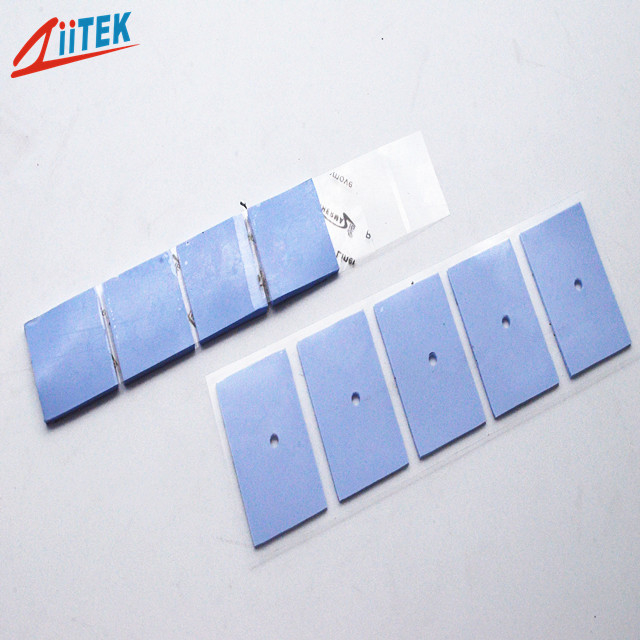

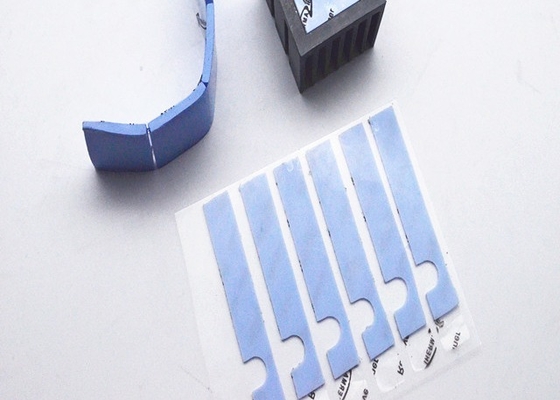

High Durability Blue Heat Sink Pad for Telecommunication Hardware
Company Profile
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
TIF100-05UF-Datasheet-REV02.pdf
Ziitek TIF1200-05UF thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.
<Easy release construction
<Electrically isolating
<High durability
<Automotive engine control units
<Telecommunication hardware
<Handheld portable electronics
<Semiconductor automated test equipment (ATE)
<CPU
<display card
|
Typical Properties of TIF1200-05UF
|
|||
| Product Name | TIF1200-05UF Series | ||
| Colour | Blue | ||
| Construction & Compostion | Ceramic filled silicone elastomer | ||
| Specific gravity | 2.2 g/cc | ||
| Thickness | 5.0mmT | ||
| Hardness | 75 Shore 00 | ||
| Dielectric constant@1MHz | 3.9 MHz | ||
| Continuos Use Temp | -40 to 160℃ | ||
| Dielectric Breakdown Voltage | >5500 VAC | ||
| Thermal conductivity | 1.5 W/mK | ||
| Volume Resistivity | 1.0*1012 Ohm-cm | ||
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Independent R&D team
