| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL & RoHS |
| Model Number: | TIF600 Series |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 24*23*12cm cantons |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 pcs/month |
| Keyword: | LED Silicone Thermal Pad | Rated Voltage:: | >10kv |
|---|---|---|---|
| Thermal Conductivity: | 3 W/mK | Feature: | Customized Size |
| Products Name: | Thermally Conductive Interface Pads | Using Temp: | – 40 To 160 ℃ |
| High Light: | gap filler pad,thermal cooling pad |
||

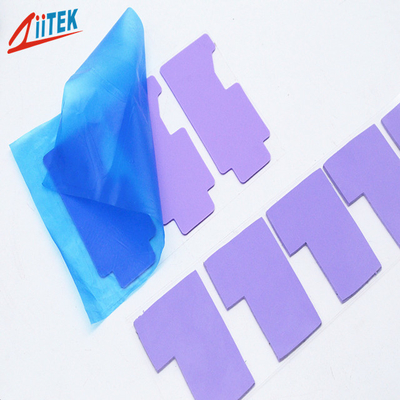

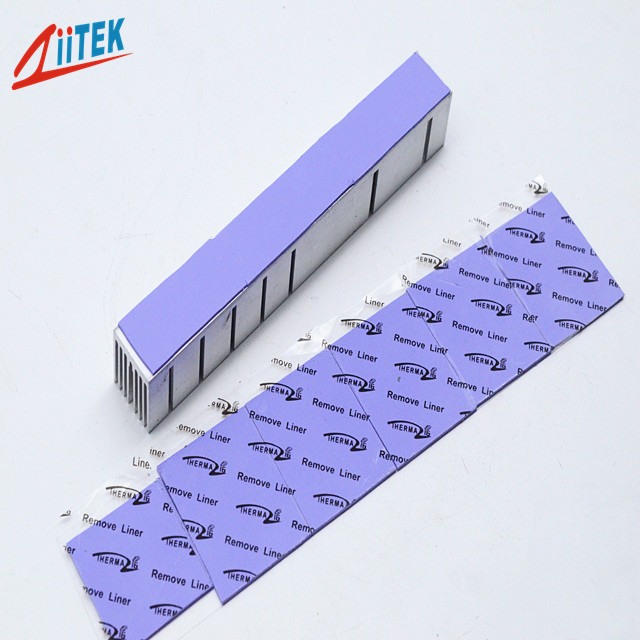

LED thermal silicone pad 4.7 W high thermal conductivity Thermal Conductive Pad
The TIF™600 Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
Features
> Good thermal conductive: 4.7 W/mK
> Naturally tacky needing no further adhesive coating
> Soft and Compressible for low stress applications
> Available in varies thickness
Applications

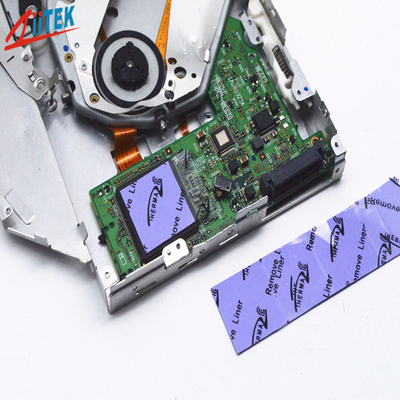

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
| |||||
| Color | Blue / Violet | Visual | Dielectric Breakdown Voltage (T= 1mm above) | >5000 VAC | ASTM D149 |
| Construction | Ceramic filled silicone elastomer | ********** | Dielectric Constant | 7.5 MHz | ASTM D150 |
| Thermal Conductivity | 4.7W/mK | ASTM D5470 | Volume Resistivity | 8.0X1013 Ohm-meter | ASTM D257 |
| Hardness | 45 Shore 00 | ASTM 2240 | Continuous Use Temp | – 40 To 160 ℃ | ********** |
| Specific Gravity | 2.88g/cc | ASTM D297 | Outgassing (TML) | 0.35% | ASTM E595 |
| Thickness range | 0.010"-0.200" (0.25mm-5.0mm) | ASTM D374 | Flame Rating | 94 V0 | UL E331100 |
Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.
Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.
Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
