| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | RoHS |
| Model Number: | TIA600P |
| Minimum Order Quantity: | 1000rolls |
|---|---|
| Price: | 0.1-10 USD/pcs |
| Packaging Details: | 24*23*12cm |
| Delivery Time: | 3-6 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000rolls/month |
| Fire Rating: | Equate 94V-0 | Keywords: | Thermally Conductive Adhesive Tape |
|---|---|---|---|
| Adhesive Type: | Acrylic Adhesive | Thikcness: | 0.13-0.25mm |
| Application: | LED CPU GPU Heat Transfer | Material: | Double Sided Acrylic Adhesive Thermal Tape |
| High Light: | heat transfer adhesive tape,laptop thermal tape,0.25mm Double Sided Thermal Tape |
||

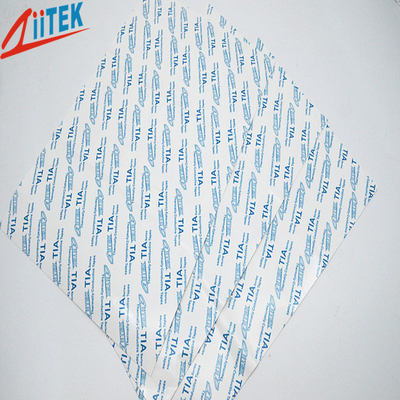

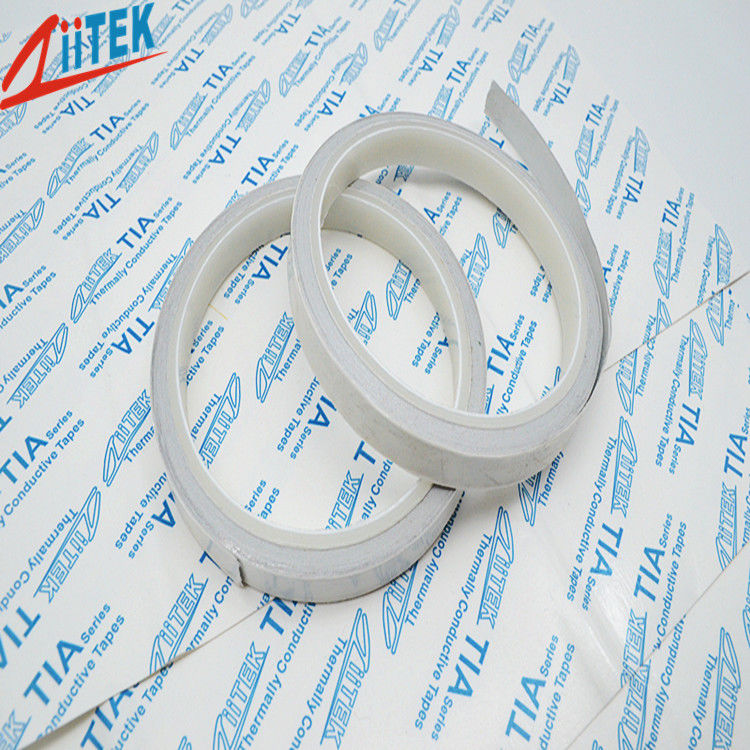

Double Sided Thermal Adhesive Tape for LED CPU GPU Heat Transfer Tapes
Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.
The TIA™600P Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.
TIA600P Series Datasheet-(E)-REV01.pdf
Features
Thermal Conductivity: 0.8 W/mK
High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
High performance, thermally conductive acrylic adhesive
Fire rating equate 94 V0
Applications
Mount heat sink onto BGA graphic processor or drive processor
Mount heat spreader onto power converter PCB or onto motor control PCB
High performance, thermally conductive acrylic adhesive
Can be used instead of heat cure adhesive,screw mounting or clip mounting
|
Typical Properties of TIATM600P Series
|
||||
| Typical Properties | TIA605P | TIA608P | TIA610P | test way |
| Color | White | visible | ||
| Adhesive Type | Acrylic Adhesive | ********** | ||
| Backing Type | PET | ********** | ||
|
Continuous Use Temp |
-45 °C to 120 °C | ********** | ||
| Thickness | 0.005" 0.127mm | 0.008" 0.203mm | 0.010" 0.254mm | ASTM D374 |
| Voltage Breakdown | > 1000 Vac | > 1200 Vac | > 1500 Vac | ASTM D149 |
| Thermal Conductivity | 0.8 W/mK | ASTM D5470 | ||
| 180°Peel Adhesion | > 1200 g/inch (Steel, Immediate) | PSTC-1 | ||
| 180°Peel Adhesion | > 1400 g/inch (Steel after 24 hrs) | PSTC-1 | ||
| Holding Power (25 °C/Hours) | > 48 Hours | PSTC-7 | ||
| Holding Power (80 °C/Hours) | > 48 Hours | PSTC-7 | ||
| Fire rating | equate 94 V0 | ***** | ||
Standard Thicknesses:
0.005"(0.127mm) 0.008"(0.203mm) 0.010"(0.254mm)
Consult the factory alternate thickness.
Standard Sizes:
40" x 100'(1016mm x 30.48M) Individual die cut shapes can be supplied.
Reinforcement:
TIA™600P series The coil can be filled with PET.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
