Heat Resistant Double Sided LED Light Thermal Conductive Adhesive Tape
Dongguan Ziitek Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.
The TIA®800 Series is filled with good thermal conductivity ceramic particles, featuring excellent thermal conductivity, strong adhesion and electrical insulation. It is suitable for bonding and fixing electronic components to heat sinks or housings, such as LED modules, power devices, communication equipment and other scenarios. The product is solvent-free, pollution-free, easy to construct, and can replace the traditional combination scheme of screw fixation and thermal conductive grease.
Features
> Thermal Conductivity: 0.8 W/mK
> High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive
Applications
> Mount heat sink onto BGA graphic processor or drive processor
> Mount heat spreader onto power converter PCB or onto motor control PCB
> High performance, thermally conductive acrylic adhesive
> Can be used instead of heat cure adhesive,screw mounting or clip mounting
| Typical Properties of TIA®800 Series |
| Product Name |
TIA®802 |
TIA®804 |
TIA®806 |
TIA®808 |
TIA®810 |
TIA®812 |
TIA®815 |
Test Method |
| Color |
White |
Visual |
| Adhesive Type |
Acrylic Adhesive |
****** |
| Continuous Use Temp |
-40℃ to 125℃ |
****** |
| Thickness |
0.002" 0.05mm |
0.004" 0.10mm |
0.006" 0.15mm |
0.008" 0.20mm |
0.010" 0.25mm |
0.012" 0.30mm |
0.015" 0.38mm |
ASTM D374 |
| Voltage Breakdown |
≥600 |
≥1200 |
≥1800 |
≥2500 |
≥2700 |
≥3000 |
≥4000 |
ASTM D149 |
| Thermal Conductivity |
0.8 W/mK |
ASTM D5470 |
| 180° Peel Adhesion (gf/inch) Steel, Immediate |
≥ 1200 |
ASTM D3330 |
| 180° Peel Adhesionk (gf/inch) Steel, 24 hrs |
≥ 1400 |
ASTM D3330 |
| Holding Power (H/inch) @25℃ |
≥ 48 Hours |
ASTM D3654 |
| Holding Power (H/inch) @80℃ |
≥ 48 Hours |
ASTM D3654 |
Product Specifications
Standard Thickness:
0.002"(0.05 mm), 0.004"(0.10 mm), 0.006"(0.15 mm),
0.008"(0.20 mm), 0.010"(0.25 mm),0.012"(0.30mm), 0.015"(0.38mm)
Standard Size: 16" x 100" (406 mm x 30.48 M)
Reinforcing Carrier: TIA®800 Series rolls can be reinforced with glass fiber.

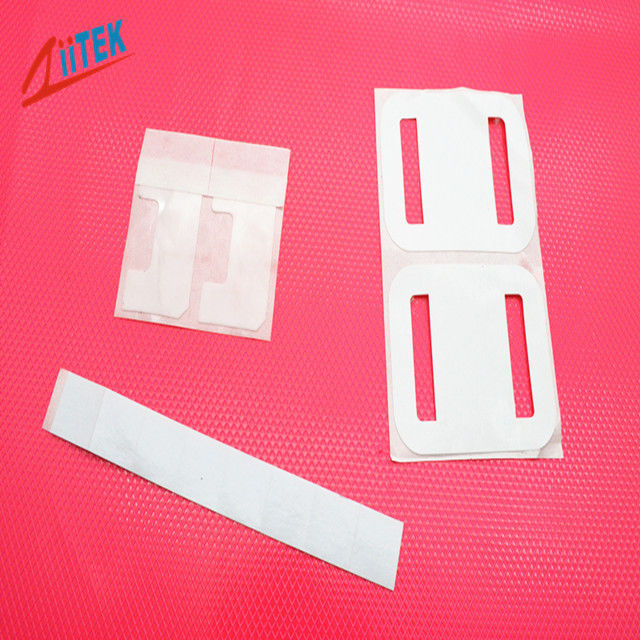

The TIA® series can be provided with die-cutting into vaious shapes, For different thicknesses or more information about
thermally conductive materials, please contact our company.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
