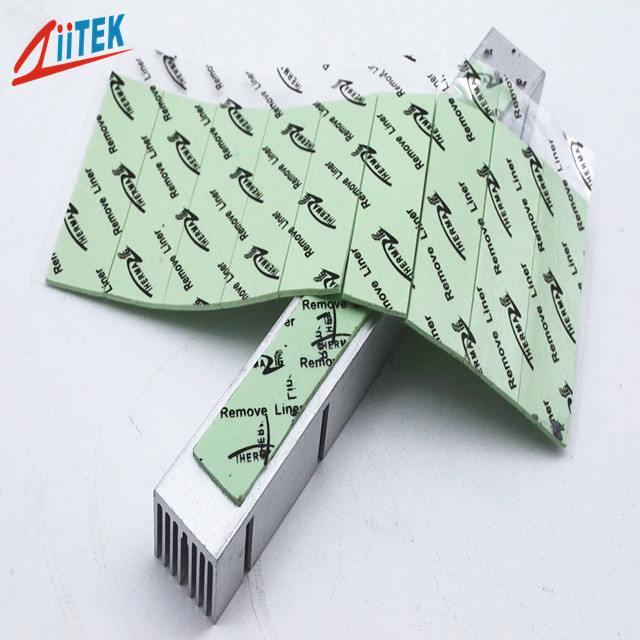

1.5W/MK Ceramic Filled Silicone Rubber Thermal Insulation Pad 35 Shore 00(high cost-effective )

1.5W/MK Ceramic Filled Silicone Rubber Thermal Insulation Pad 35 Shore 00(high cost-effective )

  • 1.5W/MK Ceramic Filled Silicone Rubber Thermal Insulation Pad 35 Shore 00(high cost-effective )
  • 1.5W/MK Ceramic Filled Silicone Rubber Thermal Insulation Pad 35 Shore 00(high cost-effective )
  • 1.5W/MK Ceramic Filled Silicone Rubber Thermal Insulation Pad 35 Shore 00(high cost-effective )
1.5W/MK Ceramic Filled Silicone Rubber Thermal Insulation Pad 35 Shore 00(high cost-effective )
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF1120-07E Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*23*12cm cantons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Thickness Range: 0.020”(0.5mm)-0.200”(5.0mm) Specific Gravity: 2.3 G/cc
Dielectric Breakdown Voltage: >5500 VAC Thermal Conductivity: 1.5W/m-K
High Light:

1.5W/MK Thermal Insulation Pad

,

Ceramic Filled Thermal Insulation Pad

,

35 shore 00 thermal isolation pads

Ceramic Filled Silicone Rubber 1.5 W/mK thermal insulation pad TIF1120-07E, 35 Shore 00



Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.



The TIF1120-07E Series  is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.



Features
> Good thermal conductive: 1.5W/mK
> Outstanding thermal performance
> Naturally tacky needing no further adhesive coating
> Broad range of hardnesses available

> High tack surface reduces contact resistance


Applications
LED TV / LED Lit Lamps
> Micro heat pipe thermal solutions
>Automotive engine control units
> CPU

> Memory Modules

routers

Telecommunication hardware

> power supply

>Heat pipe thermal solutions

>GPS navigation and other portable devices




                                            Typical Properties of TIF1120-07E Series

Color
Green
Visual
Composite Thickness
Thermal Impedance @10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20
Specific Gravity
2.3 g/cc
ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness range 0.020"-0.200"
ASTM C351
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness
35 Shore 00
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Dielectric Breakdown Voltage



>5500 VAC
ASTM D412
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp



-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Outgassing(TML)
0.35%
ASTM E595
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant
4.7MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20



Volume Resistivity
1.0X10"
Ohm-meter
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity
1.5W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470

Standard Sheets Sizes:


8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.





Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated







Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.



1.5W/MK Ceramic Filled Silicone Rubber Thermal Insulation Pad 35 Shore 00(high cost-effective ) 0





Advantage



Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.





Ziitek Culture



Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.









A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: What is your terms of payment ?

A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.

TIF100-07E Datasheet-REV02.pdf
