Custom Silicone Thermal Insulation Pads Thermal Gap Filler For Auto Parts & Battery Pack Sealing

Custom Silicone Thermal Insulation Pads Thermal Gap Filler For Auto Parts&Battery Pack Sealing

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL

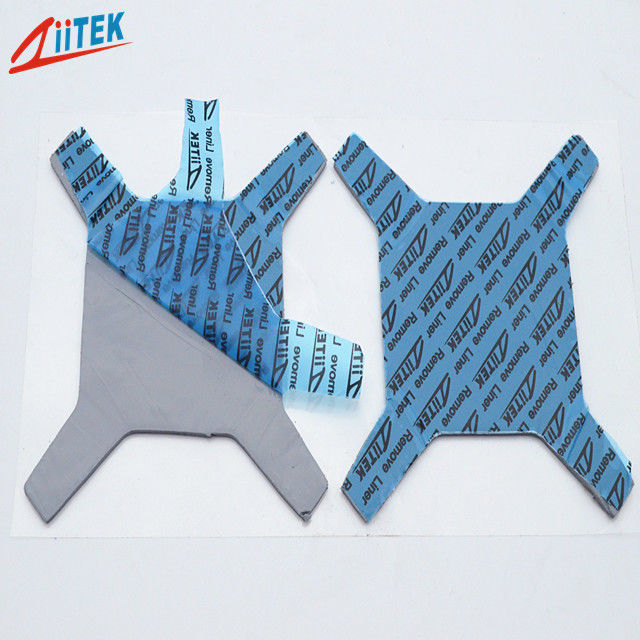

The TS-TIF ^®100C 8045-11 Series is a silicone-based thermal material designed to fill the gapsbetween heat-generating components and liquid cooling plates or metal bases. lts flexibility andelasticity make it ideal for covering highly uneven surfaces. With excellent thermal conductivity, itefficiently transfers heat from heat-generating elements or PCBs to liquid cooling plates or metalheat dissipation structures, thereby improving the cooling efficiency of high-power electroniccomponents and extending the lifespan of the equipment.

Features:
> Excellent thermal conductivity 6.5W/mK

> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating
> Available in varies thicknesses
> Broad range of hardnesses available

Applications:

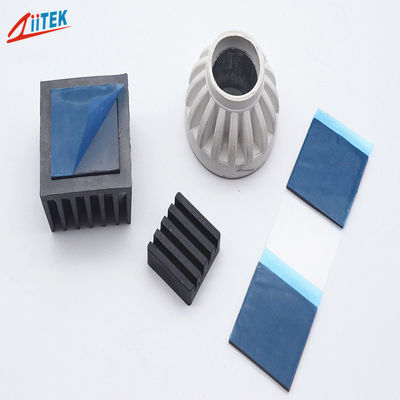

> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Monitoring the Power Box
> AD-DC Power Adapters
> Rainproof LED Power
> Waterproof LED Power
> SMD LED module

Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.



Product Specification:

Product Thicknesses: 0.012"(0.30mm)~0.200"(5.00mm)

Product Sizes: 8" x 16"(203mm x406mm)
Custom die-cut shapes and thicknesses are available.Please contact us for details.
Store in a cool, dry place, away from fire and sunlight.For more information, refer to the Material Safety Data Sheet .

Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated.



FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.



Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.



Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.
