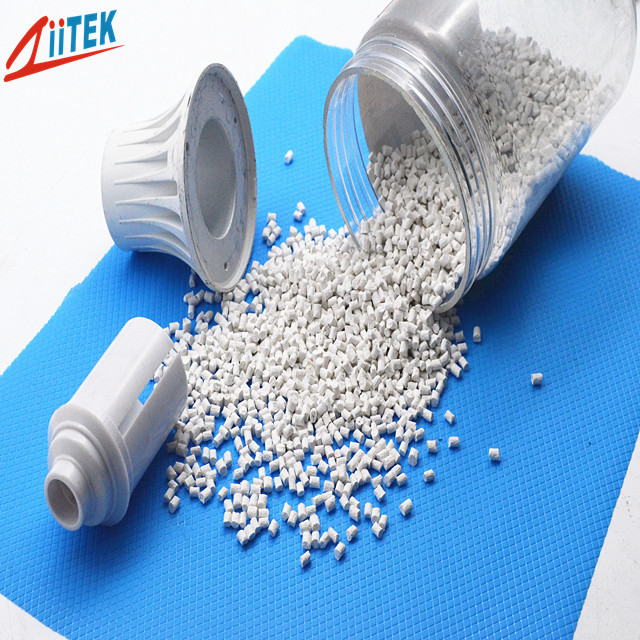

1.0mm Thick Thermally Conductive Plastic Heat Sink , GPU Thermal Conductive Plastic Raw Material

1.0mm Thick Thermally Conductive Plastic Heat Sink , GPU Thermal Conductive Plastic Raw Material

    • 1.0mm Thick Thermally Conductive Plastic Heat Sink , GPU Thermal Conductive Plastic Raw Material
    • 1.0mm Thick Thermally Conductive Plastic Heat Sink , GPU Thermal Conductive Plastic Raw Material
    • 1.0mm Thick Thermally Conductive Plastic Heat Sink , GPU Thermal Conductive Plastic Raw Material
  • 1.0mm Thick Thermally Conductive Plastic Heat Sink , GPU Thermal Conductive Plastic Raw Material

    Product Details:

    Place of Origin: China
    Brand Name: Ziitek
    Certification: RoHS
    Model Number: TCP100-01PP

    Payment & Shipping Terms:

    Minimum Order Quantity: 10kg
    Price: USD 0.1-10/kg
    Packaging Details: 25kg/bag
    Delivery Time: 3-5 work days
    Payment Terms: T/T
    Supply Ability: 1000000pcs/month
    Contact Now
    Detailed Product Description
    Shape: Grainy Thermal Conductivity: 1 W/mK
    Bake Temperature: 90-120℃ 4H Name: Thermal Conductive Plastic Raw Materials
    Feature: 120℃ Thermally Conductive Plastic Heat Sink Keywords: 1.0W/mK Thermal Conductive Plastic Raw Material

    Much higher production yield PP material 1.0W/mK thermal conductive plastic raw material for wireless routers



    TCP™100-01PP is a Thermally Conductive Engineering Plastic developed for the housing design which requires high thermally conductivity and reduces the weight more than 30% comparing with the same aluminium devices.


    Application


    TCP™100-01PP can be used in applications such as Heat Sinking Housing at LED-lit BLU in LCD/LED TV and LED-lit lamps such as MR16. Also it can replace the normal Aluminum heat sink.


    Features


    Good thermal conductivity: 1.0W/mK
    Excellent thermal conductivity compared to normal engineering plastics
    Lighter than normal Aluminum housing 30% in weight
    Excellent mould ability in injection moulding
    Much higher production yield than normal Aluminum Die Casting
    Excellent flexibility in designing final products such as housings.





    Typical Properties of TCPTM100-01PP



    Items Test method Unit Typical data
    Physical Properties
    Color Visual ***** White
    Melt index ISO 1133 g/10min 14.73
    Specific Gravity ISO 1183 g/cm3 1.55
    Shrinkage ISO 294 % 0.1
    Mechanical Properties
    Tensile Strength ISO 527 MPa 50
    Flexural Strength ISO 178 MPa 65
    Flexural Modulus ISO 178 MPa 12000
    Impact Strength, notched ISO 180 kJ/m2 3~4
    Electrical Properties
    Dielectric Breakdown Voltage ASTM D149 VAC >10000
    Dielectric Constant, 1MHz ASTM D150 ***** 4.5
    Volume Resistivity ASTM D257 Ohm-meter 7.0 X 1012
    Thermal Properties
    Heat Deflection Temperature ASTM D648 150
    Thermal Conductivity In Plane ASTM E1461 W/m-K 5
    Thermal Conductivity Throngh Plane ASTM E1461 W/m-K 1.0
    Flame retardancy Min. thick. 1.0mm Class V-0



    1.0mm Thick Thermally Conductive Plastic Heat Sink , GPU Thermal Conductive Plastic Raw Material

    a. Pre-Drying : 4 hrs. @ 80 by Hopper Dryer

    b. Recommendable Process Temperature at molding machine
    - Nozzie : 280
    - Front : 270
    - Middle : 260
    - Rear : 250
    c. Cycle time : 30sec

    1.0mm Thick Thermally Conductive Plastic Heat Sink , GPU Thermal Conductive Plastic Raw Material
