Hardness 50 Thermally Conductive Electrical Insulator LED Mass Production Fire Rating 94 V0 TIS100-05

Hardness 50 Thermally Conductive Electrical Insulator LED Mass Production Fire Rating 94 V0 TIS100-05

  • Hardness 50 Thermally Conductive Electrical Insulator LED Mass Production Fire Rating 94 V0 TIS100-05
  • Hardness 50 Thermally Conductive Electrical Insulator LED Mass Production Fire Rating 94 V0 TIS100-05
  • Hardness 50 Thermally Conductive Electrical Insulator LED Mass Production Fire Rating 94 V0 TIS100-05
Hardness 50 Thermally Conductive Electrical Insulator LED Mass Production Fire Rating 94 V0 TIS100-05
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHS
Model Number: TIS100-05
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13mm
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000 pcs/month
Contact Now
Detailed Product Description
Thickness: 0.23-0.45mmT Keywords: Mass Production Blue Silicone Thermal Insulation Interface Gap Pad
Feature: Silicone Thermal Insulation Sheet Compliance: RoHS
Color: Blue Name: LED Heatsink Thermal Conductive Insulator
High Light:

fiberglass insulation heat resistance

,

thermal insulation sheet

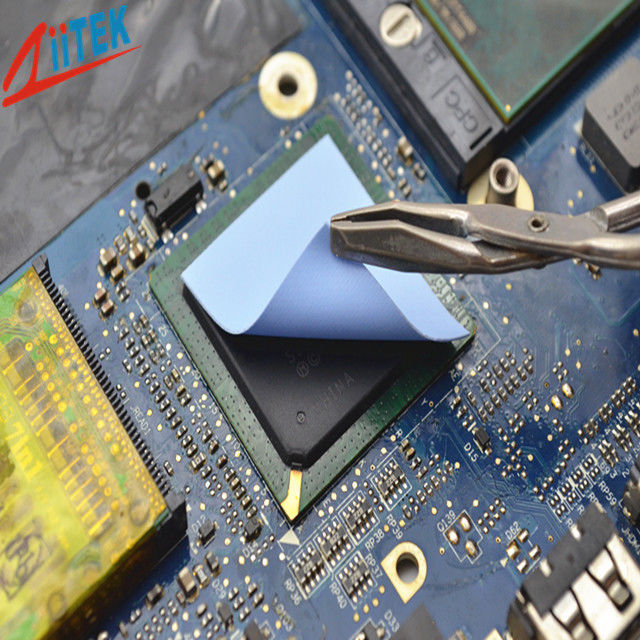

LED heatsink TIS100-05 mass production blue silicone thermal insulation interface gap pad



With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.



The TIS™100-05 Series products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.


Features


> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures


Applications


> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface





                            Typical Properties of TIS™100-05 Series



Product Name TISTM100-05 Test Method
Color blue Visual
Construction &
Compostion
Ceramic filled silicone rubber ***
Composite Thickness 9/0.23 12/0.3 18/0.45 ASTM2240
Specific Gravity 1.75 ASTM D297
Heat Capacity 1.0 ASTM C351
Hardness 50 ASTM D751
Tensile Strength 425 ASTM D412
Continuos Use Temp (-58 to 356℉) / (-50 to 180℃) ***
Electrical
Dielectric Breakdown Voltage >3500 ASTM D149
Dielectric Constant 5.5 ASTM D150
Volume Resistivity 3.5X10" ASTM D257
Fire rating 94 V0 Equivalent UL
Thermal
Thermal conductivity 1.0 ASTM D5470
Thermal Impedance @50psi 1.52 2.35 3.45 ASTM D5470


Standard Thicknesses:
0.005"(0.127mm) 0.006"(0.152mm) 0.008"(0.203mm) 0.009"(0.228mm)
0.010"(0.254mm) 0.012"(0.304mm) 0.018"(0.457mm)
Consult the factory alternate thickness.


Standard Sizes:
16" x 18"(406mm x 457mm) 16" x 200'(406mm x 60.9M)
Individual die cut shapes can be supplied.


Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.


Reinforcement:
TIS™ series sheets are fiberglass reinforced.


Hardness 50 Thermally Conductive Electrical Insulator LED Mass Production Fire Rating 94 V0 TIS100-05 0


Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

UL
