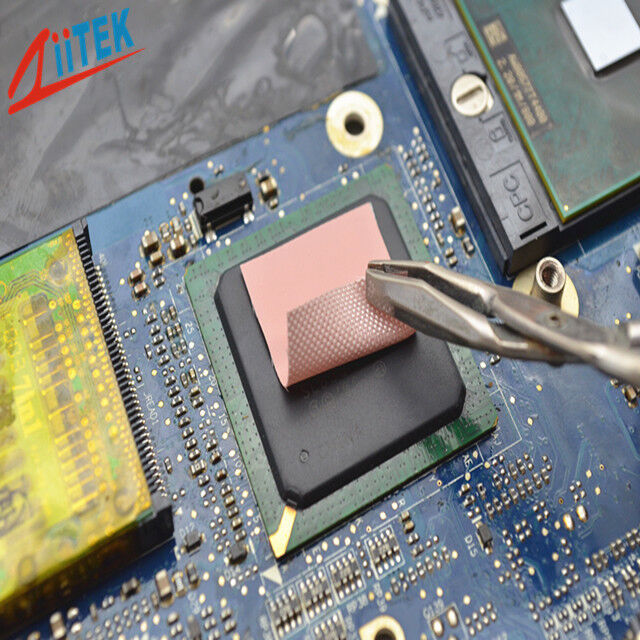

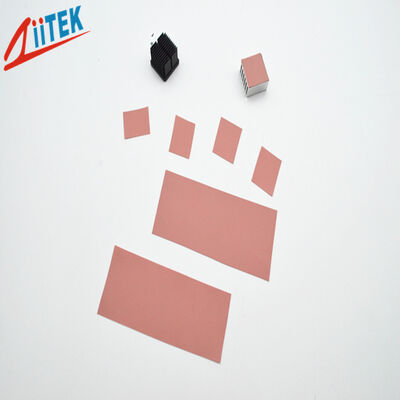

Good Heat Conductivity Silicone Thermally Conductive Electrical Insulator Gasket For Handheld Portable Electronics

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIS100-16-02
Document:	TIS100-16-02_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312CM
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000 pcs/month

Contact Now

Detailed Product Description

Products Name:	Good Heat Conductivity Silicone Thermally Conductive Electrical Insulator Gasket For Handheld Portable Electronics	Feature:	Low Thermal Resistance With High Voltage Isolation
Keywords:	Thermally Conductive Electrical Insulator Gasket	Density:	1.8 G/cm³
Color:	Pink	Thickness(inch/mm):	0.20~0.45 Mm
Thermal Conductivity:	1.6 W/m·K	Application:	Handheld Portable Electronics
Highlight:	industrial insulation materials , fiberglass insulation heat resistance , Silicone Thermally Conductive Electrical Insulator

Good Heat Conductivity Silicone Thermally Conductive Electrical Insulator Gasket For Handheld Portable Electronics

TIS^®️100-16-02 Series is a thermally conductive and electrically insulating product. It achieves insulating and thermally conductive effects by adding insulating silicone-based materials into thermally conductive materials. Meanwhile, the fiberglass provides excellent tear resistance and puncture resistance. The product is non-toxic, environmentally friendly, and flame-retardant. It is mainly used to isolate power supplies from heat sinks, among other applications.

Features

Surface is relatively soft
Good heat conductivity
Good dielectric strength
Low thermal resistance with high voltage isolation
Resistant to tears and punctures

Applications

Car battery and power supply
Power semiconductor device
Audio and video components
Automobile control device
Home appliance control board

Typical Properties TIS^®️100-16-02 Series

Property	Value	Test Method
Color	Pink	Visual
Construction & Composition	Ceramic filled silicone elastomer / Fiberglass	ZKTM J024
Thickness range (inch/mm)	0.008/0.20 \| 0.009/0.23 \| 0.010/0.25 \| 0.012/0.30 \| 0.018/0.45	ASTM D374
Hardness (Shore A)	80	ASTM D2240
Density (g/cm³)	1.8	ASTM D792
Tensile Strength (Mpa)	40	ASTM D412
Recommended Operating Temperature (℃)	-40~200	ZKTM J025
Breakdown voltage (V)	≥3500 \| ≥4000 \| ≥5000 \| ≥6000 \| ≥8000	ASTM D149
Dielectric Constant @1MHz	5.5	ASTM D150
Volume Resistivity (Ohm*cm)	＞1.0x10¹²	ASTM D257
Thermal Conductivity (W/m*K)	1.6	ASTM D5470
Thermal impedance (℃*in²/W) @25psi	1.13 \| 1.15 \| 1.46 \| 1.47 \| 2.70	ASTM D5470
Flame Rating	V-0	UL94 (E331100)

Product Specifications

Standard Thickness: 0.008"(0.20 mm), 0.009"(0.23 mm), 0.010"(0.25 mm), 0.012"(0.30mm),0.018"(0.45 mm)
Standard Size: 12"×160" (304 mmX48.7 m)
The TIS^®️ series is available in custom shapes and various forms
For other thicknesses or more information, please contact us
