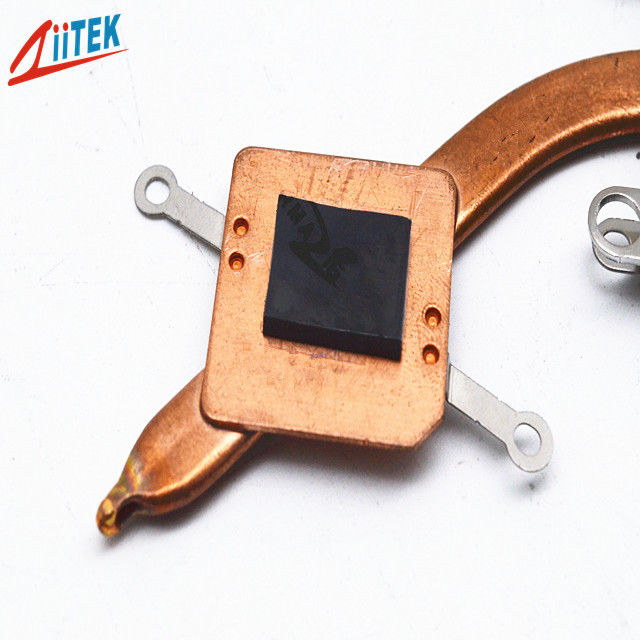

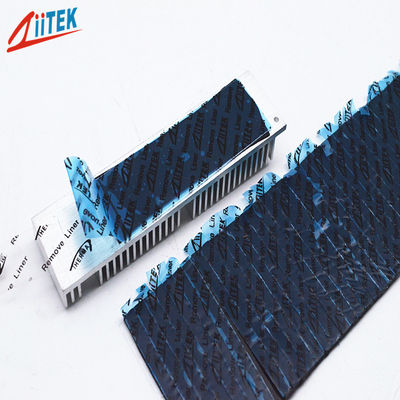

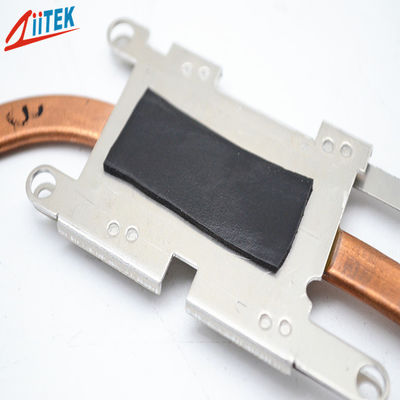

Good thermal conductive ultra soft 2.13 G/CC Thermally Conductive Pad 27 Shore 00 RoHS compliant For CPU

Good thermal conductive ultra soft 2.13 G/CC Thermally Conductive Pad 27 Shore 00 RoHS compliant For CPU

Good thermal conductive  ultra soft 2.13 G/CC Thermally Conductive Pad 27 Shore 00 RoHS compliant  For CPU
video
Good thermal conductive  ultra soft 2.13 G/CC Thermally Conductive Pad 27 Shore 00 RoHS compliant  For CPU
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF180-01U Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*23*12cm cantons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Thickness: 0.5-5.0mmT Specific Gravity: 2.2 G/cc
Dielectric Breakdown Voltage: >5500 VAC Thermal Conductivity: 1.5W/m-K
High Light:

2.13 G/CC Thermally Conductive Pad

,

Thermally Conductive Pad 27 Shore 00

,

1.5W/M-K CPU Thermal Pad

Good thermal conductive ultra soft 2.2 G/CC Thermally Conductive Pad 27 Shore 00 RoHS compliant For CPU​



Company Profile .

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.


The TIF180-01U Series  is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.



TIF100-01U Series Datasheet-(E)-REV02.pdf


Features
> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available
> High tack surface reduces contact resistance
Applications
LED TV / LED Lit Lamps
> CD-Rom, DVD-Rom cooling
> SAD-DC Power Adapters
> CPU
> Memory Modules
routers
Telecommunication hardware


                                            Typical Properties of TIF180-01U Series

Color
BLACK
Visual
Composite Thickness
Thermal Impedance @10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20
Specific Gravity
2.2 g/cc
ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness range 0.020"-0.200"
ASTM C351
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness
27 Shore 00
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Dielectric Breakdown Voltage



>5500 VAC
ASTM D412
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp



-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Outgassing(TML)
0.35%
ASTM E595
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant
3.5 MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20



Volume Resistivity
1.0X10"
Ohm-meter
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity
1.5W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470


Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.



Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.



Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.





Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated













Good thermal conductive  ultra soft 2.13 G/CC Thermally Conductive Pad 27 Shore 00 RoHS compliant  For CPU 0
