Name: Silicone Thermal Pad Thermal Gap Pad For Motherboard LED Graphics Card GPU CPU
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-30-05US
Price: 4.10 USD
Availability: InStock

Home Products Silicone Thermal Pad

Silicone Thermal Pad Thermal Gap Pad For Motherboard LED Graphics Card GPU CPU

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF100-30-05US

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	Silicone Thermal Pad Thermal Gap Pad For Motherboard LED Graphics Card GPU CPU	Thermal Conductivity:	3.0W/m-K
Dielectric Constant @1MHz::	7.0	Fire Rating:	94 V0
Breakdown Voltage(V/mm):	>5500 VAC	Density:	3.0g/cm³
Hardness:	50/20 Shore 00	Keywords:	Thermal Gap Pad
Application:	Motherboard LED Graphics Card GPU CPU
Highlight:	GPU CPU Thermal Gap Pad , Motherboard Silicone Thermal Pad , Graphics Card Silicone Thermal Pad

Silicone Thermal Pad Thermal Gap Pad For Motherboard LED Graphics Card GPU CPU

Company Profile

Dongguan Zhaoke Electronic Material Technology Co., Ltd. was established in 2006. Is a high-tech enterprise specializing in the research, development, production and sales of thermal interface materials. We mainly produce: heat-conducting joint filler, low melting point thermal interface materials, heat-conducting insulator, heat-conducting adhesive tape, heat-conducting interface pad and heat-conducting grease, heat-conducting plastic, silicone rubber, silicone rubber foam, etc. We adhere to the business philosophy of "survival by quality, development by quality", and continue to provide the most efficient and best service for new and old customers with excellent quality in the spirit of rigor, pragmatism and innovation.

Certifications:

ISO9001:2015

ISO14001: 2004 IATF16949:2016

IECQ QC 080000:2017

TIF^®100-30-05US Series thermal conductive pad is a very cost-effective general economic thermal interfaca material, soft with its own micro-stick, easy assembly. Under low compressing force to show good thermal conductivity and electrical insulation properties. Bedding on the gap between the heat device and the heat sink or the machine shell to extrude air to reach the full contact forming a continuous thermal conduction. Using heat sink or machine shell as a cooling device can effectively increase the cooling area to achieve a good cooling purposes.

Features

> RoHS compliant 3.5W/mK
> UL recognized
> Naturally tacky needing no furtheradhesive coating
> Soft and Compressible for low stressapplications
> Available in varies thickness

Applications

> Computer / communication equipment.
> Laptop / tablet / PC server.
> New energy power battery / vehicle equipment.
> Switching power supply / UPS.
> Video / security equipment.
> Any heating element and radiator.

Typical Properties of TIF^®100-30-05US Series
Property	Value		Test method
Color	Blue		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.0		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	50 Shore 00	20 Shore 00	ASTM 2240
Recommended Operating Temperature	-40 to 200℃		******
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	7.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Flame rating	V-0		UL 94 (E331100)
Thermal conductivity	3.0 W/m-K		ASTM D5470
	3.0 W/m-K		ISO22007

Product Specification

Product Thicknesses: 0.010"(0.25mm)~ 0.200" (5.00mm) with increments of 0.010"(0.25mm).
Product Sizes: 16" x 16" (406mm x 406mm)

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

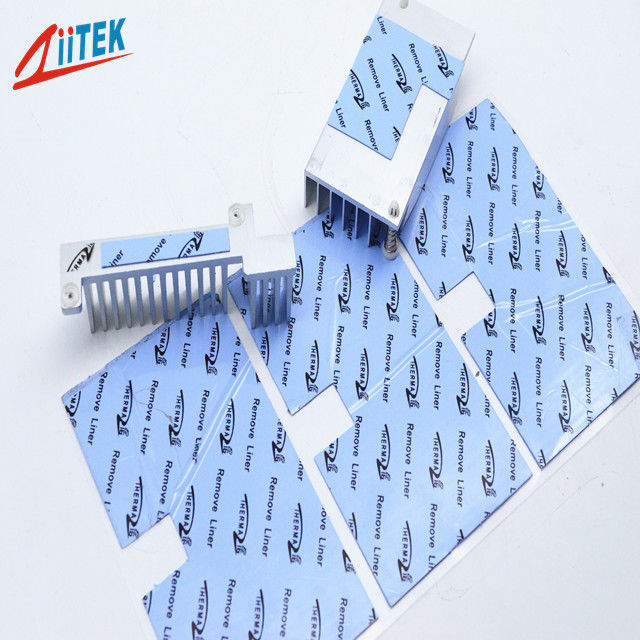

Silicone Thermal Pad Thermal Gap Pad For Motherboard LED Graphics Card GPU CPU 1

Packaging Details & Lead time

The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.

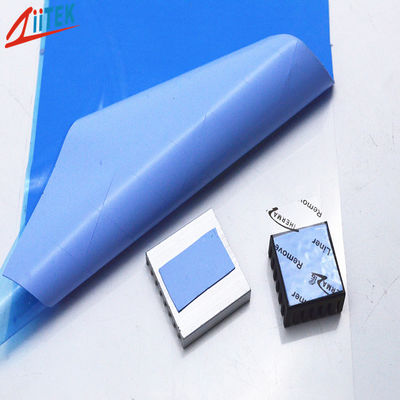

Silicone Thermal Pad Thermal Gap Pad For Motherboard LED Graphics Card GPU CPU 2
