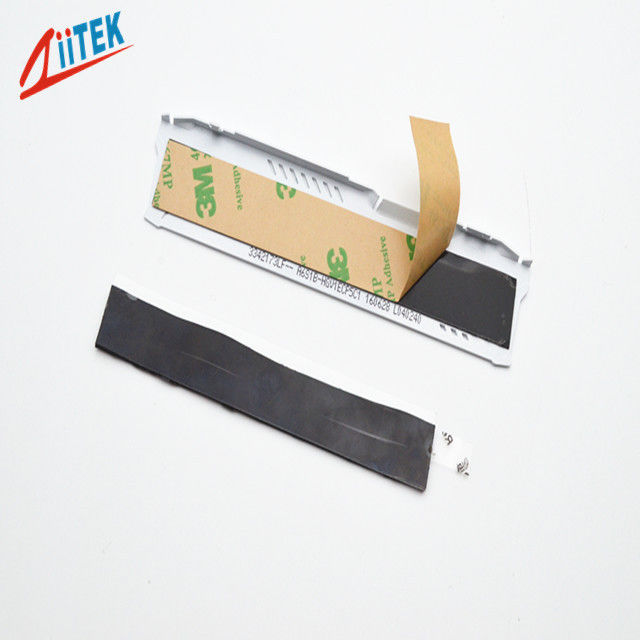

High Compressibility And Compliancy 1.0mmT Ceramic Filled Silicone Thermal Pad For LED Power Supply
Company Profile
Ziitek Technology Company is dedicated to providing a comprehensive range of thermal management products and services to meet various demand scenarios. Ziitek Technology offers prompt and flexible services. Our thermal conductive materials are widely used in the fields of new energy, electronic appliances, transportation, industry, military, healthcare, communication, etc. Ziitek has obtained ISO9001, ISO14001 and IECQ certifications, which indicate our commitment to producing high-quality products and adopting excellent management methods. Our products comply with RoHS, REACH and UL standards, ensuring safety and reliability.

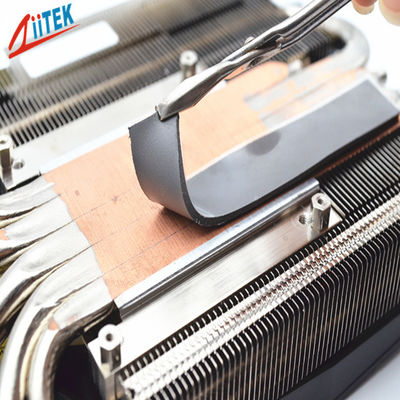

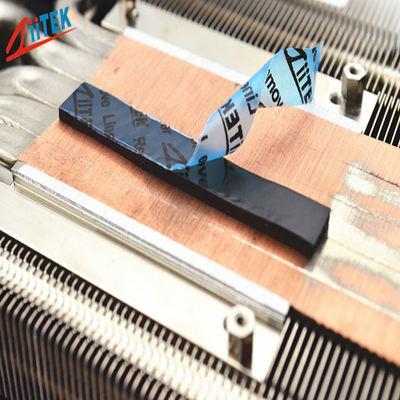

The TIF140-01E Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.Their flexibility and elasticity make them suited to coat very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.
TIF100-01E Datasheet-REV02.pdf
Features
> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available
> High tack surface reduces contact resistance
Applications
Electronic components - 5G, Aerospace, AI, AIoT, AR/VR/MR/XR, Automotive, Consumer Devices, Datacom, Electric Vehicle, Electronic Products, Energy Storage, Industrial, Lighting Equipment, Medical, Military, Netcom, Panel, Power Electronics, Robot, Servers, Smart Home, Telecom, etc.
|
Typical Properties of TIF140-01E Series
|
|
Color
|
Black |
Visual
|
|
Construction & Compostion
|
Ceramic filled silicone elastomer
|
*****
|
|
Specific Gravity
|
2.3 g/cc
|
ASTM D297
|
| Thickness range |
0.020"-0.200" |
ASTM C351
|
|
Hardness
|
35 Shore 00
|
ASTM 2240
|
|
Dielectric Breakdown Voltage
|
>5500 VAC |
ASTM D412
|
|
Continuos Use Temp
|
-40 to 160℃
|
*****
|
|
Outgassing(TML)
|
0.35%
|
ASTM E595
|
|
Dielectric Constant
|
4.7MHz
|
ASTM D150
|
|
Volume Resistivity
|
1.0X1012Ohm-meter
|
ASTM D257
|
|
Fire rating
|
94 V0
|
equivalent UL
|
|
Thermal conductivity
|
1.5W/m-K
|
ASTM D5470
|
Product Specification
Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)
Product Sizes: 8" x 16"(203mm x406mm)
Individual die cut shapesand and custom thickness can be supplied.Please contact us for confirming
Packaging Details & Lead time
The packaging of thermal pad
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Advantage
Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.
They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
