| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL & RoHS |
| Model Number: | TIF700HM Series |
| Minimum Order Quantity: | 1000pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 24*23*12cm cantons |
| Delivery Time: | 3-5 work days |
| Payment Terms: | T/T |
| Supply Ability: | 1000000 pcs/month |
| PART NUMBER: | TIF700HM | SPECIFIC GRAVITY: | 3.45 G/cc |
|---|---|---|---|
| APPLICATIONS: | ELECTRONICS | COMPANY: | ZIITEK COMPANY |
| MATERIAL: | SILICONE | Operating Temp: | -40~160℃ |
| High Light: | 6W/MK Silicone Thermal Pad,Thermal Conductive Silicone Pad for electronics,10" x 16" Silicone Thermal Pad |
||

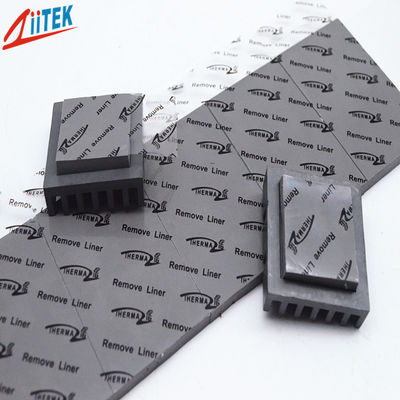

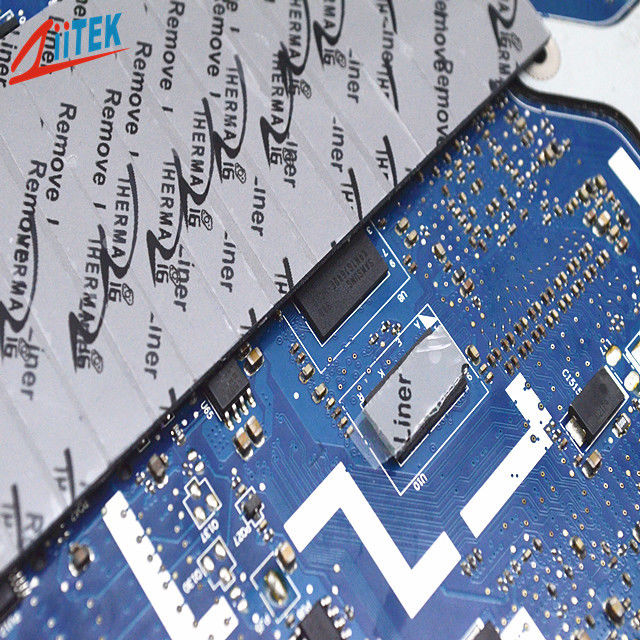

China company supplied Outstanding thermal performance 6W/MK outgassing 0.30% silicone thermal pad TIF700HM for electronics
Company Profile
With professional R&D capabilities and over 13 year experiences in thermal interface material industry, Ziitek company own many unique formulations which are our core technologies and advantages. Our goal is to provide quality & competitive products to our customers worldwide aiming for long-term business cooperation.
Ziitek TIF700HM Series is recommended for applications that require a minimum amount of pressure on components. The viscoelastic nature of the material also gives excellent low-stress vibration dampening and shock absorbing characteristics. Ziitek TIF700HM is an electrically isolating material, which allows its use in applications requiring isolation between heat sinks and high-voltage, bare-leaded devices.
Features
| Naturally tacky needing no further adhesive coating |
| Available in varies thicknesses |
| Broad range of hardnesses available |
| Moldability for complex parts |
| Outstanding thermal performance |
| High tack surface reduces contact resistance |
| RoHS compliant |
Applications
| Heat Sinking Housing at LED-lit BLU in LCD |
| LED TV and LED-lit lamps |
| RDRAM memory modules |
| Micro heat pipe thermal solutions |
| Automotive engine control units |
| Telecommunication hardware |
| Handheld portable electronics |
| Semiconductor automated test equipment (ATE) |
| CPU |
| display card |
| mainboard/mother board |
| notebook |
| power supply |
| Heat pipe thermal solutions |
| Memory Modules |
|
Typical Properties of TIF700HM Series
|
||||
|
Color
|
Gray |
Visual
|
Composite Thickness
|
Thermal Impedance @10psi
(℃-in²/W) |
|
Construction &
Compostion |
Ceramic filled silicone elastomer
|
***
|
10mils / 0.254 mm
|
0.16
|
|
20mils / 0.508 mm
|
0.20
|
|||
|
Specific Gravity
|
3.45 g/cc
|
ASTM D297
|
30mils / 0.762 mm
|
0.31
|
|
40mils / 1.016 mm
|
0.36
|
|||
| Thickness range | 0.030"-0.400" |
ASTM C351
|
50mils / 1.270 mm
|
0.42
|
|
60mils / 1.524 mm
|
0.48
|
|||
|
Hardness
|
50 Shore 00
|
ASTM 2240
|
70mils / 1.778 mm
|
0.53
|
|
80mils / 2.032 mm
|
0.63
|
|||
|
Dielectric Breakdown Voltage
|
5.5KV |
ASTM D412
|
90mils / 2.286 mm
|
0.73
|
|
100mils / 2.540 mm
|
0.81
|
|||
|
Continuos Use Temp
|
-40 to 160℃
|
***
|
110mils / 2.794 mm
|
0.86
|
|
120mils / 3.048 mm
|
0.93
|
|||
|
Outgassing(TML)
|
0.30%
|
ASTM E595
|
130mils / 3.302mm
|
1.00
|
|
140mils /3.556 mm
|
1.08
|
|||
|
Dielectric Constant
|
4.5 MHz
|
ASTM D150
|
150mils / 3.810 mm
|
1.13
|
|
160mils / 4.064 mm
|
1.20
|
|||
|
Volume Resistivity
|
5.2X10"
Ohm-meter |
ASTM D257
|
170mils / 4.318 mm
|
1.24
|
|
180mils / 4.572 mm
|
1.32
|
|||
|
Fire rating
|
94 V0
|
equivalent
UL |
190mils / 4.826 mm
|
1.41
|
|
200mils / 5.080 mm
|
1.52
|
|||
|
Thermal conductivity
|
6.0W/m-K
|
ASTM D5470
|
Visua l/ ASTM D751
|
ASTM D5470
|
Standard Sheets Sizes:
10" x 16"(254mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
Q&A
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
