China Factory Phase Change Material Pad Phase Change Pad Low Thermal Resistance Phase Change Material

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIC™800A

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	242312cm
Delivery Time:	3-6 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Keyword:	RoHS Compliant Yellow Thermal Phase Change	Applicatoin:	Notebooks And Desktop Computers
Density:	>2.5g/cc	Thermal Conductivity:	2.5 W/mK
Phase Transition Temp:	50℃~60℃	Material:	Phase Change Pad
Highlight:	Phase Change Material Pad , China Factory Phase Change Material Pad , Low Thermal Resistance Phase Change Pad

China factory Phase Change Material Pad Phase Change Pad Low Thermal Resistance Phase Change Material

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

The TIC™800A Series is low melting point thermal interface material. At 50℃, The TIC™800A Series begins to soften and flow, filling the microscopic irregularities of both the thermal solution and the integrated circuit package surface, thereby reducing thermal resistance.The TIC™800A Series is a flexible solid at room temperature and freestanding without reinforcing components that reduce thermal performance.

The TIC™800A Series shows no thermal performance degradation after 1,000 hours@130℃,or after 500 cycles, from -25℃ to 125℃.The material softens and does not fully change state resulting in minimal migration (pump out)at operating temperatures.

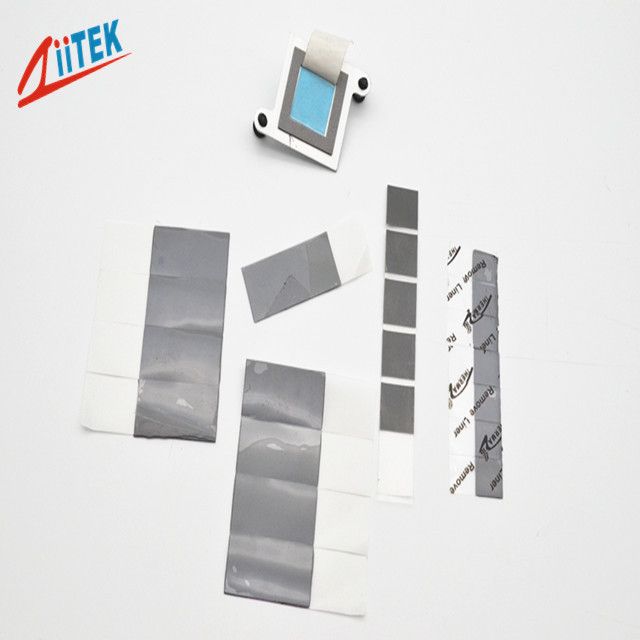

China Factory Phase Change Material Pad Phase Change Pad Low Thermal Resistance Phase Change Material 0

Features

> 0.018℃-in² /W thermal resistance
> Naturally tacky at room temperature, no adhesive required
> No heat sink preheating required

Applications

> High Frequency Microprocessors
> Notebook and Desktop PCs
> Computer Serves
> Memory Modules
> Cache Chips
> IGBTs

Typical Properties of TIC™800A Series
Product Name	TIC^TM803A	TIC^TM805A	TIC^TM808A	TIC^TM810A	Testing standards
Color	Ashy	Ashy	Ashy	Ashy
Composite Thickness	0.003" (0.076mm)	0.005" (0.126mm)	0.008" (0.203mm)	0.010" (0.254mm)
Thickness Tolerance	±0.0006" (±0.016mm)	±0.0008" (±0.019mm)	±0.0008" (±0.019mm)	±0.0012" (±0.030mm)
Density	2.5g/cc				Helium Pycnometer
Work temperature	-25℃～125℃
phase transition temperature	50℃~60℃
Thermal conductivity	2.5W/mK				ASTM D5470 (modified)
Thermal lmpedance @ 50 psi(345 KPa)	0.021℃-in²/W	0.024℃-in²/W	0.053℃-in²/W	0.080℃-in²/W	ASTM D5470 (modified)
Thermal lmpedance @ 50 psi(345 KPa)	0.14℃-cm²/W	0.15℃-cm²/W	0.34℃-cm²/W	0.52℃-cm²/W	ASTM D5470 (modified)

Standard Thicknesses:
0.003"(0.076mm) 0.005"(0.127mm) 0.008"(0.203mm) 0.010"(0.254mm)
Consult the factory alternate thickness.

Standard Sizes:
9" x 18"(228mm x 457mm) 9" x 400'(228mm x 121M)

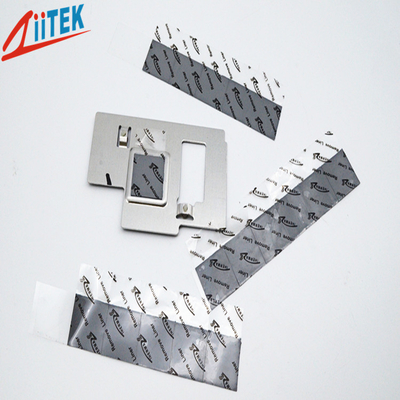

TIC™800 series are supplied with a white release paper and a bottom liner. TIC™800 series is available in kiss cut an extended pull tab liner or individual die cut shapes.

Peressure Sensitive Adhesive:
Peressure Sensitive Adhesive is not applicable for TIC™800 series products.

Reinforcement:
No reinforcement is necessary.

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract
