Ultra Thin Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIR300 series

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10USD/pcs
Packaging Details:	323512cm cantons
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Material:	Synthetic Graphite	Feature:	Ultra Soft
Color:	Black	Product Name:	Ultra Thin Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets
Keywords:	Thermal Graphite Sheet	Hardness:	85 ShoreA
Highlight:	High Conductivity Thermal Graphite Sheet , Heatsinks Film Graphite Sheets , Ultra Thin Soft Graphite Sheet

Ultra Thin Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

TIRTM300 Series products are high performance thermal conductive interface materials. The uniquegrain orientation and plate structure enable these products to adapt to different contact surfacesclosely, and thus maximizes the ability of heat conduction.

TIR-300-Series.pdf

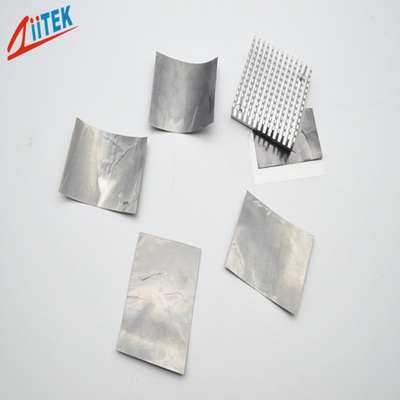

Ultra Thin Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets 0

Feature

Good thermal conductive 1700W/mK

Easy to assemble

Ultra-thin type

RoHS Compliant

Application

PDP,LCD TV,Set top box

Laptop,Notebook,Projector

Mobile phone,Hand‐held devices

Automotive electronics

Typical Properties of TIRTM300 series
Product Name	TIR312	TIR317	TIR325	TIR332	TIR340	Test Method
Colour	Black
Material	Synthetic graphite
Thickness	0.012 mm	0.012 mm	0.012 mm	0.012 mm	0.012 mm	ASTM D751
Total Thickness	+/- 10%	+/- 10%	+/- 10%	+/- 10%	+/- 10%	ASTM D751
Density	1.9 g/cc	2.0 g/cc	1.8 g/cc	1.9 g/cc	1.8 g/cc	ASTM D297
Hardness	85 Shore A					ASTM D2240
Operation Temperature	-40℃~ 400℃					******
Volume Resistivity	3.2X10³ Ohm-meter					ASTM D257
Typical Thermal Conductivit (In Z axis)	4.2W/m-K	5.0W/m-K	6.0W/m-K	8.0W/m-K	12 W/m-K	ASTM D5470
Typical Thermal Conductivity (In X-Y axis)	1600 W/m-K	1700W/m-K	1500W/m-K	1400W/m-K	1200W/m-K	******
Thermal Resistance @100psi	0.028 (in²℃/W)	0.030 (in²℃/W)	0.035 (in²℃/W)	0.045 (in²℃/W)	0.060 (in²℃/W)	ASTM D5470

Standard Sheets Sizes :

1.185mm x 220m 2.195mm*240mm 3.320mm*320mm

TIR™ 300 series Individual die cut shapes can be supplied.

Consult the factory alternate thickness

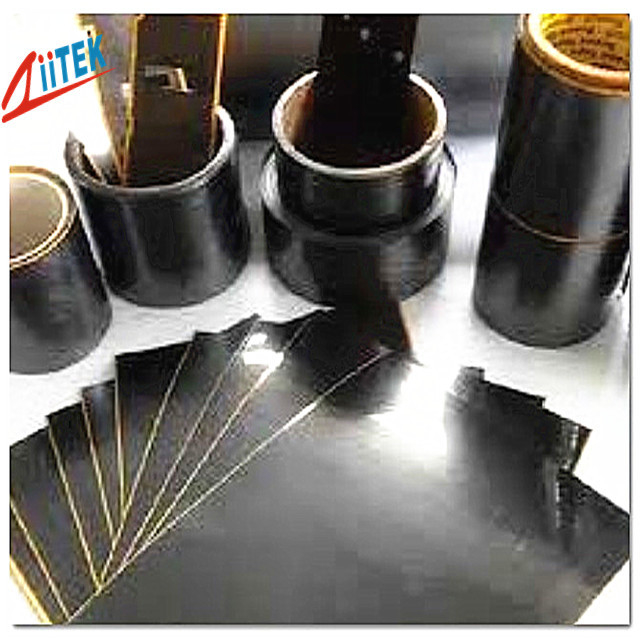

Ultra Thin Soft Graphite Sheet High Conductivity Thermal Heatsinks Film Graphite Sheets 1

Why Choose us ?

1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract

Packaging Details & Lead time

1.with PET film or foam-for protection.
2. use Paper Card To Separate Each Layer.
3. export carton inside and outside.
4. meet with customers' requirement-customized.

Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
