High Quality Thermal Conductive Graphite Sheet High-Purity Graphite Sheet For Heat Transfer

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIR™606

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10USD/pcs
Packaging Details:	323512cm cantons
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Product Name:	High Quality Thermal Conductive Graphite Sheet High-Purity Graphite Sheet For Heat Transfer	Material:	Natural Graphite
Application:	Mobile Phone,Hand-held Devices Heat Transfer	Color:	Black
Keywords:	Thermal Graphite Sheet	Hardness:	85 ShoreA
Feature:	Easy To Assemble & Ultra Soft	Certification:	RoHS Compliant
Highlight:	High Purity Thermal Graphite Sheet , High Quality Thermal Graphite Sheet , Heat Transfer Thermal Graphite Sheet

High Quality Thermal Conductive Graphite Sheet High-Purity Graphite Sheet For Heat Transfer

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

Product introduction

TIR™600 Series products are high-performance and heat-conductive interface materials with the reasonable prices.They can be used in applications where no requirement for electric insulation is specified.The unique grain orientationand plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heatconduction function is attained.

TIR-600-Series-Natural-graphite-gasket (1).pdf

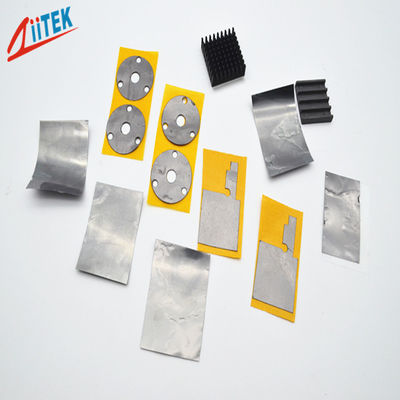

High Quality Thermal Conductive Graphite Sheet High-Purity Graphite Sheet For Heat Transfer 0

Feature

> Good thermal conductive 2400W/mK
> Soft and Compressible for low stress applications
> Available in varies thickness
> Soft and compressible for low stress applications
> large tolerance stack ups
> Broad range of hardnesses available
> Moldability for complex parts
> Good thermal performance

Application

> LED TV and LED-lit lamps
> Cooling components to the chassis of frame
> High speed mass storage drives
> Heat Sinking Housing at LED-lit BLU in LCD
> LED TV and LED-lit lamps
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units

Typical Properties of TIR™600 series
Product Name	TIR™605	TIR™606	TIR™610	TIR™620	Test Method
Colour	Black
Material	Natural Graphite
Thickness	0.005" (0.127 mm)	0.006" (0.152 mm)	0.010" (0.254 mm)	0.020" (0.508 mm)	ASTM D751
Total Thickness	+/- 10%	+/- 10%	+/- 5%	+/- 5%	ASTM D751
Density	2.2 g/cc	2.2 g/cc	2.2 g/cc	2.2 g/cc	ASTM D297
Hardness	85 Shore A				ASTM D2240
Operation Temperature	-200℃~ 300℃				******
Volume Resistivity	3.2X10³ Ohm-meter				ASTM D257
Typical Thermal Conductivit (In Z axis)	6.0W/m-K	6.0W/m-K	6.0W/m-K	6.0W/m-K	ASTM D5470
Typical Thermal Conductivity (In X-Y axis)	240 W/m-K	240 W/m-K	240 W/m-K	240 W/m-K	******
Thermal Resistance @100psi	0.037 (in²℃/W)	0.042 (in²℃/W)	0.057 (in²℃/W)	0.098 (in²℃/W)	ASTM D5470

Standard Sheets Sizes :

500mm*50m

TIR™ 600 series Individual die cut shapes can be supplied.

Consult the factory altermate thickness

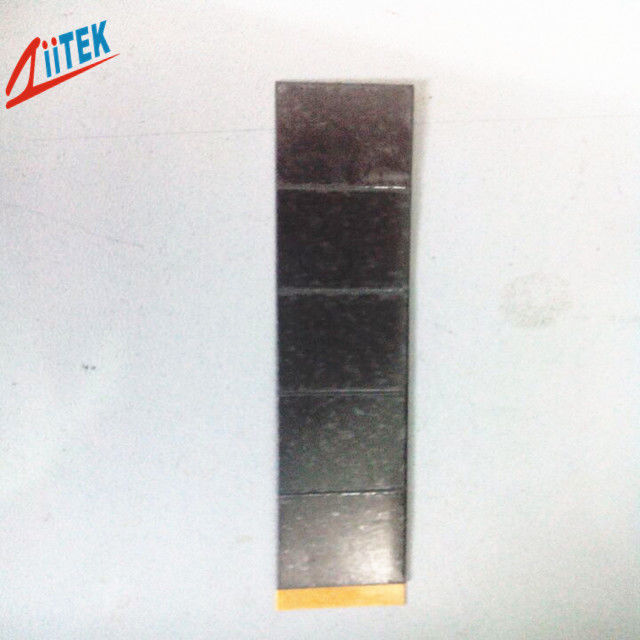

High Quality Thermal Conductive Graphite Sheet High-Purity Graphite Sheet For Heat Transfer 1

Packaging Details & Lead time

1.with PET film or foam-for protection.
2. use Paper Card To Separate Each Layer.
3. export carton inside and outside.
4. meet with customers' requirement-customized.

Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated.

Independent R&D team

Q: How do I place an order?

A:1. Click the "Sent messages" button to continue with the process.

2. Fill out the message form by entering a subject line, and message to us.

This message should include any questions you might have about the products as well as your purchase requests.

3. Click the "Send" button when you are finished to complete the process and send your message to us

4. We will reply you as soon as possible with Email or online.
