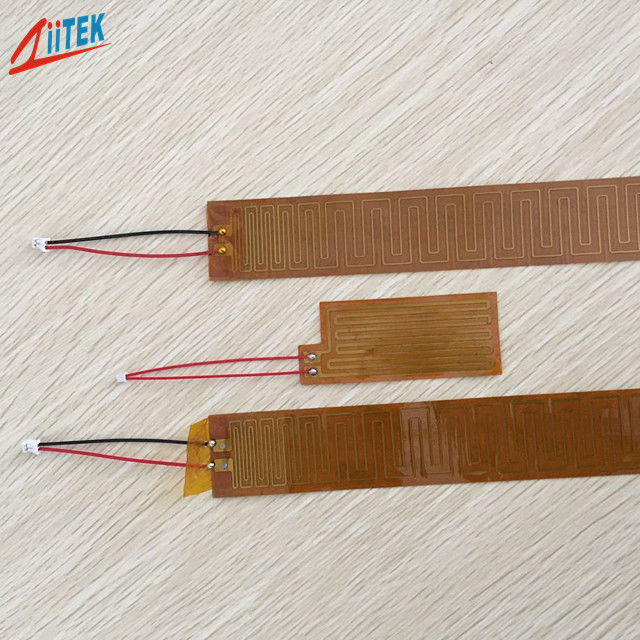

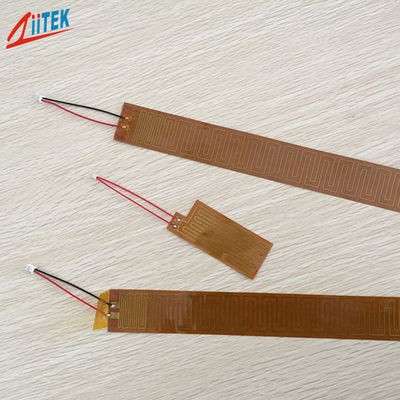

KheatTM PI-Polyimide(Kapton)Heater For New encrgy industry battery
Kheat PI-Polyimide (kapton) heater is a heating material developed andproduced independently by Ziitek company. The products is verysoft, using modified PI film to a better thermal conductive performance. It can be customized according to design requirements, so that it can meet the requirements of different heating power and temperature requirements in different area of parts, reach the distrubution of different temperature.
Features
>Thickness of resistor: 0.03-0.1mmT, Thickness of PI film :0.05-0.1mmT
>Ultra soft, the smallest bending radius is 0.8mmT
>The product using modified Pl film to a bettcr thermal conductive performance, it is made of two Pl films and resistor laminated by high temperature.
>Can be customized according to shape,size, power, way of installation, the products is coated on the heated products
>The resistor is etched with the designed resistor, has better heating uniformity
>Can be casily integrated with thin insulation materials, provide light weight clectric heating elements with insulation layer.
>Can do adhesive on one side for convenient installation
>RoHS,CE,UL compliant
Applications
>New cnergy industry(battery)
>Communication security industry
>Video camera,hard disk video recorder
>Power industry , military acrospace
>All kinds of clectronic products nced to be heated
>Medical equipment, precision instruments
| Typical Properties of Kheat PI Polyimide (kapton) heater Series |
| Operating Voltage |
1~220V AC/DC |
| Diclectric Breakdown Voltage |
≥1000VAC/MIN |
| Insulation Resistance |
≥ 100MΩ |
| Recommended Power Density |
0.1~0.6W/c㎡ |
| Max Power Density |
1.0W/c㎡ |
| Service life |
5~10years |
| Continuous Use Temp |
200℃(it depends on temperature stability of the adhesive if customer needs adhesive.) |
| Continuous Use Temp |
-50~300℃ |
| Thickness |
0.1~0.52mmT |
| Mechanical Compression strength |
100KG/c㎡ |
| Pull Force of Guide Line |
≥80N |
| Pull Force of Soldering Point |
≥20N |
Company profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
