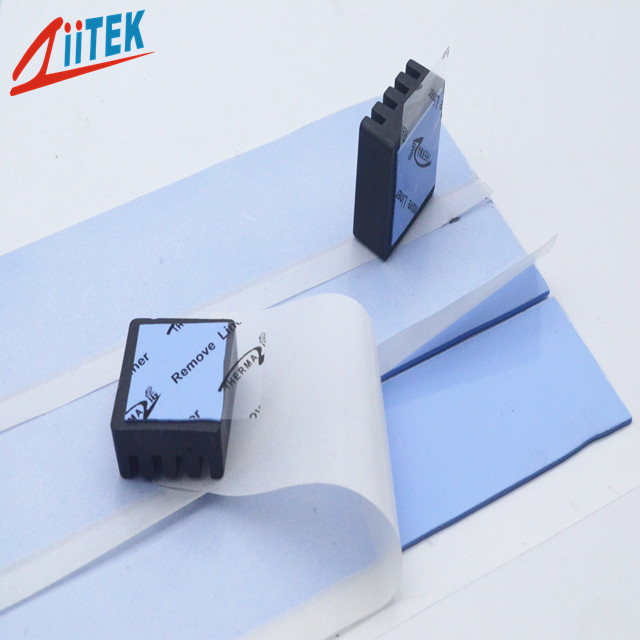

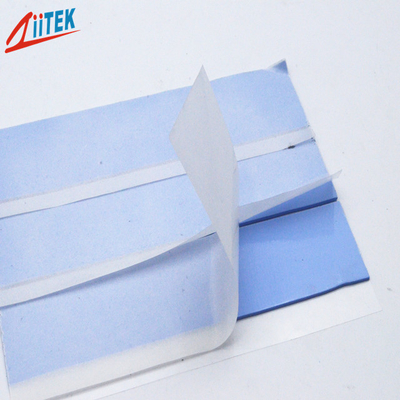

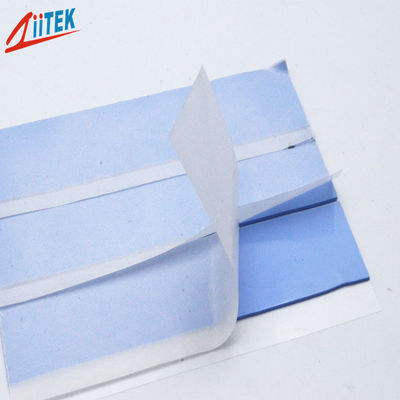

Name: 2.0mm Thermal Conductive Silicone Pad 2.6W/mK for Heat-Sink GPU
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF580BS
Price: 4.10 USD
Availability: InStock

Home Products Silicone Thermal Pad

2.0mm Thermal Conductive Silicone Pad 2.6W/mK for Heat-Sink GPU

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF580BS

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Product Ame:	China Manufacturer Thermal Conductive Silicone Pad Thickness 2.0mm For Heat-Sink GPU	Thickness:	2.0mmT
Hardness:	13 Shore 00	Specific Gravity:	3.0g/cc
Dielectric Breakdown Voltage:	>5500 VAC	Thermal Conductivity:	2.6W/m-K
Color:	Blue	Keywords:	Thermal Conductive Silicone Pad
Application:	Heat-Sink GPU
Highlight:	Silicone Pad for Heat-Sink GPU , 2.0mm Silicone Pad

2.0mm Thermal Conductive Silicone Pad 2.6W/mK for Heat-Sink GPU

Product Specifications

Attribute	Value
Product Name	China Manufacturer Thermal Conductive Silicone Pad Thickness 2.0mm For Heat-Sink GPU
Thickness	2.0mmT
Hardness	13 Shore 00
Specific Gravity	3.0g/cc
Dielectric Breakdown Voltage	>5500 VAC
Thermal Conductivity	2.6W/m-K
Color	Blue
Application	Heat-Sink GPU

Product Description

China Manufacturer Thermal Conductive Silicone Pad Thickness 2.0mm For Heat-Sink GPU

Company Profile

Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:

Thermal silicone pad
Thermal graphite sheet/film
Thermal double-sided tape
Thermal insulation pad
Thermal ceramic pad
Phase change material
Thermal grease

All products are compliant with UL94 V-0, SGS and ROHS standards.

Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL

TIF580BS Series Description

The TIF580BS Series uses a special process with silicone as the base material, adding thermal conductive powder and flame retardant to create an effective thermal interface material that reduces thermal resistance between heat sources and heat sinks.

Features

Good thermal conductivity: 2.6W/mK
Moldability for complex parts
Broad range of hardnesses available
High tack surface reduces contact resistance
RoHS compliant
UL recognized

Applications

Cooling components to the chassis of frame
High speed mass storage drives
Heat Sinking Housing at LED-lit BLU in LCD
LED TV and LED-lit lamps
RDRAM memory modules
Micro heat pipe thermal solutions
Automotive engine control units
Telecommunication hardware

Technical Specifications

Property	Value	Test Method
Color	Blue	Visual
Construction	Ceramic filled silicone elastomer
Thermal Conductivity	2.6W/mK	ASTM D5470
Hardness	13 Shore 00	ASTM 2240
Specific Gravity	3.0 g/cc	ASTM D297
Thickness range	2.0mm	ASTM D374
Dielectric Breakdown Voltage (T= 1mm above)	>5500 VAC	ASTM D149
Dielectric Constant	5.0MHz	ASTM D150
Volume Resistivity	2.0X10¹³ Ohm-meter	ASTM D257
Continuous Use Temp	-45°C to 200°C
Outgassing (TML)	0.45%	ASTM E595
Flame Rating	94-V0	UL E331100

Product Thicknesses: 0.020-inch to 0.200-inch (0.5mm to 5.0mm)

Product Sizes: 8" x 16" (203mm x 406mm)

Individual die cut shapes and custom thicknesses can be supplied. Please contact us for confirmation.

Packaging & Lead Time

Packaging Details:

PET film or foam for protection
Paper card to separate each layer
Export carton inside and outside
Customized packaging available to meet customer requirements

Lead Time: Quantity: 5000 pieces (estimated time to be negotiated)

Frequently Asked Questions

Q: Are you a trading company or manufacturer?

A: We are a manufacturer based in China.

Q: How to find the right thermal conductivity for my application?

A: The appropriate thermal conductivity depends on the watts of your power source and heat dissipation requirements. Please provide details about your application and power specifications so we can recommend the most suitable thermal conductive materials.

Q: Do you accept custom orders?

A: Yes, we welcome custom orders. Customization options include dimensions, shape, color, and adhesive coating (single or double-sided) or fiberglass coating. To place a custom order, please provide a drawing or detailed specifications.
