|Place of Origin:||China|
|Minimum Order Quantity:||1000pcs|
|Packaging Details:||25*24*13cm canton|
|Delivery Time:||3-8 work days|
|Product Name:||Z-Paster100-15-02F||Application:||No Silicone Required Position|
|Color:||Gray/White||Feature:||No-silicone Thermal Gap Filler|
|Keywords:||Good Performance Thermal Gap Pad Silicone Free||Thickness:||0.25-5.0 Mm|
0.25mm Silicone Free Thermal Pad,
2.5 mm Silicone Free Thermal Pad,
1.5 W/mK Silicone Free Thermal Pad

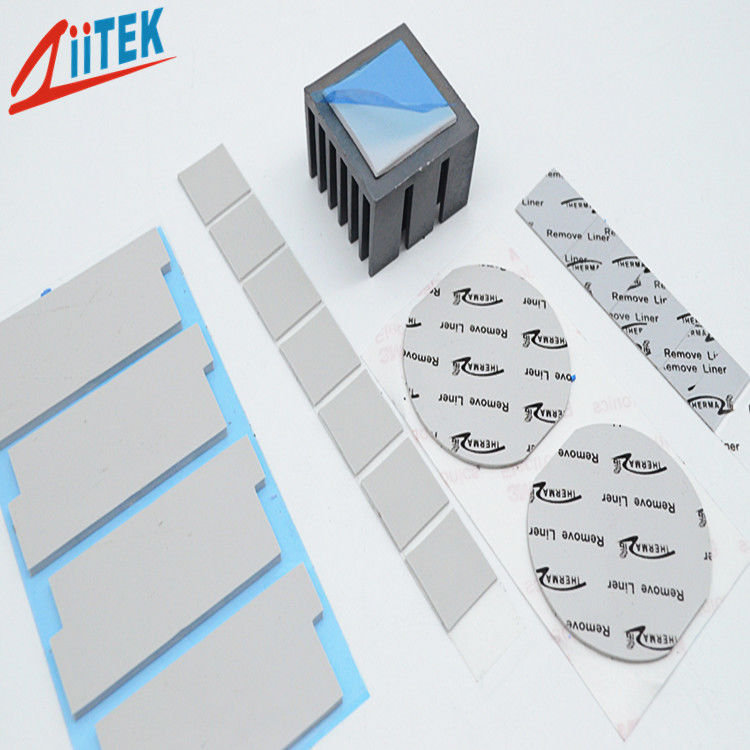

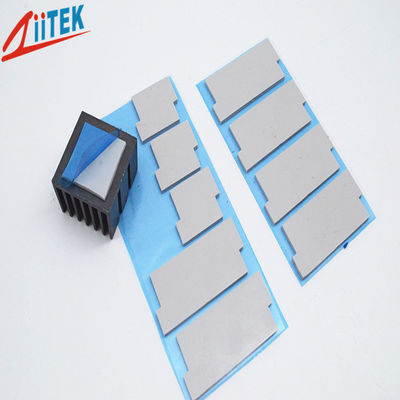

Good performance silicone free thermal pad for no-silicone required projects
Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.
Z-Paster100-15-02F Series is a high performance and compatible non-silicone material of the thermal conductive interface materials.The role is to fill the air gaps between the heating elements and the heat dissipation fins or the metal base.It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.
It applies to the liner based on silicone suitably. The flexibility and elasticity make it suited to the coating of the very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
> ROSH compliance
> Good thermal conductive:1.5 W/mK
> Soft and Compressible for low stress applications
> Available in varies thickness
> Cooling components to the chassis of frame
> Car Battery & Power Supply
> Charging Pile
> Silicone-sensitive applications
> Graphics Card Thermal Module
> Set Top Box
> Medical devices
> LED Lighting
> SFP optical module
> Miniature heat tube radiator
Typical Properties of Z-Paster100-15-02F Series
|Color||Gray/White||Visual||Dielectric Breakdown Voltage (T= 1mm above)||>5000 VAC||ASTM D149|
|Construction||Silicone-free The metal oxide fills||**********||Dielectric Constant||5.5 MHz||ASTM D150|
|Thermal Conductivity||1.5 W/mK||ASTM D5470||Volume Resistivity||6.3X1013 Ohm-meter||ASTM D257|
|Hardness||55 Shore 00||ASTM 2240||Continuous Use Temp||– 20 To 125℃||**********|
|Specific Gravity||2.55 g/cc||ASTM D297||Outgassing (TML)||0.30%||ASTM E595|
|Thickness range||0.010"-0.200" (0.25mm-5.0mm)||ASTM D374||Flame Rating||94 V0||equivalent to|
0.010-inch to 0.200-inch (0.25mm to 5.0mm)
Proprietary NS1 option available to eliminate tack from one side to aid in handling.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
Q: Do you accept custom orders ?
A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
Q: How much are the pads?
A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
Why Choose us ?
1.Our value message is'' Do it right the First time, total quality control''.
2.Our core competencies is thermal conductive interface materials
3.Competitive advantage products.
4.Condidentiality agreement Bussiness Secrect Contract
5.Free sample offer
6.Quality assurance contract
we will help you to deal with it and give you satisfactory solution.
Z-Paster100-15-02F Series Datasheet-(E)-REV01.pdf
