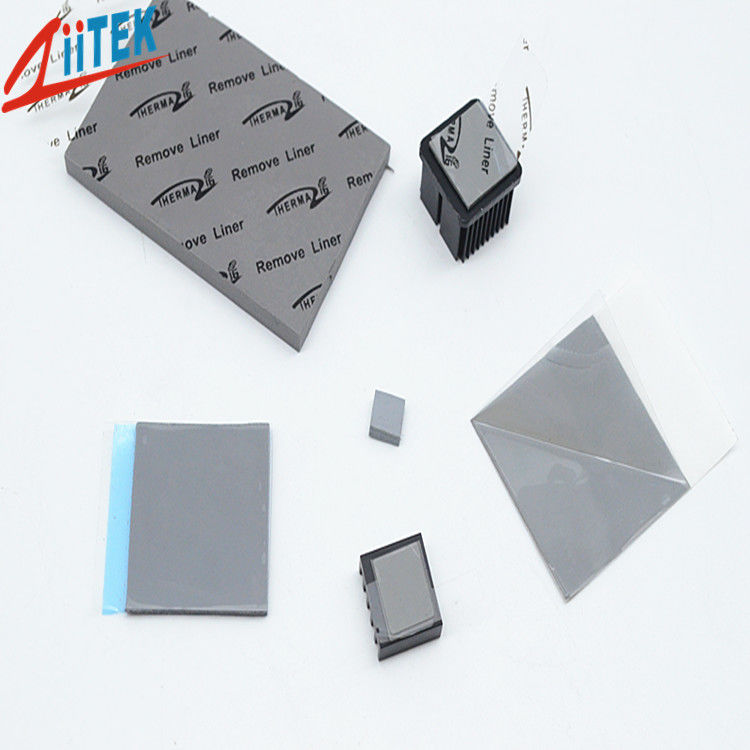

3.0 W/M-K Silicone Free Thermal Pad For Medical Equipment Directly From The Manufacturer
Z-Paster100-20-11UF Series is a high performance and compatible non-silicone material of the thermal conductive interface materials.
The roleis to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. lt applies to the liner based on silicone suitably.The flexibility and elasticity make it suited to the coating of the very uneven surfaces.Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.
Z-PASTER100-30-10UF-Silicone-free-Thermal-conducti...
Features
> Silicone-free
> ROSH compliance
> Good thermal conductive: 3.0W/mK
> Soft and Compressible for low stress applications
> Available in varies thickness
Application
> Cooling components to the chassis of frame
> Car Battery & Power Supply
> Charging Pile
> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
| Typical Properties of Z-Paster100-30-10UF Series |
| Color |
Gray |
Visual |
Dielectric Breakdown Voltage (T= 1mm above) |
>5000 VAC |
ASTM D149 |
| Construction |
Silicone-free /The metal oxide fills |
********** |
Dielectric Constant |
5.5(@ MHz) |
ASTM D150 |
| Thermal Conductivity |
3.0 W/mK |
ASTM D5470 |
Volume Resistivity |
6.0X1013 Ohm-meter |
ASTM D257 |
| Hardness |
75 Shore 00 |
ASTM 2240 |
Continuous Use Temp |
– 20 To 125 ℃ |
********** |
| Specific Gravity |
2.88g/cc |
ASTM D297 |
Outgassing (TML) |
0.30% |
ASTM E595 |
| Thickness |
0.020"-0.200" |
ASTM D374 |
Flame Rating |
94 V-0 |
equivalent to |
Standard Thicknesses
0.010-inch to 0.200-inch (0.25mm to 5.0mm)
