Custom Die-cutable Insulation Thermal Heat Conduction Adhesive LED Double Sided Thermal Tape For Led Strip Light
Ziitek Technology Company is dedicated to providing a comprehensive range of thermal management products and services to meet various demand scenarios. Ziitek Technology offers prompt and flexible services. Our thermal conductive materials are widely used in the fields of new energy, electronic appliances, transportation, industry, military, healthcare, communication, etc. Ziitek has obtained ISO9001, ISO14001 and IECQ certifications, which indicate our commitment to producing high-quality products and adopting excellent management methods. Our products comply with RoHS, REACH and UL standards, ensuring safety and reliability.

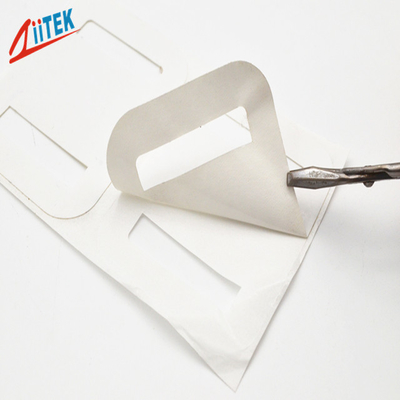

The TIA®800 Series is filled with good thermal conductivity ceramic particles, featuring excellent thermal conductivity, strong adhesion and electrical insulation. It is suitable for bonding and fixing electronic components to heat sinks or housings, such as LED modules, power devices, communication equipment and other scenarios. The product is solvent-free, pollution-free, easy to construct, and can replace the traditional combination scheme of screw fixation and thermal conductive grease.
Features
> Thermal Conductivity: 0.8W/mK
> High performance,thermally conductive acrylic adhesive.
> Hihg bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
Applications
> Mount heat sink onto BGA graphic processor or drive processor
> Mount heat spreader onto power converter PCB or onto motor control PCB
> High performance, thermally conductive acrylic adhesive
> Can be used instead of heat cure adhesive,screw mounting or clip mounting
| Typical Properties of TIA®800 Series |
| Product Name |
TIA®802 |
TIA®804 |
TIA®806 |
TIA®808 |
TIA®810 |
TIA®812 |
TIA®815 |
Test Method |
| Color |
White |
Visual |
| Adhesive Type |
Acrylic Adhesive |
****** |
| Continuous Use Temp |
-40℃ to 125℃ |
****** |
| Thickness |
0.002" 0.05mm |
0.004" 0.10mm |
0.006" 0.15mm |
0.008" 0.20mm |
0.010" 0.25mm |
0.012" 0.30mm |
0.015" 0.38mm |
ASTM D374 |
| Voltage Breakdown |
≥600 |
≥1200 |
≥1800 |
≥2500 |
≥2700 |
≥3000 |
≥4000 |
ASTM D149 |
| Thermal Conductivity |
0.8 W/mK |
ASTM D5470 |
| 180° Peel Adhesion (gf/inch) Steel, Immediate |
≥ 1200 |
ASTM D3330 |
| 180° Peel Adhesionk (gf/inch) Steel, 24 hrs |
≥ 1400 |
ASTM D3330 |
| Holding Power (H/inch) @25℃ |
≥ 48 Hours |
ASTM D3654 |
| Holding Power (H/inch) @80℃ |
≥ 48 Hours |
ASTM D3654 |
Product Specifications
Standard Thickness:
0.002"(0.05 mm), 0.004"(0.10 mm), 0.006"(0.15 mm),
0.008"(0.20 mm), 0.010"(0.25 mm),0.012"(0.30mm), 0.015"(0.38mm)
Standard Size: 16" x 100" (406 mm x 30.48 M)
Reinforcing Carrier: TIA®800 Series rolls can be reinforced with glass fiber.

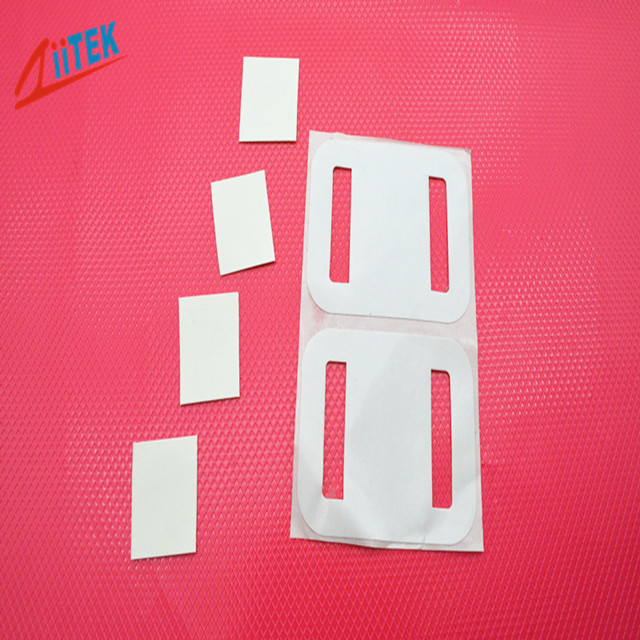

The TIA® series can be provided with die-cutting into vaious shapes, For different thicknesses or more information about
thermally conductive materials, please contact our company.
