Thermal Release Tape Heat-Resistant Adhesive Thermal Conductive Double Sided Tape

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIA802

Payment & Shipping Terms:

Minimum Order Quantity:	1000rolls
Price:	0.1-10 USD/pcs
Packaging Details:	242312cm
Delivery Time:	3-6 work days
Payment Terms:	T/T
Supply Ability:	1000000rolls/month

Contact Now

Detailed Product Description

Color:	White	Feature:	Fiberglass Adhesive Double Side
Keywords:	Thermal Conductive Double Sided Tape	Application:	LED Light
Name:	Custom Die-cutable Insulation Thermal Heat Conduction Adhesive LED Double Sided Thermal Tape For Led Strip Light	Adhesive Type:	Acrylic Adhesive
Highlight:	Heat Resistant Thermal Release Tape , Double Sided Thermal Release Tape , Heat Resistant Thermal Conductive Tape

Thermal Release Tape Heat-Resistant Feature Adhesive Thermal Conductive Double Sided Tape

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

The TIA™800 Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.

TIA800-Series-Datasheet-REV01.pdf

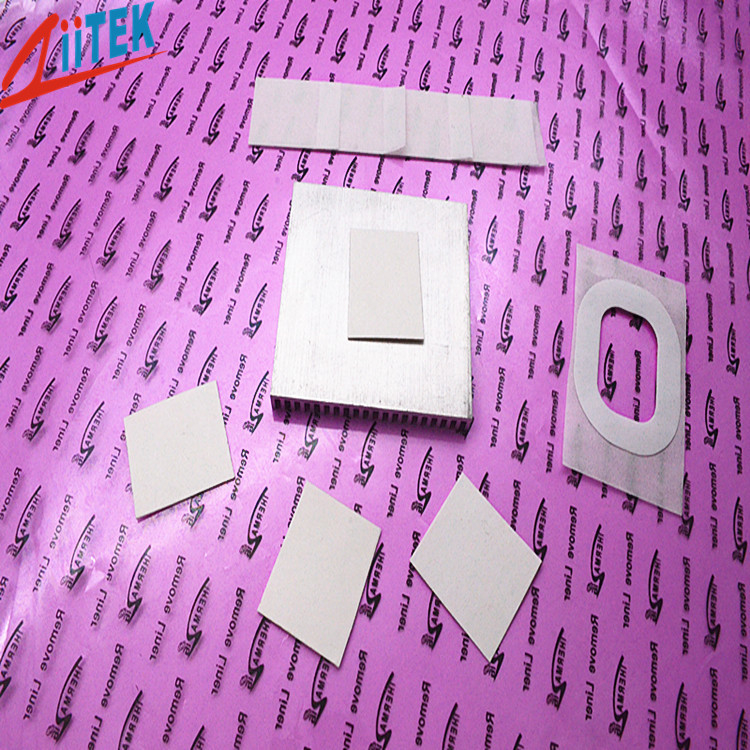

Thermal Release Tape Heat-Resistant Adhesive Thermal Conductive Double Sided Tape 0

Features

> Thermal Conductivity: 0.8W/mK
> High performance,thermally conductive acrylic adhesive.

> Hihg bond strength to a variety of surfaces double sided pressure sensitive adhesive tape

Applications

> Mount heat sink onto BGA graphic processor or drive processor
> Mount heat spreader onto power converter PCB or onto motor control PCB
> High performance, thermally conductive acrylic adhesive
> Can be used instead of heat cure adhesive,screw mounting or clip mounting

Typical Properties of TIA™800 Series
Product Name	TIA^TM802	TIA^TM804	TIA^TM806	TIA^TM808	TIA^TM810	TIA^TM812	TIA^TM815	Test Method
Color	White							Visual
Adhesive Type	Acrylic Adhesive							********
Backing Type	N/A							********
Continuous Use Temp	-45℃ to 120℃							********
Composite Thickness	0.0019" 0.05mm	0.004" 0.101mm	0.006" 0.152mm	0.008" 0.203mm	0.010" 0.254mm	0.012" 0.304mm	0.015" 0.381mm	ASTM D374
Voltage Breakdown	> 600Vac	> 1200Vac	> 1800 Vac	>2500 Vac	> 2700 Vac	> 3000 Vac	> 4000 Vac	ASTM D149
180 Peel Adhesion	>1200 g/inch (Steel, Immediate)							PSTC-1
180 Peel Adhesion	>1400 g/inch (Steel after 24hrs)							PSTC-1
Holding Power 25℃/Hours	> 48 Hours							PSTC-7
Holding Power 80℃/Hours	> 48 Hours							PSTC-7
Thermal Conductivity	0.8W/mK							ASTM D5470

Standard Thicknesses:
0.0019"(0.05mm), 0.004"(0.101mm) , 0.006" 0.152mm, 0.008" 0.203mm, 0.010" 0.254mm,

0.012" 0.304mm, 0.015" 0.381mm
Consult the factory alternate thickness.

Standard Sizes:
16" x 100"(406mm x 30.48mm)

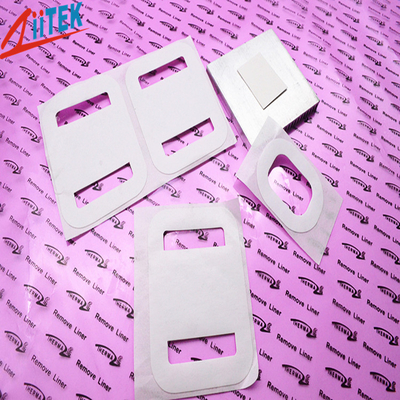

Individual die cut shapes can be supplied.

Reinforcement:

TIA800 series rolls type can add with fiberglass reinforced.
