Name: Home Appliance Industry 0.5-5.0mmT Thickness Silicone Thermal Pad For LED Light
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF1120-02S Series
Price: 4.10 USD
Availability: InStock

Home Products Silicone Thermal Pad

Home Appliance Industry 0.5-5.0mmT Thickness Silicone Thermal Pad For LED Light

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIF1120-02S Series

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-5 work days
Payment Terms:	T/T
Supply Ability:	1000000 pcs/month

Contact Now

Detailed Product Description

Products Name:	Home Appliance Industry 0.5-5.0mmT Thickness Gray Silicone Thermal Pad For LED Light	Color:	Gray White
Dielectric Constant:	4.5 MHz	Thickness:	0.5-5.0mmT
Breakdown Voltage（V/mm）:	≥5500	Fire Rating:	94 V0
Thermal Conductivity:	1.5W/m-K	Keywords:	Silicone Thermal Pads
Application:	Home Appliance Industry
Highlight:	3.0mmT Silicone Thermal Pad , 2.23 G/CC Silicone Thermal Pad , fiberglass reinforced silicon thermal pad

Home Appliance Industry 0.5-5.0mmT Thickness Gray Silicone Thermal Pad For LED Light

The TIF^®1120-02S Series is a well-balanced, general-purpose thermal pad. It offers good thermal conductivity and moderate hardness. This balanced design provides both excellent surface conformity and superior ease of use, making it capable of effectively transferring heat and providing basic physical protection for a wide range of electronic components.

Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Features

> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available

> High tack surface reduces contact resistance
> Soft and Compressible for low stress applications
>Moldability for complex parts

Applications

> LED TV / LED Lit Lamps
> CD-Rom, DVD-Rom cooling
> SAD-DC Power Adapters
> CPU
> display card

> Micro heat pipe thermal solutions
> Memory Modules

> routers

> Telecommunication hardware

>Heat pipe thermal solutions

Typical Properties of TIF^®100-02S Series
Property	Value		Test method
Color	Gray white		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	2.3		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.5)	(0.75~5.0)
Hardness	65 Shore 00	45 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥5500		ASTM D149
Dielectric Constant	4.5 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Thermal Conductivity (W/m-K)	1.5		ASTM D5470
	1.5		ISO22007
Fire rating	V-0		UL 94 (E331100)

Product Specifications

Standard Thickness: 0.010" (0.25 mm)～0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16" X16" (406 mm X406 mm).

Component Codes:

Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIF^® series is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

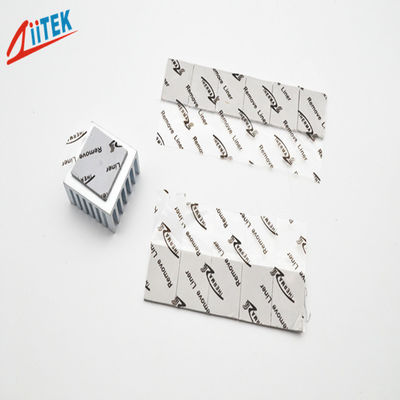

Home Appliance Industry 0.5-5.0mmT Thickness Silicone Thermal Pad For LED Light 0

Advantage

Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
