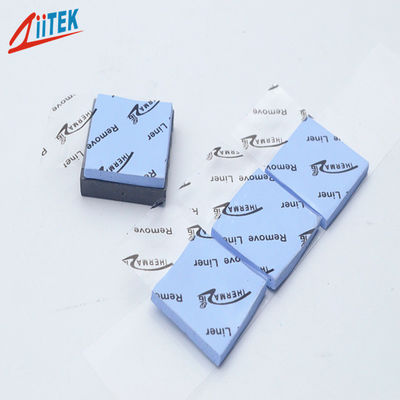

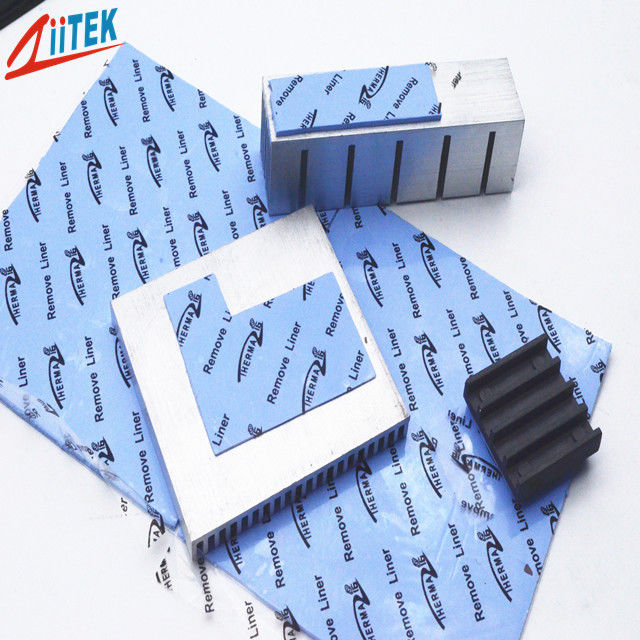

New developed Outstanding thermal performance thermal gap pad 0.5-5.0mmT Silicon Thermal Pad For Display Card

New developed Outstanding thermal performance thermal gap pad 0.5-5.0mmT Silicon Thermal Pad For Display Card

  • New developed  Outstanding thermal performance  thermal gap pad 0.5-5.0mmT Silicon Thermal Pad For Display Card
  • New developed  Outstanding thermal performance  thermal gap pad 0.5-5.0mmT Silicon Thermal Pad For Display Card
New developed  Outstanding thermal performance  thermal gap pad 0.5-5.0mmT Silicon Thermal Pad For Display Card
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF180-05S Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*23*12cm cantons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Thickness Range: 0.5-5.0mmT Color: Blue
Dielectric Constant: 4.5 MHz Dielectric Breakdown Voltage: >5500 VAC
Fire Rating: 94 V0 Thermal Conductivity: 1.5W/m-K
High Light:

2.0mmT Silicon Thermal Pad

,

5.5 MHz Silicon Thermal Pad

,

45 shore 00 blue thermal pad

New developed Outstanding thermal performance thermal gap pad 0.5-5.0mmT Silicon Thermal Pad For Display Card



Company Profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.

Our vast experience allows us to assist our customers best in thermal engineering field.

We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!



The TIF180-05S Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.


Features
> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized

>Easy release construction
> Broad range of hardnesses available

> High tack surface reduces contact resistance
> Soft and Compressible for low stress applications
> Outstanding thermal performance


Applications
LED TV / LED Lit Lamps
> CD-Rom, DVD-Rom cooling
> SAD-DC Power Adapters
> CPU
> display card

> Micro heat pipe thermal solutions
> Memory Modules

routers

>Semiconductor automated test equipment (ATE)

>Heat pipe thermal solutions




                                            Typical Properties of TIF180-05S Series

Color
Blue
Visual
Composite Thickness
Thermal Impedance @10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20
Specific Gravity
2.3 g/cc
ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness range 0.020"-0.200"
ASTM C351
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness
45 Shore 00
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Dielectric Breakdown Voltage



>5500 VAC
ASTM D412
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp



-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Outgassing(TML)
0.35%
ASTM E595
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant
4.5 MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20



Volume Resistivity
1.0X10"
Ohm-meter
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity
1.5W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470

Standard Sheets Sizes:


8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.


Reinforcement:


TIF™ series sheets type can add with fiberglass reinforced.



Standard Thicknesses:



0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.





Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

New developed  Outstanding thermal performance  thermal gap pad 0.5-5.0mmT Silicon Thermal Pad For Display Card 0







Advantage



Ziitek has independent R&D team. This team is experience, rigorous and pragmatic.

They undertake the core research and development tasks of Ziitek thermal conductive materials. With well-equipped testing equipment, we Ziitek can also do some tests with customers' samples, so we can find a more suitable Ziitek materials for every customer.



Why Choose us ?



1.Our value message is'' Do it right the First time, total quality control''.

2.Our core competencies is thermal conductive interface materials

3.Competitive advantage products.

4.Condidentiality agreement Bussiness Secrect Contract

5.Free sample offer

6.Quality assurance contract

























Reinforcement: TIF™ series sheets type can add with fiberglass reinforced
