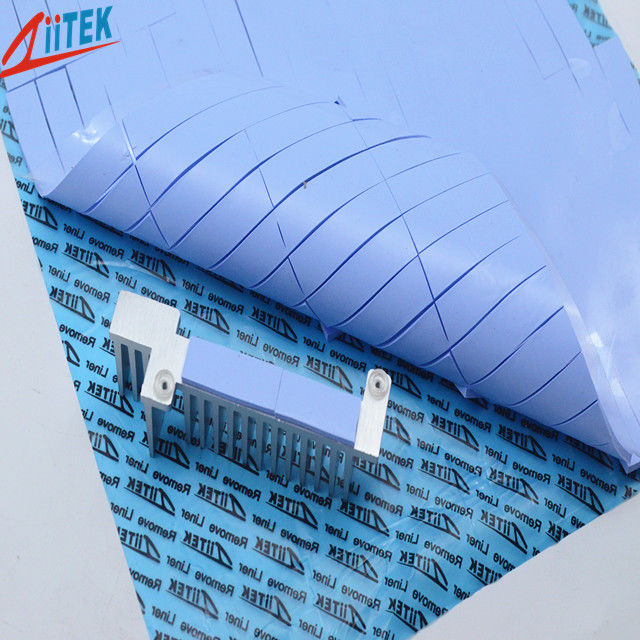

New developed low cost 2.13g/Cc Semiconductor Thermally Conductive Silicone Sheet 1.5W/M-K insulation for display card

New developed low cost 2.13g/Cc Semiconductor Thermally Conductive Silicone Sheet 1.5W/M-K insulation for display card

  • New developed low cost  2.13g/Cc Semiconductor Thermally Conductive Silicone Sheet 1.5W/M-K insulation for display card
  • New developed low cost  2.13g/Cc Semiconductor Thermally Conductive Silicone Sheet 1.5W/M-K insulation for display card
  • New developed low cost  2.13g/Cc Semiconductor Thermally Conductive Silicone Sheet 1.5W/M-K insulation for display card
  • New developed low cost  2.13g/Cc Semiconductor Thermally Conductive Silicone Sheet 1.5W/M-K insulation for display card
New developed low cost  2.13g/Cc Semiconductor Thermally Conductive Silicone Sheet 1.5W/M-K insulation for display card
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF1120-05E Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*23*12cm cantons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Thickness: 3.0mmT Specific Gravity: 2.13 G/cc
Dielectric Breakdown Voltage: >5000 VAC Thermal Conductivity: 1.5W/m-K
Color: Blue
High Light:

Semiconductor Thermally Conductive Silicone Sheet

,

Thermally Conductive Silicone Sheet 1.5W/M-K

,

2.13g/cc Silicone Thermal Pad

New developed low cost 2.13g/Cc Semiconductor Thermally Conductive Silicone Sheet 1.5W/M-K insulation for display card


The TIF1120-05E Series thermal silicone pad is a product with both performance and economy. It is a unique thermal pad with low oil permeability, low thermal resistance, high softness and high compliance.It can work stably at -40℃~160℃ and meet the requirement of UL94V0.

Features
> Good thermal conductive: 1.5W/mK
> Available in varies thickness
> UL recognized
> Broad range of hardnesses available
> High tack surface reduces contact resistance

> Electrically isolating


Applications
LED TV / LED Lit Lamps
> CD-Rom, DVD-Rom cooling
> SAD-DC Power Adapters
> CPU
> Memory Modules
routers
Telecommunication hardware

> Handheld portable electronics

> display card

> mainboard/mother board

> IT infrastructure

> GPS navigation and other portable devices



TIF100-05E Datasheet-REV02.pdf




                                            Typical Properties of TIF1120-05E Series

Color
Blue
Visual
Composite Thickness
Thermal Impedance @10psi
(℃-in²/W)
Construction &
Compostion
Ceramic filled silicone elastomer
***
10mils / 0.254 mm
0.16
20mils / 0.508 mm
0.20
Specific Gravity
2.13 g/cc
ASTM D297
30mils / 0.762 mm
0.31
40mils / 1.016 mm
0.36
Thickness range 0.010"-0.200"
ASTM C351
50mils / 1.270 mm
0.42
60mils / 1.524 mm
0.48
Hardness
35Shore 00
ASTM 2240
70mils / 1.778 mm
0.53
80mils / 2.032 mm
0.63
Dielectric Breakdown Voltage



>5000 VAC
ASTM D412
90mils / 2.286 mm
0.73
100mils / 2.540 mm
0.81
Continuos Use Temp



-40 to 160℃
***
110mils / 2.794 mm
0.86
120mils / 3.048 mm
0.93
Outgassing(TML)
0.55%
ASTM E595
130mils / 3.302mm
1.00
140mils /3.556 mm
1.08
Dielectric Constant
5.5 MHz
ASTM D150
150mils / 3.810 mm
1.13
160mils / 4.064 mm
1.20



Volume Resistivity
4.0X10"
Ohm-meter
ASTM D257
170mils / 4.318 mm
1.24
180mils / 4.572 mm
1.32
Fire rating
94 V0
equivalent
UL
190mils / 4.826 mm
1.41
200mils / 5.080 mm
1.52
Thermal conductivity
1.5W/m-K
ASTM D5470
Visua l/ ASTM D751
ASTM D5470

Standard Sheets Sizes:


8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.



Packaging Details & Lead time



The packaging of thermal pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized



Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated



Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.



Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
