2.0W/MK Thermal Conductive Silicone Pad Lightweight For Industrial Wifi Router

2.0W/MK Thermal Conductive Silicone Pad Lightweight For Industrial Wifi Router

  • 2.0W/MK Thermal Conductive Silicone Pad Lightweight For Industrial Wifi Router
  • 2.0W/MK Thermal Conductive Silicone Pad Lightweight For Industrial Wifi Router
  • 2.0W/MK Thermal Conductive Silicone Pad Lightweight For Industrial Wifi Router
2.0W/MK Thermal Conductive Silicone Pad Lightweight For Industrial Wifi Router
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL & RoHS
Model Number: TIF100N-20-16S
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10 USD/PCS
Packaging Details: 24*23*12cm cantons
Delivery Time: 3-5 work days
Payment Terms: T/T
Supply Ability: 1000000 pcs/month
Contact Now
Detailed Product Description
Keyword: LED Silicone Thermal Pad Rated Voltage:: >10kv
Thermal Conductivity: 4.7 W/mK Feature: Customized Size
Products Name: Thermally Conductive Interface Pads Using Temp: – 40 To 160 ℃
High Light:

2.0W/MK Thermal Conductive Silicone Pad

,

Lightweight Thermal Conductive Silicone Pad

,

Wifi Router Silicone Heat Transfer Pad

2.0W/mK low specific gravity thermal pad TIF100N-20-16S series for industrial wifi router

Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.

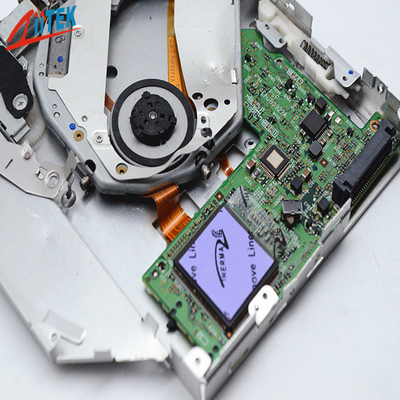

TIF100N-20-16S Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to coat very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the heating elements or even the entire PCB, which effecitly enhances the efficiency and life-time of the heat-generating electronic components.

TIF100N-20-16S-Series-Datasheet.pdf



Features






Good thermal conductive
RoHS compliant
UL recognized
Low weight, low specific gravity

Easy release construction



Applications


wifi routers
display card
medical devices
notebook
power supply
CPU thermal solutions
Memory Modules
Mass storage devices
Automotive electronics
Set top boxes
Automation





Typical Properties of TIFTM100N-20-16S Series
Property Value Test method
Color Blue-violet Visual
Construction Boron nitride filled silicone elastomer ******
Thickness range 0.02''(0.5mm)-0.2''(5.0mm) ASTM D374
Hardness(shore 00) 45 ASTM 2240
Specific Gravity 1.6g/cc ASTM D297
Operating Temp —40~160℃ ******
Dielectric Breakdown Voltage >5500 VAC ASTM D149
Dielectric Constant @1MHz 2.8MHz ASTM D150
Volume Resistivity ≥1.0*1012Ohm-cm ASTM D257
Thermal Conductivity(W/mK) 2.0 ASTM D5470
2.0 GB-T32064
Outgassing(TML) 0.60% ASTM E595




Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.


Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.


Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.


Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.


2.0W/MK Thermal Conductive Silicone Pad Lightweight For Industrial Wifi Router 0


Peressure Sensitive Adhesive:

Request adhesive on one side with "A1" suffix.

Request adhesive on double side with "A2" suffix.



Reinforcement: TIF™ series sheets type can add with fiberglass reinforced.
