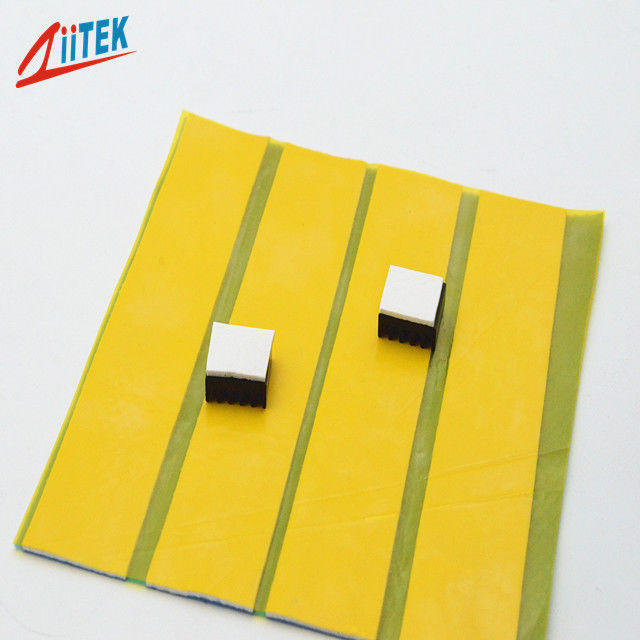

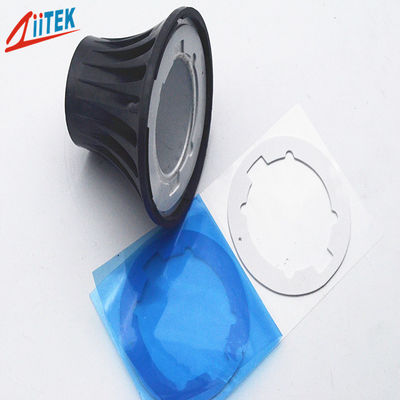

Name: 3.0 W/Mk Thermal Conductivity Silicone thermal Pad For Heat Pipe Thermal Solutions
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF1100-30-06US thermal pad
Price: 4.10 USD
Availability: InStock

Home Products CPU Thermal Pad

3.0 W/Mk Thermal Conductivity Silicone thermal Pad For Heat Pipe Thermal Solutions

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF1100-30-06US thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	241312cm cartons
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Products Name:	3.0 W/Mk Thermal Conductivity Silicone Thermal Pad For Heat Pipe Thermal Solutions	Hardness:	65/20 Shore00
Keywords:	Silicone Thermal Pad	Color:	White
Construction:	Ceramic Filled Silicon Material	Thermal Conductive:	3.0W/mK
Application:	Heat Pipe Thermal Solutions
Highlight:	3.0 w/mk silicone pad thermal conductivity , heat pipe silicone pad thermal conductivity , 3 w mk thermal pad for cpu

3.0 W/Mk Thermal Conductivity Silicone thermal Pad For Heat Pipe Thermal Solutions

Company Profile

Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.

TIF^®1100-30-06US is a silicone based, thermally conductive gap pad. Its unreinforced construction allows additional compliancy. This product has low hardness is conformable and is electrically isolating. The low modulus characteristic of the product offers optimal thermal performance with the ease of handling.

Features:

> Good thermal conductive: 3.0 W/mK
> Good softness and fillability
> Self-adhesive without the need for additional surface adhesives
> Good insulation performance

> RoHS compliant
> UL recognized

Applications:

> Semiconductor automated test equipment (ATE)
> CPU
> Display card
> Mainboard/mother board

> Medical Devices
> Auditioning electronic products
> Unmanned aerial vehicle(UAV)
> Photovoltaic
> Signal communication
> New energy vehicle
> Motherboard chip
> Radiator
> AI Processors AI Servers

Typical Properties of TIF^®100-30-06US Series
Property	Value		Test method
Color	White		Visual
Construction & Compostion	Ceramic filled silicone elastomer		******
Density(g/cm³)	3.0		ASTM D792
Thickness Range(inch/mm)	0.010~0.020	0.030~0.200	ASTM D374
	(0.25~0.50)	(0.75~5.00)
Hardness	65 Shore 00	20 Shore 00	ASTM 2240
Continuos Use Temp	-40 to 200℃		***
Breakdown Voltage(V/mm)	≥ 5500		ASTM D149
Dielectric Constant	7.0 MHz		ASTM D150
Volume Resistivity	＞1.0X10¹² Ohm-meter		ASTM D257
Thermal Conductivity (W/m-K)	3.0		ASTM D5470
	3.0		ISO22007
Fire rating	V-0		UL 94 (E331100)

Product Specifications
Standard Thickness: 0.010" (0.25 mm)～ 0.200" (5.00 mm) with increments of 0.010" (0.25 mm).
Standard Size: 16"×16" (406 mm ×406 mm).

Component Codes:
Reinforcement Fabric: FG (Fiberglass).
Coating Options: NS1 (Non-adhesive treatment),
DC1 (Single-sided hardening).
Adhesive Options: A1/A2 (Single-sided/Double-sided adhesive).

The TIFseries is available in custom shapes and various forms.
For other thicknesses or more information, please contact us.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

3.0 W/Mk Thermal Conductivity Silicone thermal Pad For Heat Pipe Thermal Solutions 1

FAQ

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .

Q: How much are the pads?

A: Price is depended on your size, thickness, quantity, and other requirements, such as adhesive and others. Please let us know these factors first so that we could give you an exact price.
