| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF160-01US thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Continuos Use Temp: | -40 To 160℃ | Thermal Conductivity: | 1.5 W/m-K |
|---|---|---|---|
| Keyword: | Thermal Gap Pad | Dielectric Constant@1MHz: | 2.9 MHz |
| Name: | Continuos Use Temp -40 To 160℃ Silicone Pads Outstanding Thermal Performance For LED | Thickness: | 1.5mmT |
| High Light: | 1.5 mm thermally conductive silicone sheet,led thermally conductive silicone sheet,1.5 mm thermal conductive silicone pad |
||

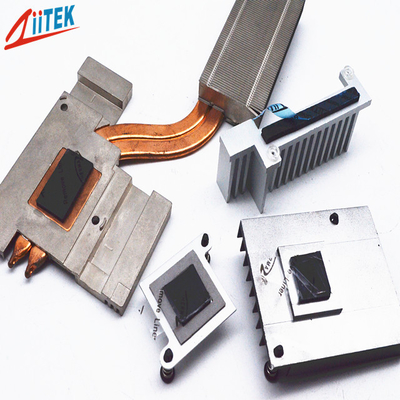

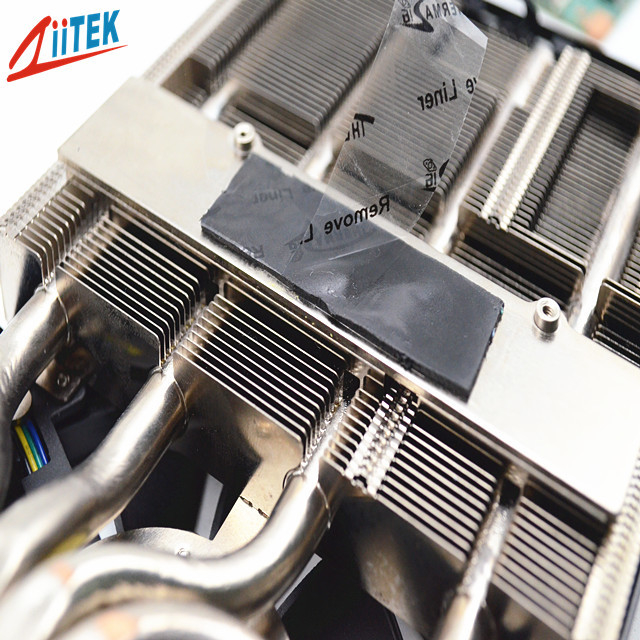

Continuos Use Temp -40 to 160℃ silicone pads Outstanding thermal performance for LED
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
TIF100-01US-Series-Datasheet.pdf
<Easy release construction
<Electrically isolating
<High durability
<LED Power Supply
<LED Controller
<LED Ceilinglamp
<Monitoring the Power Box
<AD-DC Power Adapters
<Rainproof LED Power
|
Typical Properties of TIFTIF160-01US
|
|||
|
Product Name
|
TIF160-01US Series |
||
|
Colour
|
Black | ||
|
Construction & Compostion
|
Ceramic filled silicone elastomer
|
||
|
Specific gravity |
1.9 g/cc
|
||
|
Thickness |
1.5mmT
|
||
|
Hardness
|
20 Shore 00
|
||
|
Dielectric constant@1MHz
|
2.9 MHz
|
||
|
Continuos Use Temp
|
-40 to 160℃
|
||
|
Dielectric Breakdown Voltage |
>5500 VAC
|
||
|
Thermal conductivity
|
1.5 W/mK
|
||
| Volume Resistivity |
1.0*1012 Ohm-cm |
||
Standard Thicknesses:
0.020" (0.51mm) 0.030" (0.76mm)
0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)
0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)
0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)
0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)
0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)
0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory to alternate thickness.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ
Q:How can we get detailed price list?
A:Please offer us detailed information of the product such as Size(length,width,thickness),color,specific packaging requirements and purchasing quantity.
Q: What kind of packaging you offer?
A: During the packaging process, preventive measures will be taken by us to assure that the goods are in a good condition during storage and delivery.
Contact Person: Miss. Dana
Tel: +86 18153789196
