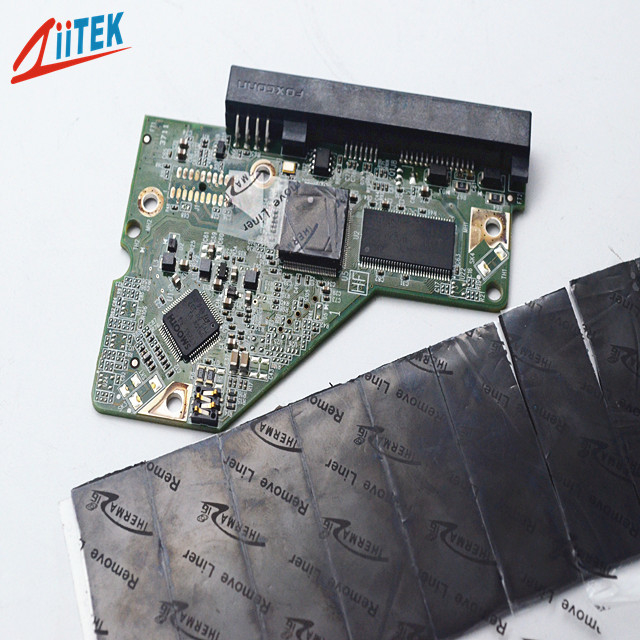

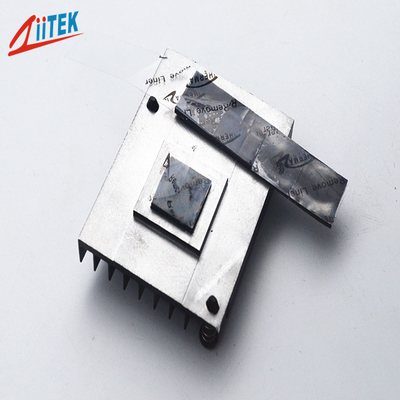

2.5mmt Silicone Thermal Pad For Automotive Engine Control Units

2.5mmt Silicone Thermal Pad For Automotive Engine Control Units

2.5mmt Silicone Thermal Pad For Automotive Engine Control Units
video
2.5mmt Silicone Thermal Pad For Automotive Engine Control Units
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF1100-01US thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Colour: Black Thickness: 2.5mmT
Application: Automotive Engine Control Units Continuos Use Temp: -40 To 160℃
Name: 2.5mmT Easy Release Construction Silicone Pads For Automotive Engine Control Units Keyword: Thermal Gap Pad
High Light:

2.5 mm silicone thermal pad

,

engine control units silicone thermal pad

,

2.5 mm thermal conductive silicone pad

2.5mmT Easy release construction silicone pads for Automotive engine control units



Company Profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.



TIF100-01US-Series-Datasheet.pdf



Ziitek TIF1100-01US use a special process, with silicone as the base material, adding thermal conductive powder and flame retardant together to make the mixture to become thermal interface material. This is effective in lower the thermal resistance between the heat source and the heat sink.



<Good thermal conductive:1.5 W/mK
<Thickness: 2.5mmT
<Hardness:20 Shore 00
<Colour: Black

<Moldability for complex parts
<Outstanding thermal performance
<High tack surface reduces contact resistance






Applications

<Automotive engine control units
<Telecommunication hardware
<Handheld portable electronics
<Semiconductor automated test equipment (ATE)
<CPU
<display card



Typical Properties of TIFTIF1100-01US

Product Name

TIF1100-01US Series

Colour
Black
Construction & Compostion
Ceramic filled silicone elastomer

Specific gravity

1.9 g/cc

Thickness

2.5mmT
Hardness
20 Shore 00
Dielectric constant@1MHz
2.9 MHz
Continuos Use Temp
-40 to 160℃

Dielectric Breakdown Voltage

>5500 VAC
Thermal conductivity
1.5 W/mK
Volume Resistivity

1.0*1012 Ohm-cm



Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL


2.5mmt Silicone Thermal Pad For Automotive Engine Control Units 0




Ziitek Culture

Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.






2.5mmt Silicone Thermal Pad For Automotive Engine Control Units 1

FAQ
Q: How do I request customized samples?
A: To request samples, you can leave us message on website, or just contact us by send email or call us.
Q: What's the thermal conductivity test method given on the data sheet ?
A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.
