| Place of Origin: | China |
| Brand Name: | Ziitek |
| Certification: | UL |
| Model Number: | TIF1200-01US thermal pad |
| Minimum Order Quantity: | 1000 pcs |
|---|---|
| Price: | 0.1-10 USD/PCS |
| Packaging Details: | 25*24*13cm canton |
| Delivery Time: | 3-8 work days |
| Payment Terms: | T/T |
| Supply Ability: | 100000pcs/month |
| Application: | Semiconductor Automated Test Equipment (ATE) | Thickness: | 5.0mmT |
|---|---|---|---|
| Specific Gravity: | 1.9 G/cc | Continuos Use Temp: | -40 To 160℃ |
| Keyword: | Thermal Gap Pad | Name: | 5.0mmT Naturally Tacky Needing No Further Adhesive Coating Silicone Pads For ATE |
| High Light: | 5.0mmt silicone thermal pad,ate silicone thermal pad,5.0mmt thermal conductive silicone pad |
||

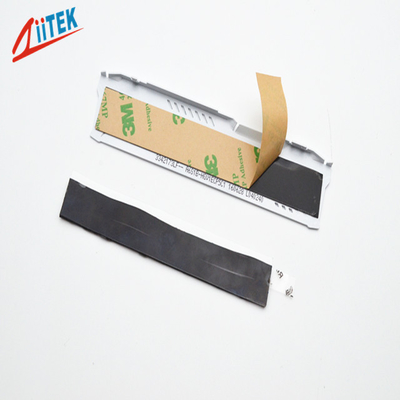

5.0mmT Naturally tacky needing no further adhesive coating silicone pads for ATE
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
TIF100-01US-Series-Datasheet.pdf
<Outstanding thermal performance
<High tack surface reduces contact resistance
<RoHS compliant
<Automotive engine control units
<Telecommunication hardware
<Handheld portable electronics
<Semiconductor automated test equipment (ATE)
<CPU
<display card
|
Typical Properties of TIFTIF1200-01US
|
|||
|
Product Name
|
TIF1200-01US Series |
||
|
Colour
|
Black | ||
|
Construction & Compostion
|
Ceramic filled silicone elastomer
|
||
|
Specific gravity |
1.9 g/cc
|
||
|
Thickness |
5.0mmT
|
||
|
Hardness
|
20 Shore 00
|
||
|
Dielectric constant@1MHz
|
2.9 MHz
|
||
|
Continuos Use Temp
|
-40 to 160℃
|
||
|
Dielectric Breakdown Voltage |
>5500 VAC
|
||
|
Thermal conductivity
|
1.5 W/mK
|
||
| Volume Resistivity |
1.0*1012 Ohm-cm |
||
Standard Sheets Sizes:
8" x 16"(203mm x 406mm)
TIF™ series Individual die cut shapes can be supplied.
