0.25mmt High Durability Thermal Pad Silicone 5.0 Mhz For Heat Pipe Thermal Solutions

0.25mmt High Durability Thermal Pad Silicone 5.0 Mhz For Heat Pipe Thermal Solutions

0.25mmt High Durability Thermal Pad Silicone 5.0 Mhz For Heat Pipe Thermal Solutions
video
0.25mmt High Durability Thermal Pad Silicone 5.0 Mhz For Heat Pipe Thermal Solutions
Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: UL
Model Number: TIF110-30-06UF thermal pad
Payment & Shipping Terms:
Minimum Order Quantity: 1000 pcs
Price: 0.1-10 USD/PCS
Packaging Details: 25*24*13cm canton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Color: White Name: 0.25mmT High Durability Silicone Pads For Heat Pipe Thermal Solutions,5.0 MHz
Keyword: Thermal Gap Pad Thickness: 0.25mmT
Specific Gravity: 3.0 G/cc Construction & Compostion: Ceramic Filled Silicone Elastomer
Highlight:

0.25mmt thermal pad silicone

,

high durability thermal pad silicone

,

0.25mmt thermal conductive silicone pad

0.25mmT High durability silicone pads for Heat pipe thermal solutions,5.0 MHz



Company Profile

With a wide range, good quality, reasonable prices and stylish designs, Ziitek thermal conductive interface materials are extensively used in Mainboards, VGA cards, Notebooks, DDR&DDR2 products, CD-ROM ,LCD TV, PDP products, Server Power products, Down lamps, Spotlights, Street lamps, Daylight lamps, LED Server Power products and others.



TIF100-30-06UF-Series-Datasheet-.pdf



Ziitek TIF110-30-06UF is not only designed to take advantage of the gap heat transfer, to fill gaps, complete the heat transfer between heating and cooling parts, but also played insulation, damping, sealing and so on, to meet the equipment miniaturization and ultra-thin design Requirements, which is a highly technology and use, and the thickness of the wide range of applications, is also an excellent thermal conductivity filler material.





<Good thermal conductive:3.0 W/mK
<Thickness: 0.25mmT
<Hardness:75±5 Shore 00
<Colour: White

<UL recognized
<Fiberglass reinforced for puncture, shear and tear resistance
<Easy release construction









Applications

<mainboard/mother board

<notebook

<power supply

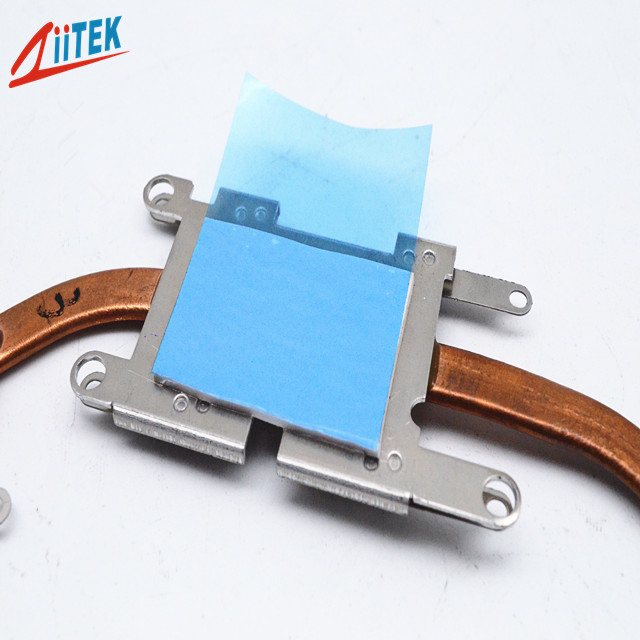

<Heat pipe thermal solutions

<Memory Modules

<Mass storage devices




Typical Properties of TIF110-30-06UF

Product Name

TIF110-30-06UF Series

Colour
White
Construction & Compostion
Ceramic filled silicone elastomer

Specific gravity

3.0 g/cc

Thickness

0.25mmT
Hardness
75±5 Shore 00
Dielectric constant@1MHz
5.0 MHz
Continuos Use Temp
-40 to 160℃

Dielectric Breakdown Voltage

>5500 VAC
Thermal conductivity
3.0 W/mK
Volume Resistivity

2.3*1013 Ohm-cm





Standard Thicknesses:



0.020" (0.51mm) 0.030" (0.76mm)

0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm)

0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm)

0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm)

0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm)

0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm)

0.190" (4.83mm) 0.200" (5.08mm)



Consult the factory to alternate thickness.
