High Compression Customized High Temperature Resistant Foam Sheet Silicone Foam Sheet For Buffer Pads And Washers
Company Profile
Ziitek company is a manufacturer of thermal conductive gap fillers, low melting point thermal interface materials, thermal conductive insulators, thermally conductive tapes, electrically & thermally conductive Interface pads and thermal grease,Thermal Conductive plastic,Silicone Rubber,Silicone Foams,Phase Changing Materials products, with well-equipped testing equipment and strong technical force.
Products description

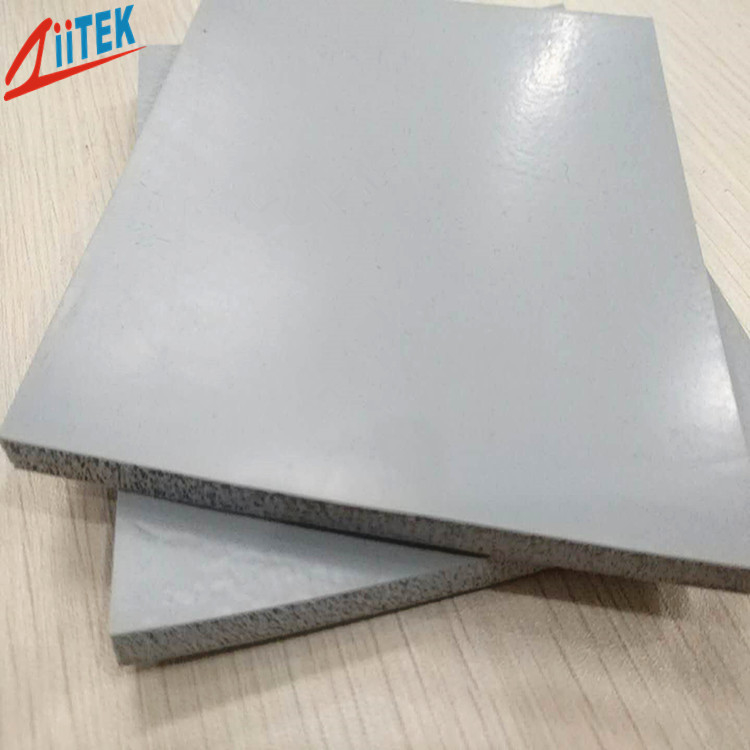

Z-Foam800-10EC Series foamed silicone is a foam material formed by the foaming of polysiloxane, retaining the excellent properties of silicone polymers,such as resistance to high and low temperatures,ultraviolet light, ozone, weatherability, insulation, and environmental friendliness, while also possessing the characteristics of foam materials, including low density, excellent sound absorption,and shock resistance. Its outstanding compressive deformation resistance, creep resistance, flame retardancy, and mechanical fatigue resistance make it an ideal material for various high-performance applications such as sealing, vibration damping, cushioning, sound insulation, protection, insulation, fireproofing, and noise absorption.
Features
> Good cushioning and high compression.
> Resistance to ultraviolet light,ozone.
> Provides enhanced sealing performance.
> Compressed after using a good recovery.
Application
> Car Battery
> Traffic Equipment
> Communication & Electrical Equipment
> Electronic products
> Charging Pile
| Typical Properties of Z-Foam®800-10EC Series |
| Properties |
Value |
Test method |
| Color |
Gray |
Visual |
| Structure & Component |
Silicone rubber |
- |
| Density (g/cm3) |
0.20 |
ASTM D1056 |
| Compressive Stress (kPa) @25% |
20±3 |
ASTM D1056 |
| Compression Set (%)) @100℃ |
＜3.0 |
ASTM D1056 |
| Tensile Strength (MPa) |
≥0.3 |
ASTM D412 |
| Elongation At Break (%) |
≥90 |
ASTM D570 |
| Water Absorption (%) |
≤5.0 |
ASTM D412 |
| Volume Resistivity (Ω·cm) |
≥1.0 x 1015 |
ASTM D257 |
| Recommended Operating Temperature (℃)) |
-55~200 |
- |
| Flame Rating |
V-0 |
UL94 (E331100) |
Standard Sheet Size:23" x 60" (584mm x 1524mm)

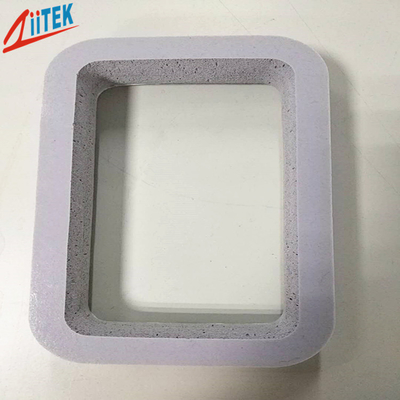

Z-Foam® Series can be die-cut into different shapes provided.
For More different thickness,please contact us.
Our services
Online-service : 12 hours , Inquiry reply within fastest.
Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).
Well-trained & experienced staff are to answer all your inquiries in English of course.
Standard Export Carton Or Marked With Customer's Information Or Customized.
Provide free samples
After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.
we will help you to deal with it and give you satisfactory solution.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
