High Temperature Resistance Excellent Sound Absorption Silicone Foaming Material For Electric Vehicle
Company profile
Ziitek company is a high-tech enterprise dedicated to the R&D, manufacture and sales of thermal interface materials (TIMs). With rich experience in this field, we provide the latest, most effective one-step thermal management solutions. Our facility includes advanced production equipment, full test equipment, and fully automatic coating production lines capable of manufacturing high performance thermal products including:
Thermal gap pad
Thermal graphite sheet/film
Thermal double-sided tape
Thermal insulation pad
Thermal grease
Phase change material
Thermal gel
All products are compliant with UL94 V-0, SGS and ROHS standards.
Certifications: ISO9001:2015, ISO14001:2004, IATF16949:2016, IECQ QC 080000:2017, UL
Products description

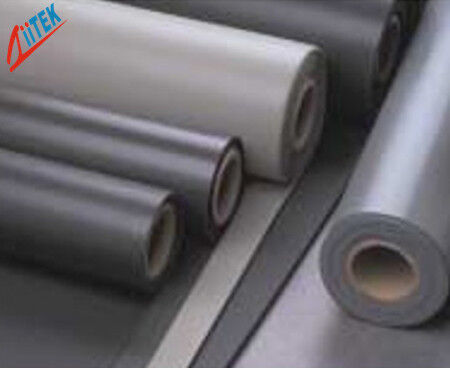

Z-Foam®800-10SC series foamed silicone is a foam material formed by the foaming of polysiloxane, retaining the excellent properties of silicone polymers, such as resistance to high and low temperatures, ultraviolet light, ozone, weatherability, insulation, and environmental friendliness, while also possessing the characteristics of foam materials, including low density, excellent sound absorption, and shock resistance. Its outstanding compressive deformation resistance,creep resistance,flame retardancy,and mechanical fatigue resistance make it an ideal material for various high-performance applications such as sealing,vibration damping,cushioning, sound insulation, protection, insulation, fireproofing, and noise absorption.
Features
> Resistant to mechanical fatigue
> Resistant to ozone and ultraviolet rays
> Good insulation properties
> Excellent flame retardant performance
> Excellent resistance to compression set and creep
Application
> Communication Equipment
> Smart Devices
> Cables and Optical Fibers
> Airplanes, High-Speed Trains,Automobiles
> Telecommunication and Electrical Cabinets
| Typical Properties of Z-Foam®800-10SC Series |
| Properties |
Value |
Test method |
| Color |
Gray |
Visual |
| Structure & Component |
Silicone rubber |
- |
| Density (g/cm3) |
0.37 |
ASTM D1056 |
| Compressive Stress (kPa) @25% |
75±20 |
ASTM D1056 |
| Compression Set (%) @100℃ |
＜5.0 |
ASTM D1056 |
| Tensile Strength (MPa) |
≥0.3 |
ASTM D412 |
| Elongation At Break (%) |
≥80 |
ASTM D412 |
| Water Absorption (%) |
≤5.0 |
ASTM D570 |
| Volume Resistivity (Ω·cm) |
≥1.0 x 1014 |
ASTM D257 |
| Temperature Range (℃)) |
-55~200 |
- |
| Flame Rating |
V-0 |
UL94 (E331100) |
Standard Sheet Size: 20" x 49"(500mm x 15m)
Z-Foam® Series can be die-cut into different shapes provided.
For More different thickness,please contact us.
