Fiberglass Of Backing Type Thermal Conductive Double Side Tape For LED Lamp And Power Device

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIA800FG
Document:	TIA800FG_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000rolls
Price:	0.1-10 USD/pcs
Packaging Details:	241312cm cartons
Delivery Time:	3-7 work days
Payment Terms:	T/T
Supply Ability:	1000000rolls/month

Contact Now

Detailed Product Description

Products Name:	Fiberglass Of Backing Type Thermal Conductive Double Side Tape For LED Lamp And Power Device	Color:	White
Feature:	Easy To Apply And Can Be Die-cut Into Custom Sizes	Keywords:	Double Sided Thermal Tape
Application:	LED Lamp And Power Device	Sample:	Free
Adhesive Type:	Acrylic Adhesive
Highlight:	Fiberglass Double Sided Thermal Tape , Fiberglass Adhesive Double Sided Thermal Tape , LED Lamp Double Sided Thermal Tape

Fiberglass Of Backing Type Thermal Conductive Double Side Tape For LED Lamp And Power Device

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market.Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

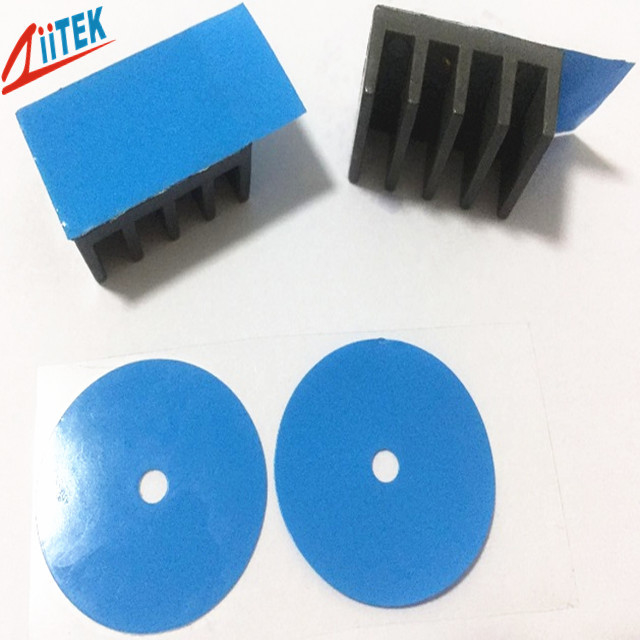

The TIA^®800FG Series is widely used for bonding heat sinks to microprocessors and other power consuming semiconductors. These tapes have strong adhesive strength and good thermal conductivity, aiming to replace traditional mechanical fixation and thermal conductive silicone grease, simplify assembly processes, improve product reliability, and are an ideal choice for solving the heat dissipation challenges of modern compact electronic devices.

Features

> High bonding strength
> Good thermal conductivity efficiency

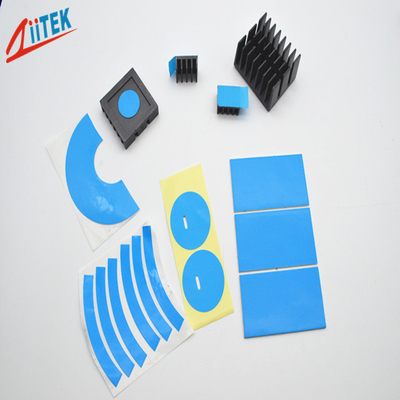

> Easy to apply and can be die-cut into custom sizes
> Stable operation over a wide temperature range

Applications

> LED module
> Power device
> Consumer electronics
> Communication equipment

Typical Properties of TIA^®800FG Serie
Product Name	TIA^®805FG	TIA^®806FG	TIA^®808FG	TIA^®810FG	TIA^®812FG	TIA^®815FG	TIA^®820FG	Test Method
Color	White							Visual
Adhesive Type	Acrylic Adhesive							********
Backing Type	Fiberglass							********
Recommended Operating Temperature(℃)	-40 ~ 125							********
Composite Thickness(inch/mm)	0.005 0.13	0.006 0.15	0.008 0.20	0.010 0.25	0.012 0.30	0.015 0.38	0.020 0.51	ASTM D374
Voltage Breakdown(V))	≥2500	≥3000	≥3500	≥4000	≥4200	≥4500	≥5000	ASTM D149
Thermal Conductivity(W/mK)	0.8							ASTM D5470
180° Peel Adhesion (gf/inch) Steel, Immediate	≥ 1000							ASTM D3330
180° PeelA dhesion (gf/inch) Steel, Steel 24 hrs	≥ 1200							ASTM D3330
Holding Power (H/inch) @25℃	≥ 48							ASTM D3654
Holding Power (H/inch) @80℃	≥ 48							ASTM D3654
