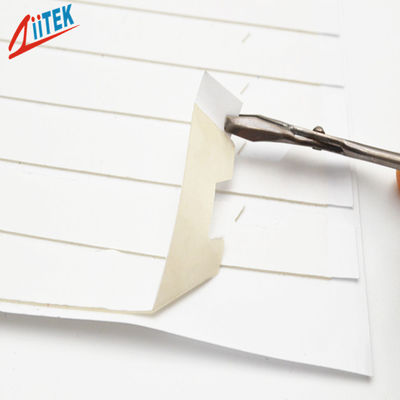

Name: Aluminum Foil High-Performance Thermal Conductive Acrylic Adhesive Tape Heat-Conductive Double-Sided Adhesive For Power Device
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIA808AL
Price: 4.10 USD
Availability: InStock

Home Products Double Sided Thermal Tape

Aluminum Foil High-Performance Thermal Conductive Acrylic Adhesive Tape Heat-Conductive Double-Sided Adhesive For Power Device

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIA808AL
Document:	TIA800AL_Data Sheet.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1000rolls
Price:	0.1-10 USD/pcs
Packaging Details:	241312cm cartons
Delivery Time:	3-6 work days
Payment Terms:	T/T
Supply Ability:	1000000rolls/month

Contact Now

Detailed Product Description

Products Name:	Aluminum Foil High-Performance Thermal Conductive Acrylic Adhesive Tape Heat-Conductive Double-Sided Adhesive For Power Device	Keywords:	Heat-Conductive Double-Sided Adhesive
Thermal Conductivity:	1.6W/mK	Applciation:	LED Products
Backing Type:	Aluminum Foil	180°Peel Adhesion (gf/inch) Steel, Immediate:	≥1200
Recommanded Operating Temperature（C):	-40℃ To 125℃	Color:	White
Highlight:	Heat Conductive Acrylic Adhesive Tape , Thermal Conductive Acrylic Adhesive Tape , Double-Sided Acrylic Adhesive Tape

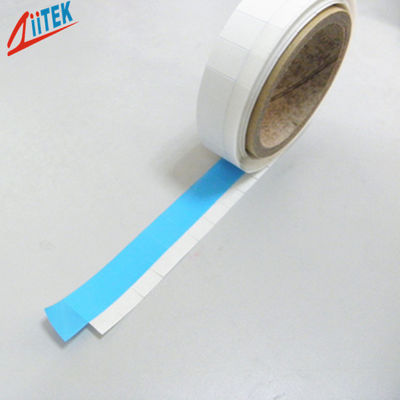

Aluminum Foil High-Performance Thermal Conductive Acrylic Adhesive Tape Heat-Conductive Double-Sided Adhesive For Power Device

The TIA^®800AL Series is widely used for bonding heat sinks to microprocessors and other power consuming semiconductors. These tapes have strong adhesive strength and good thermal conductivity, aiming to replace traditional mechanical fixation and thermal conductive silicone grease,simplify assembly processes,improve product reliability,and are an ideal choice for solving the heat dissipation challenges of modern compact electronic devices.

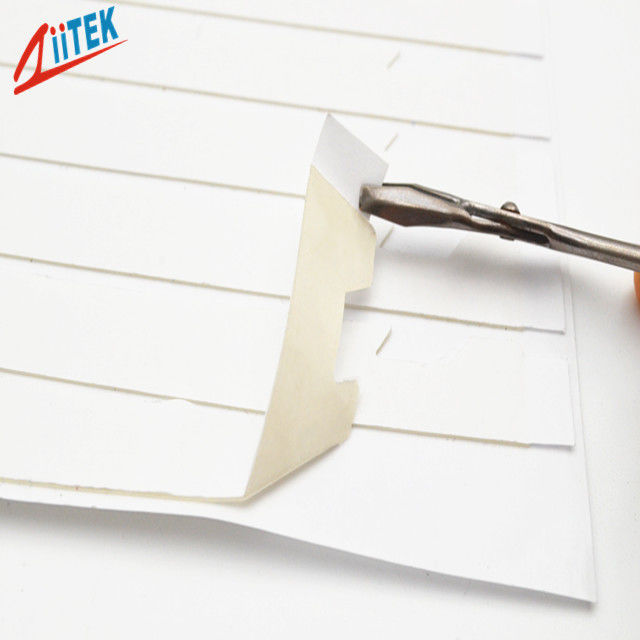

Aluminum Foil High-Performance Thermal Conductive Acrylic Adhesive Tape Heat-Conductive Double-Sided Adhesive For Power Device

Feature

> Thermal Conductivity 1.6W/mK.

> High performance, thermally conductive acrylic adhesive.
> High bond strength to a variety of surfaces.

> Double sided pressure sensitive adhesive tape.

> Can be used instead of heat cureadhesive, screw mounting or clipmounting.

Application

> LED Power Supply
> LED Controller
> LED Lights
> LED Ceilinglamp
> Piranha wroof and common lED module
> LED module for Channelletters
> SMD LED module
> LED Flesible strip, LED bar
> LED PanelLight

Typical Properties of TIA^®806AL Series
Products Name	TIA^®806AL	TIA^®806AL	TIA^®806AL	Test Method
Color	White			Visual
Adhesive Type	Acrylic Adhesive			-
Backing Type	Aluminum Foil			-
Recommanded Operating Temperature(℃)	-40~125			-
Thickness (inch/mm)	0.006/ 0.15	0.008/0.20	0.010/0.25	ASTM D374
Breakdown Voltage(V)	≥ 1000	≥ 1200	≥ 1500	ASTM D149
Thermal Conductivity (W/mK)	1.6			ASTM D5470
180°Peel Adhesion (gf/inch) Steel, Immediate	≥ 1200			ASTM D149
180°Peel Adhesion (gf/inch) Steel, 24hrs	≥ 1400			JIS K02378
Holding Power (H/inch) @25℃	≥ 48			JIS K023711
Holding Power (H/inch) @80℃	≥ 48			JIS K023711

Product Specifications

Standard Thickness:0.006"(0.15 mm),0.008"(0.20 mm),0.010" (0.25 mm)
Standard Size: 16"×100" (406 mmx 30.48 m)
Reinforcing Carrier:TIAB80oAL Series rolls can be reinforced with aluminum foil

The TIA Series can be provided with die-cutting into various shapes.
For different thicknesses or more information about thermally conductive materials,please contact our company.

Aluminum Foil High-Performance Thermal Conductive Acrylic Adhesive Tape Heat-Conductive Double-Sided Adhesive For Power Device

Factory profile

Ziitek company is a high-tech enterprise which dedicated to the R&D, manufacture and sales of the thermal interface materials (TIMs). We have rich experiences in this field which can support you the latest, most effective and one -step thermal management solutions. We have many advanced production equipments,full test equipments and fully automatic coating production lines which can support the production for high performance thermal silicone pad, thermal graphite sheet/ film, thermal double-sided tape, thermal insulation pad, thermal ceramic pad, phase change material, thermal grease etc. UL94 V-0, SGS and ROHS are compliant.

Aluminum Foil High-Performance Thermal Conductive Acrylic Adhesive Tape Heat-Conductive Double-Sided Adhesive For Power Device

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How do I request customized samples?

A: To request samples, you can leave us message on website, or just contact us by send email or call us.

Q: What's the thermal conductivity test method given on the data sheet ?

A: All the data in the sheet are actual tested.Hot Disk and ASTM D5470 are utilized to test the thermal conductivity.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
