Heat Dissipation Conductive Graphite Sheet High Purity And High Density Graphite Paper

Heat Dissipation Conductive Graphite Sheet High Purity And High Density Graphite Paper

Product Details:
Place of Origin: China
Brand Name: Ziitek
Certification: RoHS
Model Number: TIR312
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: 0.1-10USD/pcs
Packaging Details: 24*13*12cm carton
Delivery Time: 3-8 work days
Payment Terms: T/T
Supply Ability: 100000pcs/month
Contact Now
Detailed Product Description
Product Name: Heat Dissipation Conductive Graphite Sheet High Purity And High Density Graphite Paper Graphite Sheet Material: Synthetic Graphite
Feature: Ultra-high Thermal Conductivity Color: Black
Keywords: Conductive Graphite Sheet Recommended Operating Temperature (℃): -40~400
Highlight:

High Purity Graphite Sheet

,

High Density Graphite Sheet

,

Conductive Graphite Sheet Graphite Paper

Heat Dissipation Conductive Graphite Sheet High Purity And High Density Graphite Paper

Company Profile

Founded in 2006, Ziitek is a high-tech enterprise specializing in the research and development, manufacturing, and solution development of thermal conductive, heating, sealing, and EMI materials.

  • Production Capacity Layout: Headquartered in Dongguan, Guangdong Province, with production bases in Kunshan (Jiangsu Province), Taiwan, and Vietnam. The global layout ensures rapid delivery.
  • Application Fields: New energy vehicles, energy storage, high-performance chips, laptops, security, AI automation, 5G communication, and aerospace.
  • Core Products: TIF thermal conductive pads series, Z-Paster non-silicon thermal conductive pads series, TIG thermal paste, TIC phase change thermal material, TIS thermal insulating material, TIA thermal double-sided adhesive, TIR high thermal conductivity conductive material, TIF900 series EMI materials, K-heat heating products (PI heating film, silicone heating sheet, PTC heater), Z-foam foaming silicone sealing parts, and TCP thermal engineering plastics.
  • Quality Certification: IATF16949, ISO9001, ISO14001, QC080000; products comply with RoHS, REACH, and UL.

Ziitek gathers professional R&D engineers and implements a joint development model, deeply participating in the early design of customer products. We empower customers with technological innovation and are committed to becoming a trusted material strategic partner for global customers.

Product Description — TIR®300 Series

The TIR®300 Series is a flexible heat dissipation film with excellent thermal conductivity, made from polyimide (PI) film as raw material and processed by high-temperature carbonization and graphitization. The product has stable chemical properties and can quickly and uniformly transfer the heat generated by the heat source to the entire surface, effectively eliminating local hotspots. It is suitable for heat dissipation management of various electronic devices.

Key Features
  • Ultra-high thermal conductivity
  • Easy to process and compatible with various components
  • Broad operating temperature range
  • Ultra-thin and lightweight
Applications
  • Communication base stations
  • Laptop computers

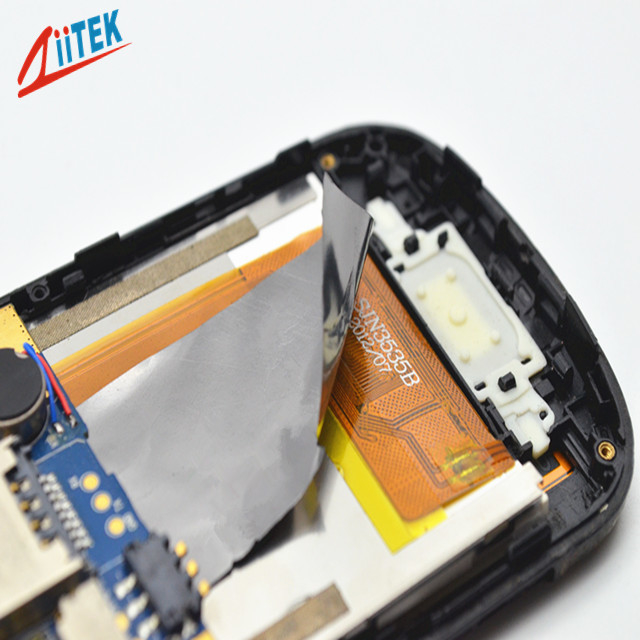

  • Handheld devices
  • Automotive electronics
Typical Properties of TIR®300 Series
Product Name TIR®312 TIR®317 TIR®325 TIR®332 TIR®340 TIR®370 Test Method
Colour Black Visual
Material Synthetic graphite ZKTM J024
Thickness (mm) 0.012 0.017 0.025 0.032 0.04 0.07 ASTM D374
Density (g/cm³) 1.9 2 1.8 1.9 1.8 1.8 ASTM D792
Recommended Operating Temperature (°C) -40 ∼ 400 ZKTM J025
Thermal Conductivity (W/m·K) (X-Y axis) 1600 1700 1500 1400 1200 1200 ASTM E1461
Product Specifications

Standard Thickness: 0.012 mm, 0.017 mm, 0.025 mm, 0.032 mm, 0.040 mm, 0.070 mm

The TIR® series is available in custom shapes and various forms. For other thicknesses or more information, please contact us.

TIR®300 Series graphite heat dissipation film product sample showing flexible black graphite sheet
Why Choose Us
  1. Our value message is "Do it right the first time, total quality control."
  2. Our core competency is thermal conductive interface materials.
  3. Competitive advantage products.
  4. Confidentiality agreement and business secret contract.
  5. Free sample offer.
  6. Quality assurance contract.
Packaging Details & Lead Time
  1. With PET film or foam for protection.
  2. Use paper card to separate each layer.
  3. Export carton inside and outside.
  4. Meet customers' requirements — customized.

Lead Time: Quantity (Pieces): 5000 — Estimated Time (days): To be negotiated.

FAQ
Q: Are you a trading company or a manufacturer?

A: We are a manufacturer in China.

Q: How do I find the right thermal conductivity for my application?

A: It depends on the wattage of the power source and the heat dissipation capability. Please tell us your detailed application and power requirements so we can recommend the most suitable thermal conductive material.

Q: Do you accept custom orders?

A: Yes, custom orders are welcome. Our custom elements include dimension, shape, color, and adhesive coating on one or both sides, or fiberglass coating. If you would like to place a custom order, please kindly provide a drawing or leave your custom order information.
