Double-Sided Thermally Adhesive Tape for LED Lightings PCB

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIA600FG

Payment & Shipping Terms:

Minimum Order Quantity:	1000rolls
Price:	0.1-10 USD/pcs
Packaging Details:	242312cm
Delivery Time:	3-6 work days
Payment Terms:	T/T
Supply Ability:	1000000rolls/month

Contact Now

Detailed Product Description

Color:	White	Adhesive Type:	Acrylic Adhesive
Thermal Conductivity:	0.8 W/mK	Keywords:	Thermal Adhesive Tape
Operating Temp:	-45℃ To 120℃	Application:	LED Light Led Strips
Highlight:	Double Sided Thermal Tape for PCB , LED PCB Thermally Adhesive Tape , Double Sided Thermally Adhesive Tape

LED Lightings PCB Double-Sided Thermally Adhesive Tape

The TIA™600FG Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors. This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect can be able to replace the method of lubricating grease and mechanical fixing.

TIA600FG-Series-Datasheet.pdf

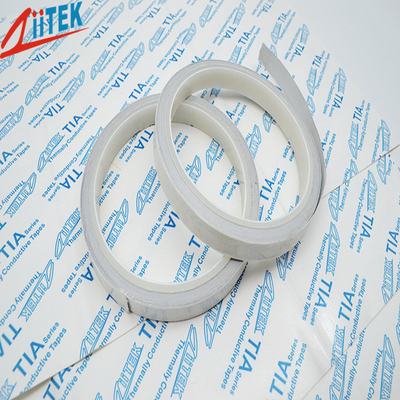

Double-Sided Thermally Adhesive Tape for LED Lightings PCB 0

Features

> Thermal Conductivity: 0.8W/mK
> High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive

Applications

> Fixed the radiator to the packaged chip.
> Fixed the radiator to the power supply circuit or vehicle control circuit board.
> Can replace hot melt glue, screw,fastener, etc.fixed mode.

Typical Properties of TIA™600FG Series
Product Name	TIA^TM600FG Series	Test Method
Color	White	Visual
Adhesive Type	Acrylic Adhesive	******
Backing Type	Fiberglass	******
Continuous Use Temp	-45℃ to 120℃	******
Thickness range	0.005"-0.010"	ASTM D374
Dielectric Breakdown Voltage	> 1000 Vac	ASTM D149
180° Peel Adhesion	> 800 g/inch (Steel, Immediate)	PSTC-1
180° Peel Adhesion	> 800 g/inch (Steel, Immediate)	PSTC-1
Holding Power 25℃/Hours	> 48 Hours	PSTC-7
Holding Power 80℃/Hours	> 48 Hours	PSTC-7
Fire rating	Equate 94 VO	UL E31100
Thermal Conductivity	0.8 W/mK	ASTM D5470

Product Specification

Product Thicknesses
TIA605:0.005"(0.127mm)

TIA606:0.006"(0.152mm)

TIA608:0.008"(0.203mm)

TIA610:0.010"(0.254mm)

TIA612:0.012"(0.304mm)

TIA615:0.015"(0.381mm)

TIA620:0.020"(0.508mm)

Product Sizes
40" x 100"(106mm x 30.48M) lndividual die cut shapes can be supplied. Please contact us for confirming.
TIA600 series rolls type can add with fiberglass film reinforced.

Company profile

Ziitek Electronic Material and Technology Ltd. provides product solutions to equipment product which generates too much heat affecting its high performance when using. Plus thermal products can control and manage heat to keep it cool to some extent.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

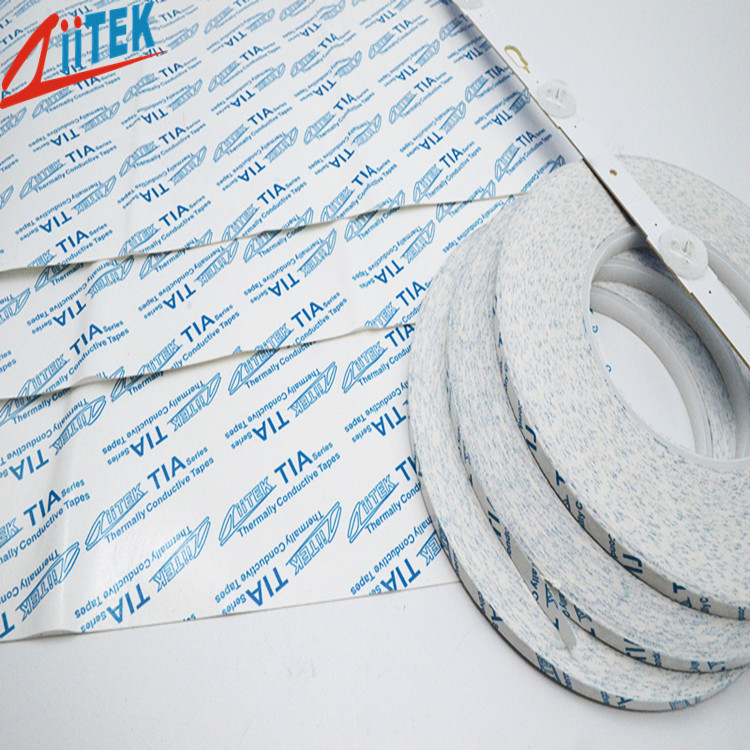

Double-Sided Thermally Adhesive Tape for LED Lightings PCB 1

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you accept custom orders ?

A:Yes , welcome to custom orders. Our custom elements including dimension , shape , color and coated on side or two sides adhesive or coated fiberglass. If you want to place a custom order , pls kindly offer a drawing or leave your custom order information .
