Name: Custom Thermal Conductive Pad 2mm 1mm 0.5mm 0.25mm For GPU CPU Laptop
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIF100-12-05ES thermal pad
Price: 4.10 USD
Availability: InStock

Home Products Silicone Thermal Pad

Custom Thermal Conductive Pad 2mm 1mm 0.5mm 0.25mm For GPU CPU Laptop

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL
Model Number:	TIF100-12-05ES thermal pad

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	252413cm canton
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000pcs/month

Contact Now

Detailed Product Description

Name:	In Stock Custom Thermal Conductive Pad 2mm 1mm 0.5mm 0.25mm Termal Pad For GPU CPU Laptop	Color:	Blue
Keyword:	Silicone Thermal Pad	Thickness:	0.020"(0.5mm)~0.200"(5.0mm)
Specific Gravity:	2.0 G/cc	Construction & Compostion:	Ceramic Filled Silicone Elastomer
Operating Temp:	-45~160℃	Thermal Conductivity:	1.2W/m-K
Highlight:	Laptop Thermal Conductive Pad , GPU Thermal Conductive Pad , Custom Thermal Conductive Pad

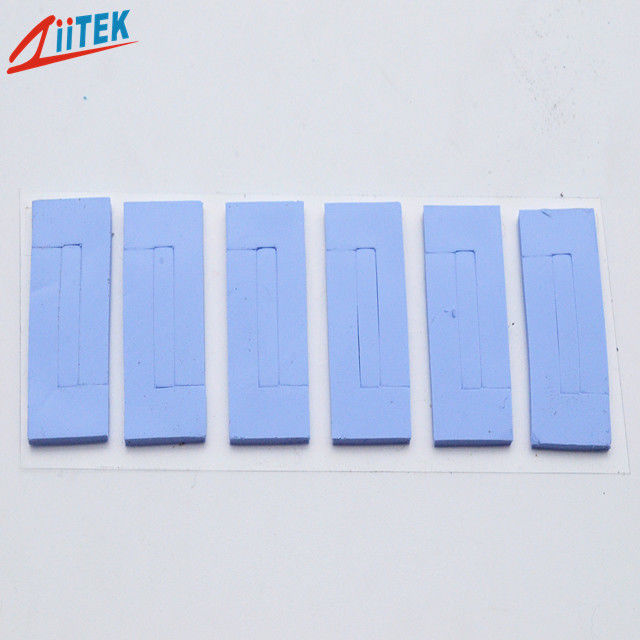

In Stock Custom Thermal Conductive Pad 2mm 1mm 0.5mm 0.25mm Termal Pad For GPU CPU Laptop

Company Profile

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

TIF100-12-05ES-Series-Datasheet.pdf

Custom Thermal Conductive Pad 2mm 1mm 0.5mm 0.25mm For GPU CPU Laptop 0

Product description

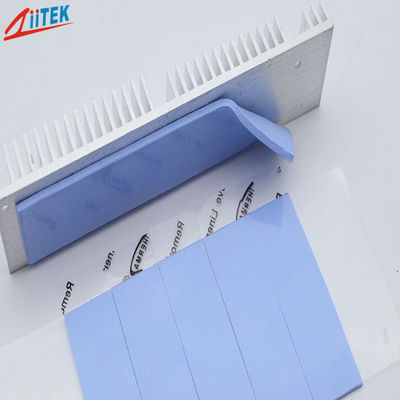

Ziitek TIF100-12-05UF Series thermally conductive interface materials are gap fillers reinforced one side with kepton; the other side with adhesive.They are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and viscoelastic feature make them ideal to coat very uneven surfaces. lts smooth, puncture-,tear-, wear-resistant reinforcement surface is perfect for reworking andplug-in devices.

< Good thermal conductive:1.2W/mK

< Naturally tacky needing no further

< Soft and Compressible for low stress applications
< Available in varies thickness

Applications

< mainboard/mother board

< CPU,Display card
< Notebook
< Power supply
< Heat pipe thermal solutions
< Memory Modules
< Mass storage devices

Typical Properties of TIF100-12-05ES
Product Name	TIF100-12-05ES Series
Colour	Blue
Construction & Compostion	Ceramic filled silicone elastomer
Specific gravity	2.0 g/cc
Thickness	0.020"(0.5mm)~0.200"(5.0mm)
Hardness	12±5 Shore 00
Dielectric constant@1MHz	4.5 MHz
Continuos Use Temp	-40 to 160℃
Dielectric Breakdown Voltage	≥5500 VAC
Thermal conductivity	1.2W/mK
Volume Resistivity	≥1.0*10^13 _Ohm-cm
Flame Rating	94-V0

Product Thicknesses:

0.020-inch(0.5mm)to 0.200”(5.0mm)

Product Sizes. 8" x 16"(203mm x406mm)

Individual die cut shapesand and custom thickness can be supplied.

Please contact us for confirming.

Storage condition

Safe disposal method does not require special protection.

The storage condition is low temperature and dry, away from openfire and away from direct sunlight.

For detailed method, please refer to the product material safety data sheet.

Custom Thermal Conductive Pad 2mm 1mm 0.5mm 0.25mm For GPU CPU Laptop 1

Our services

Online-service : 12 hours , Inquiry reply within fastest.

Working time: 8:00am - 5:30pm, Monday to Saturday (UTC+8).

Well-trained & experienced staff are to answer all your inquiries in English of course.

Standard Export Carton Or Marked With Customer's Information Or Customized.

Provide free samples

After-service: Even our products have passed strict inspection, if you find the parts can not work well, please show us the proof.

we will help you to deal with it and give you satisfactory solution.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: Do you offer free samples ?

A: Yes, we are willing to offer free sample.

Q: What is your terms of payment ?

A: Payment<=2000USD, T/T in advance. Paying in time and faithful for several months, we can apply other payment term for you, pay together in every month or 30 days.
