Name: High Temperature Thermal Insulation Materials Silicone Thermal insulation Pad for LED PCB Board
Brand: Dongguan Ziitek Electronical Material and Technology Ltd.
SKU: TIS109-01
Price: 4.10 USD
Availability: InStock

Home Products Thermally Conductive Electrical Insulator

High Temperature Thermal Insulation Materials Silicone Thermal insulation Pad for LED PCB Board

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	UL & RoHS
Model Number:	TIS109-01

Payment & Shipping Terms:

Minimum Order Quantity:	1000pcs
Price:	0.1-10 USD/pcs
Packaging Details:	242312CM
Delivery Time:	3-6 work days

Contact Now

Detailed Product Description

Products Name:	High Temperature Thermal Insulation Materials For Led PCB Board Silicone Thermal Insulation Pad	Keyword:	Thermal Insulation Pad
Application:	Chip Heat Sink	Continous Use Temp:	-45 To 180℃
Certificate:	UL & RoHS	Materials:	Ceramic Filled Silicone Elastomer / Fiberglass
Feature:	Low Thermal Resistance With High Voltage Isolation	Sample:	Sample Available
Highlight:	LED PCB Board Thermal Insulation Pad , High Temperature Thermal Insulation Materials , Silicone Thermal Insulation Pad

High Temperature Thermal Insulation Materials for Led PCB Board Silicone Thermal insulation Pad

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

TIS100-01-Serice-Datasheet.pdf

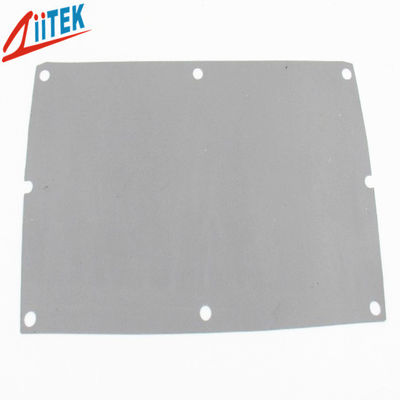

High Temperature Thermal Insulation Materials Silicone Thermal insulation Pad for LED PCB Board 0

The TIS™100-01 Series products are the high-efficiency insulation oneswith thermal conduction properties.The supplement of the insulationbase film made by silica gel into the heat-conduction material creates agreat effect on both the insulation and heat conduction.

Features:

> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications:

> Power conversion equipment
> Power semiconductors:To packages, MOSFETs & IGBTs
> Audio and Video components
> Automotive control units
> Motor controllers
> General high pressure interface

Typical Properties TIF^TM100-01 Series
Color	Gray	Visual
Construction & Composition	Ceramic filled silicone elastomer	******
Thickness range	0.15mm-0.45mm	ASTM D374
Specific Gravity	2.06 g/cc	ASTM D297
Tensile Strength	425 Kpsi	ASTM D412
Continuous Use Temperature	-45~180℃	******
Dielectric breakdown voltage	＞3500VAC	ASTM D149
Dielectric Constant@1MHz	5.5	ASTM D150
Volume Resistivity	＞4*10¹² Ohm-cm	ASTM D257
Thermal Conductivity	1.0W/mk	ISO22007.2.2
Flame Rating	94 V0	UL E331100

Product Thicknesses

TIS 106-01: 0.15mm

TIS 108-01: 0.20mm

TIS 109-01: 0.23mm

TIS 110-01: 0.25mm

TIS 112-01: 0.30mm

TIS 118-01: 0.45mm

Product Sizes
12" x 160"(304mm x 48.76M)
lndividual die cut shapes and customthickness can be supplied.
Pleasecontact us for confirming.
The product come standard with fiberglass reinforcement designated bythe suffix " FG".

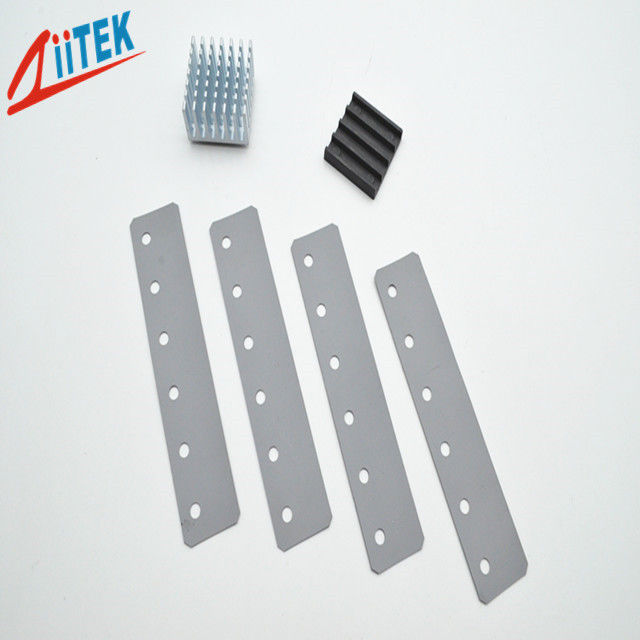

High Temperature Thermal Insulation Materials Silicone Thermal insulation Pad for LED PCB Board 1

Packaging Details & Lead time

The packaging of Thermal insulation Pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
