Thermal Conductive Graphite Sheet
Company profile
Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!
Certifications:
ISO9001:2015
ISO14001: 2004 IATF16949:2016
IECQ QC 080000:2017
UL
Products introduction

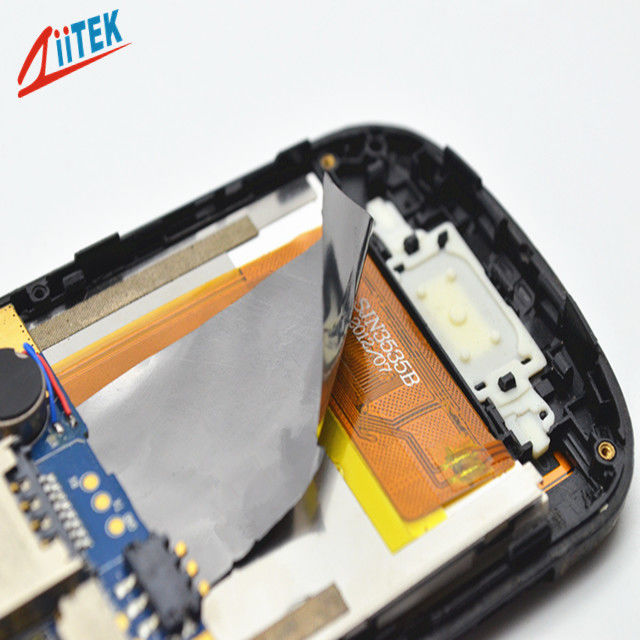

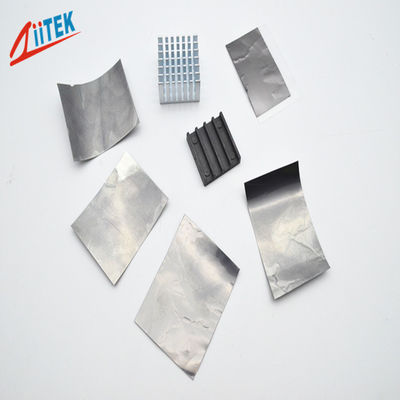

TIR™300 Series products are high performance thermal conductive interface materials. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus maximizes the ability of heat conduction.
TIR300C Series Datasheet-(E).pdf
Feature
● Good thermal conductive:17000W/mK
● Easy to assemble.
● Ultra-thin, light weight, non-toxic and environmentally friendly.
● RoHS Compliant
● Low thermal resistance
Application
● PDP,LCD TV,Set top box
● Laptop,Notebook,Projector
● Cooling components to the chassis of frame
● High speed mass storage drives
● Heat Sinking Housing at LED-lit BLU in LCD
| Typical Properties of TIR™300 series |
| Product Name |
TIR312 |
TIR317 |
TIR325 |
TIR332 |
TIR340 |
Test Method |
| Colour |
Black |
| Material |
Synthetic graphite |
| Thickness |
0.012 mm |
0.017 mm |
0.025 mm |
0.035 mm |
0.040 mm |
ASTM D751 |
| Total Thickness |
+/- 10% |
+/- 10% |
+/- 10% |
+/- 10% |
+/- 10% |
ASTM D751 |
| Density |
1.9 g/cc |
2.0 g/cc |
1.8 g/cc |
1.9 g/cc |
1.8 g/cc |
ASTM D297 |
| Hardness |
85 Shore A |
ASTM D2240 |
| Operation Temperature |
-40℃~ 400℃ |
****** |
| Volume Resistivity |
3.2X10³ Ohm-meter |
ASTM D257 |
| Typical Thermal Conductivit (In Z axis) |
4.2W/m-K |
5.0W/m-K |
6.0W/m-K |
8.0W/m-K |
12 W/m-K |
ASTM D5470 |
| Typical Thermal Conductivity (In X-Y axis) |
1600 W/m-K |
1700W/m-K |
1500W/m-K |
1400W/m-K |
1200W/m-K |
****** |
| Thermal Resistance @100psi |
0.028 (in²℃/W) |
0.030 (in²℃/W) |
0.035 (in²℃/W) |
0.045 (in²℃/W) |
0.060 (in²℃/W) |
ASTM D5470 |
Standard Sheets Sizes :
1.185mm x 220mm
2.195mm x 240mm
3.220mm x 320mm
TIR™300 series Individual die cut shapes can be supplied.
Consult the factory alternate thickness.
Packaging Details & Lead time
The packaging of graphite sheet
1.with PET film or foam-for protection
2. use Paper Card To Separate Each Layer
3. export carton inside and outside
4. meet with customers' requirement-customized
Lead Time :Quantity(Pieces):5000
Est. Time(days): To be negotiated
Ziitek Culture
Quality :
Do it right the first time, total quality control
Effectiveness:
Work precisely and thoroughly for effectiveness
Service:
Quick response, On time delivery and Excellent service
Team work:
Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.
FAQ:
Q: Are you trading company or manufacturer ?
A: We are manufacturer in China.
Q: How long is your delivery time?
A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra cost?
A: Yes, we could offer samples free of charge.
Q: How to find a right thermal conductivity for my applications
A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
