Double Sided Thermal Conductive Tape for LED Light Integrated Circuit Packaging and Battery Management

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIA810

Payment & Shipping Terms:

Minimum Order Quantity:	1000rolls
Price:	0.1-10 USD/pcs
Packaging Details:	242312cm
Delivery Time:	3-6 work days
Payment Terms:	T/T
Supply Ability:	1000000rolls/month

Contact Now

Detailed Product Description

Products Name:	Double Sided Thermal Conductive Tape For LED Light Integrated Circuit Packaging And Battery Management	Color:	White
Adhesive Type:	Acrylic Adhesive	Application:	LED Light
Keywords:	Double Sided Thermal Tape	Thermal Conductivity:	0.8 W/mK
Continuous Use Temp:	-45℃ To 120℃	Feature:	Fiberglass Adhesive Double Side
Highlight:	thermal conductive double-sided tape , Integrated Circuit Packaging Thermal Conductive Tape , Battery Management Thermal Conductive Tape

Double Sided Thermal Conductive Tape for LED Light Integrated Circuit Packaging and Battery Management

Ziitek Electronic Material and Technology Ltd. is a R&D and production company, we have many production lines and processing technology of thermal conductive materials, owns advanced production equipment and optimized process, can provide various thermal solutions for different applications.

The TIA™810 Series products are mostly used for bonding heat dissipation fins, microprocessors and other power consumption semiconductors.This type of adhesive tape possesses ultimate bonding strength with low thermal impedance, with which in effect

can be able to replace the method of lubricating grease and mechanical fixing.

TIA800-Series-Datasheet 1-REV01.pdf

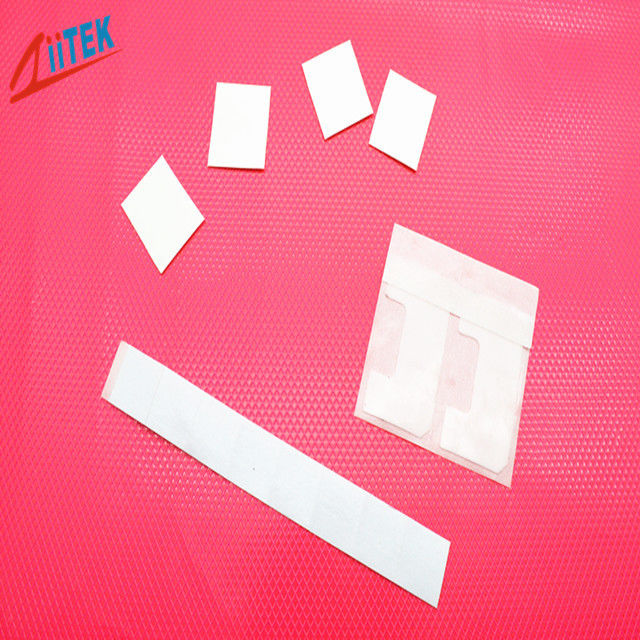

Double Sided Thermal Conductive Tape for LED Light Integrated Circuit Packaging and Battery Management 0

Features

> Thermal Conductivity: 0.8 W/mK
> High bond strength to a variety of surfaces double sided pressure sensitive adhesive tape
> High performance, thermally conductive acrylic adhesive

Applications

> Mount heat sink onto BGA graphic processor or drive processor.

> Mount heat spreader onto power converter PCB or onto motor control.

> Can be used instead of heat cureadhesive screwmounting or clip mounting.

Typical Properties of TIA™800 Series
Product Name	TIA^TM802	TIA^TM804	TIA^TM806	TIA^TM808	TIA^TM810	TIA^TM812	TIA^TM815	Test Method
Color	White							Visual
Adhesive Type	Acrylic Adhesive							******
Backing Type	N/A							******
Continuous Use Temp	-45℃ to 120℃							******
Thickness	0.019" 0.05mm	0.004" 0.101mm	0.006" 0.152mm	0.008" 0.203mm	0.010" 0.254mm	0.012" 0.304mm	0.015" 0.381mm	ASTM D374
Voltage Breakdown	> 600Vac	> 1200Vac	> 1800Vac	> 2500 Vac	> 2700 Vac	> 3000 Vac	> 4000 Vac	ASTM D149
Thermal Conductivity	0.9 W/mK							ASTM D5470
180° Peel Adhesion	>1200 g/inch (Steel Immediate)							PSTC-1
180° Peel Adhesion	> 1200 kg/inch(Steel after 24 hrs)							PSTC-1
Holding Power 25℃/Hours	> 48 Hours							PSTC-7
Holding Power 80℃/Hours	> 48 Hours							PSTC-7

Standard Thicknesses:

0.0019"(0.05 mm)
0.004"(0.101mm)
o.006"(0.152mm)
0.008"(O.203mm)
0.010"(0.254mm)
0.012"(0.304mm)
0.015"(0.381mm)

Consult the factory alternate thickness.

Standard Sizes:
16" x 100'(406mm x 30.48M)
Individual die cut shapes can be supplied.

Reinforcement:
TIA™800 Series rolls type can add with fiberglass reinforced.

Ziitek Culture

Quality :

Do it right the first time, total quality control

Effectiveness:

Work precisely and thoroughly for effectiveness

Service:

Quick response, On time delivery and Excellent service

Team work:

Complete teamwork, including sales team, Marketing team, engineering team, R&D team, Manufacturing team, logistics team. All is for supporting and servicing a satisfy service for customers.

FAQ:

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.

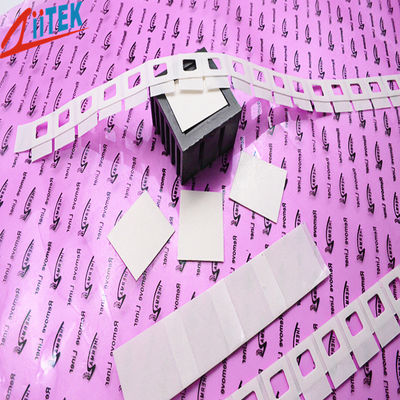

Double Sided Thermal Conductive Tape for LED Light Integrated Circuit Packaging and Battery Management 1
