Motor Transformer Electrical Insulation Material Thermal Insulation Materials

Product Details:

Place of Origin:	China
Brand Name:	Ziitek
Certification:	RoHS
Model Number:	TIS109-05

Payment & Shipping Terms:

Minimum Order Quantity:	1000 pcs
Price:	0.1-10 USD/PCS
Packaging Details:	252413mm
Delivery Time:	3-8 work days
Payment Terms:	T/T
Supply Ability:	100000 pcs/month

Contact Now

Detailed Product Description

Products Name:	Motor Transformer Electrical Insulation Material Thermal Insulation Materials	Thickness:	0.23mm
Keywords:	Thermal Insulation Materials	Feature:	Resistant To Tears And Punctures
Compliance:	RoHS	Color:	Blue
Thermal Conductivity:	1.0W/mK
Highlight:	Motor Transformer Thermal Insulation Materials , Motor Transformer Electrical Insulation Material , Electrical Insulation Thermal Insulation Materials

Motor Transformer Electrical Insulation Material Thermal Insulation Materials

The TIS™109-05 Series products are the high-efficiency insulation ones with thermal conduction properties. The supplement of the insulation base film made by silica gel into the heat-conduction material creates a great effect on both the insulation and heat conduction.

TIS100-05-Serice-Datasheet-REV01.pdf

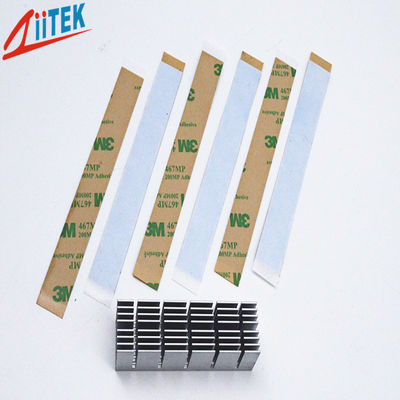

Motor Transformer Electrical Insulation Material Thermal Insulation Materials 0

Features

> Highly compliant surface characteristic with high thermal conductivity
> High thermal conductive and High dielectric strength
> Low thermal resistance with high voltage isolation
> Resistant to tears and punctures

Applications

> RDRAM memory modules
> Micro heat pipe thermal solutions
> Automotive engine control units
> Telecommunication hardware
> Handheld portable electronics
> Semiconductor automated test equipment (ATE)
> CPU

Typical Properties of TIS100-05 series
Product Name	TIS109-05	TIS112-05	TIS118-05	Test Method
Color	blue			Visual
Construction &Compostion	Ceramic filled silicone elastomer / Fiberglass			*******
Composite Thickness	0.23mm	0.3mm	0.45mm	ASTM D374
Hardness	50 Shore 00			ASTM D751
Specific Gravity	1.72g/cc			ASTM D297
Tensile Strength	425 Kpsi			ASTM D412
Continuous Use Temp	-45 to 180℃			*******
Dielectric Breakdown Voltage	>3500 VAC			ASTM D149
Dielectric Constant	5.5 MHz			ASTM D150
Volume Resistivity	4.0X10¹³ Ohm-meter			ASTM D257
Flame Rating	94 V0			E331100
Thermal conductivity	1.0 W/mK			ASTM D5470

Standard Thicknesses:
0.009"(0.228mm)

0.012"(0.304mm)

0.018"(0.457mm)
Consult the factory alternate thickness.

Standard Sizes:
12" x 160"(304mm x 48.76M)
Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.

Packaging Details & Lead time

The packaging of Insulator Silicone Pad

1.with PET film or foam-for protection

2. use Paper Card To Separate Each Layer

3. export carton inside and outside

4. meet with customers' requirement-customized

Lead Time :Quantity(Pieces):5000

Est. Time(days): To be negotiated

Company profile

Ziitek Electronic Material and Technology Ltd. is dedicated to developing composite thermal solution and manufacturing superior thermal interface materials for competitive market. Our vast experience allows us to assist our customers best in thermal engineering field.We serve customers with customized products, full product lines and flexible production, which makes us be the best and reliable partner of you. Let's make your design more perfect!

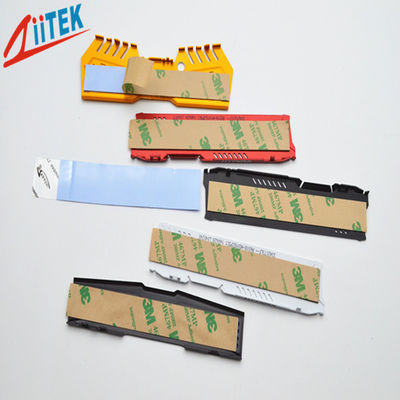

Motor Transformer Electrical Insulation Material Thermal Insulation Materials 2

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer in China.

Q: How long is your delivery time?

A: Generally it is 3-7 work days if the goods are in stock. or it is 7-10 work days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra cost?

A: Yes, we could offer samples free of charge.

Q: How to find a right thermal conductivity for my applications

A: It depends on the watts of power source , ability of heat dissipation. Please tell us your detailed applications and the power, so we can recommend most suitable thermal conductive materials.
